3.3.6 Symbols

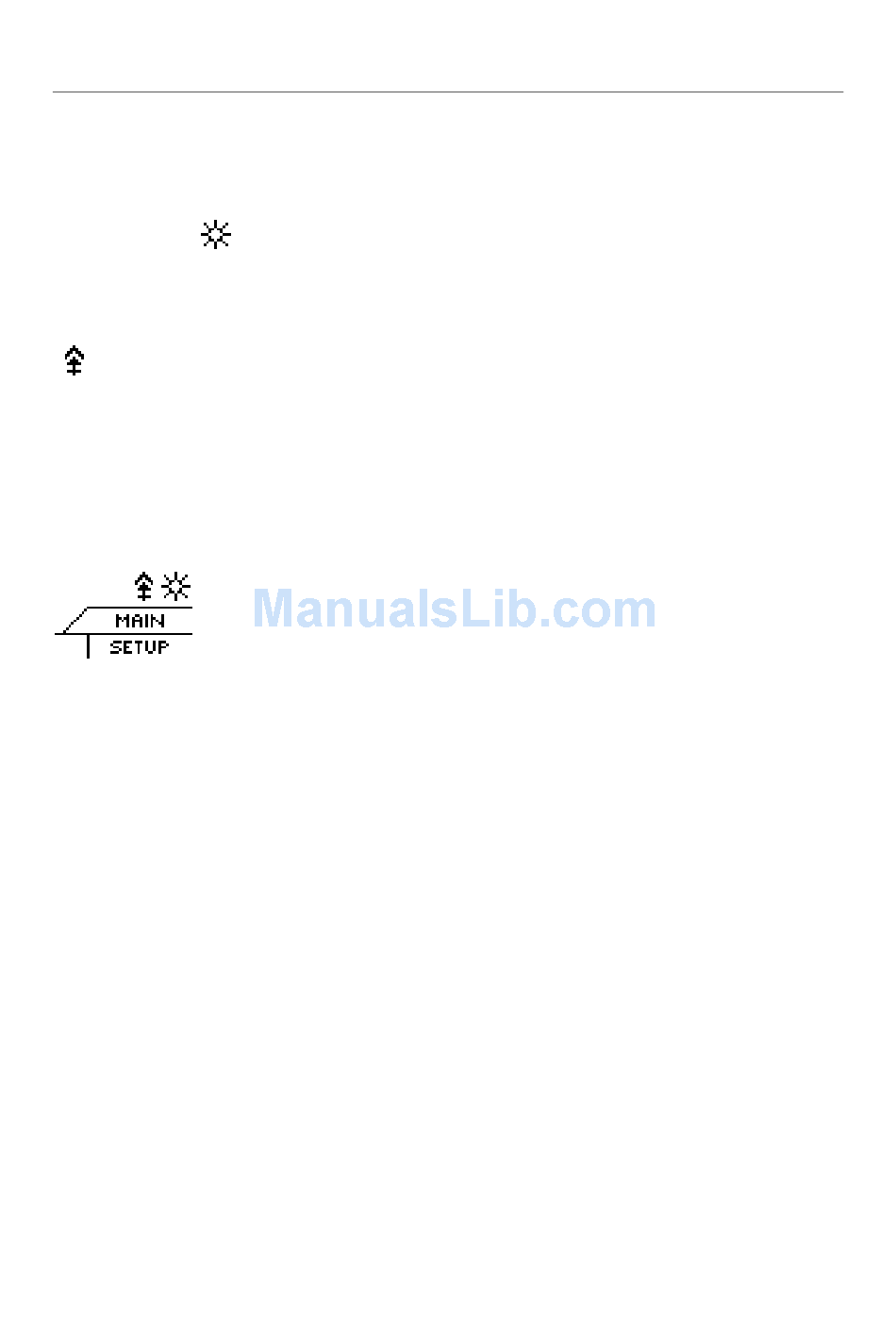

Signal > threshold display
The lamp symbol
threshold is exceeded.
Overdrive display
This symbol flashes when the IF section is overdriven. Level measurement is possible without
overdriving to approx. 85 dBµV (at ATT ON 113 dBµV). If the attenuation is set on 'ATT AUTO', the
30-dB attenuator switches on not before the overdriving limit of approx. 85 dBµV and with a hysteresis
of approx. 7 dB it switches off again.
Note:
The overdrive indication is only possible with IF sections that are shown as IF SECTION.2 in the RX-
CONF:TEST menu.
Note:
This display is obscured by the menu names when lower-level menus are selected..
Measuring mode display
At the position of the overdrive display, the currently active measuring mode of the unit may also be
displayed alternatively. The relevant settings are available via the menu RX-CONF – Measure.
No display
P
M C
M P
4052.2000.02
only appears above the menu name in the working area if the receive signal
The measuring time has been set to DEFAULT and as measuring
mode continuous (CONTIN) measurement has been selected.
The measuring time has been set to DEFAULT and as measuring
mode periodic (PERIODIC) measurement has been selected.
A specific measuring time has been set and as measuring mode
continuous (CONTIN) measurement has been selected.
A specific measuring time has been set and as measuring mode
periodic (PERIODIC) measurement has been selected.
