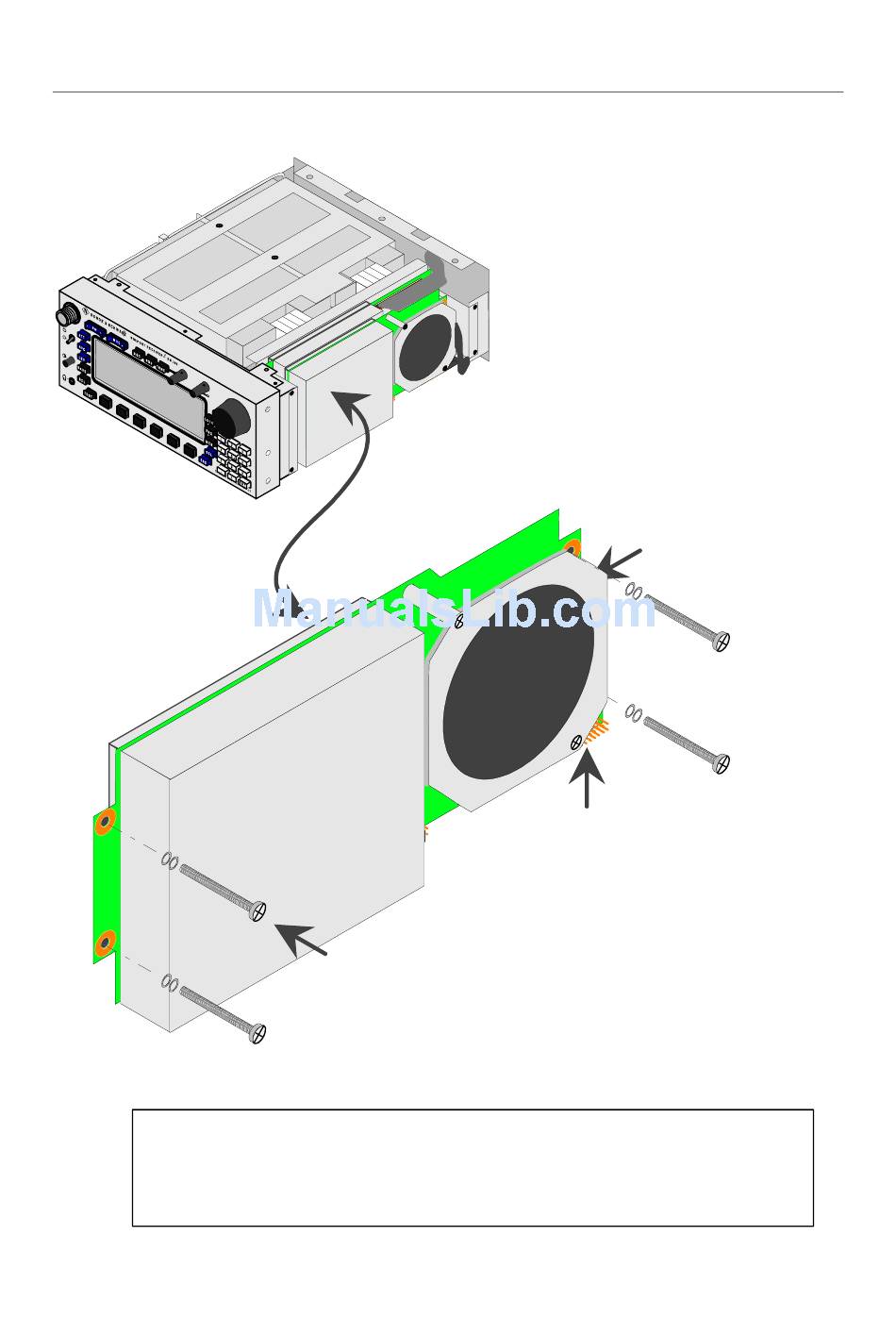

5.2.4.2 DC/DC converter
Note:
For easy handling pull off the
plugs at the motherboard
instead.
4052.2000.02
1
1
Screw out screws
(4 pieces).
5.6
Maintenance and Troubleshooting
2
3
3
Pull off plug
(see note).
Attention:
All pins must be in the plug
and none of them must be
bent when the module is
installed.
2
Pull off plug
(see note).
E-7
