(3) Detaching and refitting the main PWB

1. Remove the FAX control PWB, if

installed (see page 1-5-40).

2. Remove the right rear cover, right cover

and right lower cover (see page 1-5-6).

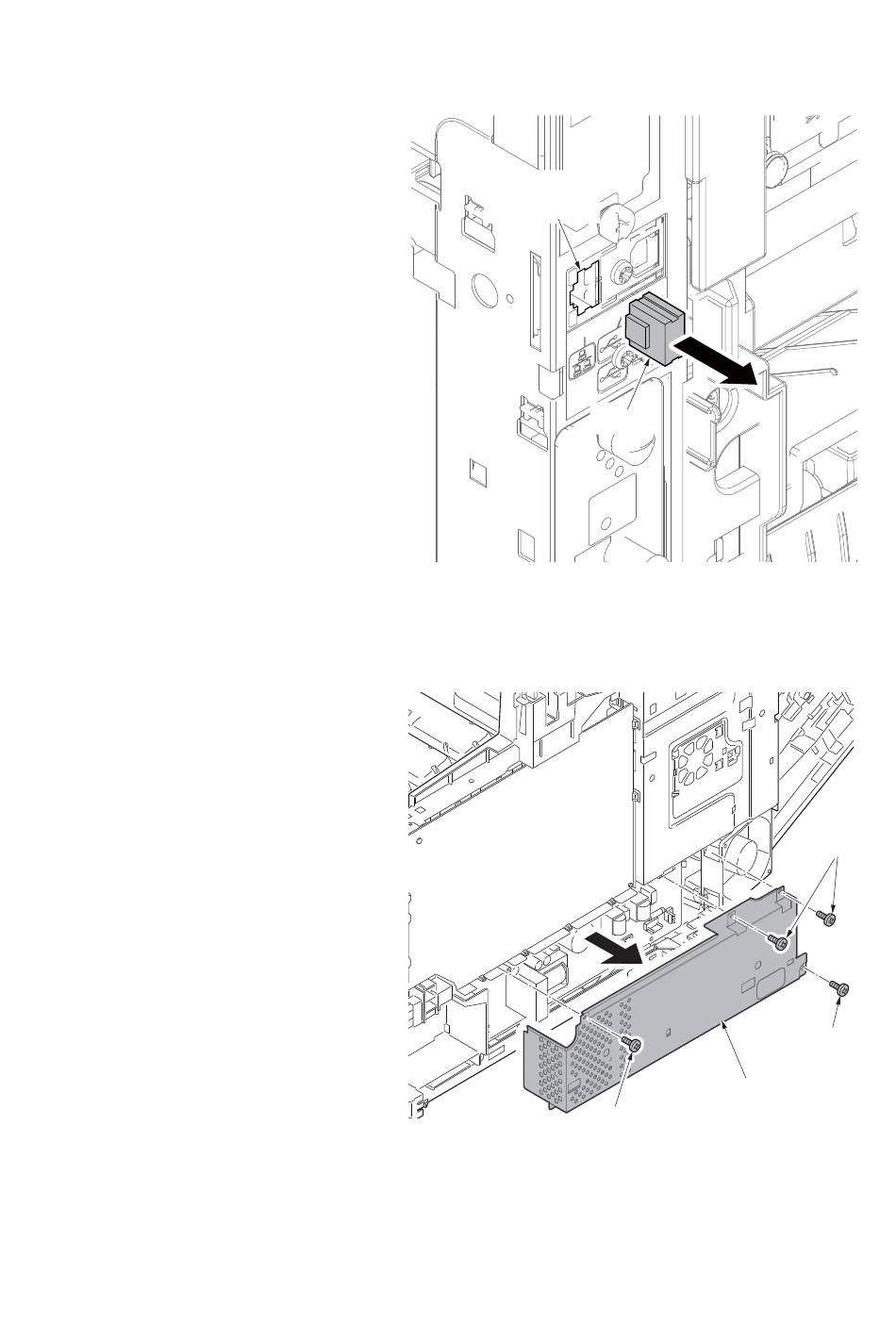

3. Remove the cap of the network

4. Remove four screws and then remove

the power source shield.

*: When the power source shield is reat-

tached, each screw of two types (A and

B) should be secured at the original posi-

Figure 1-5-44

Figure 1-5-45

Power source shield
