(3) Detaching and refitting the image scanner unit
Procedure
(Detach the covers)

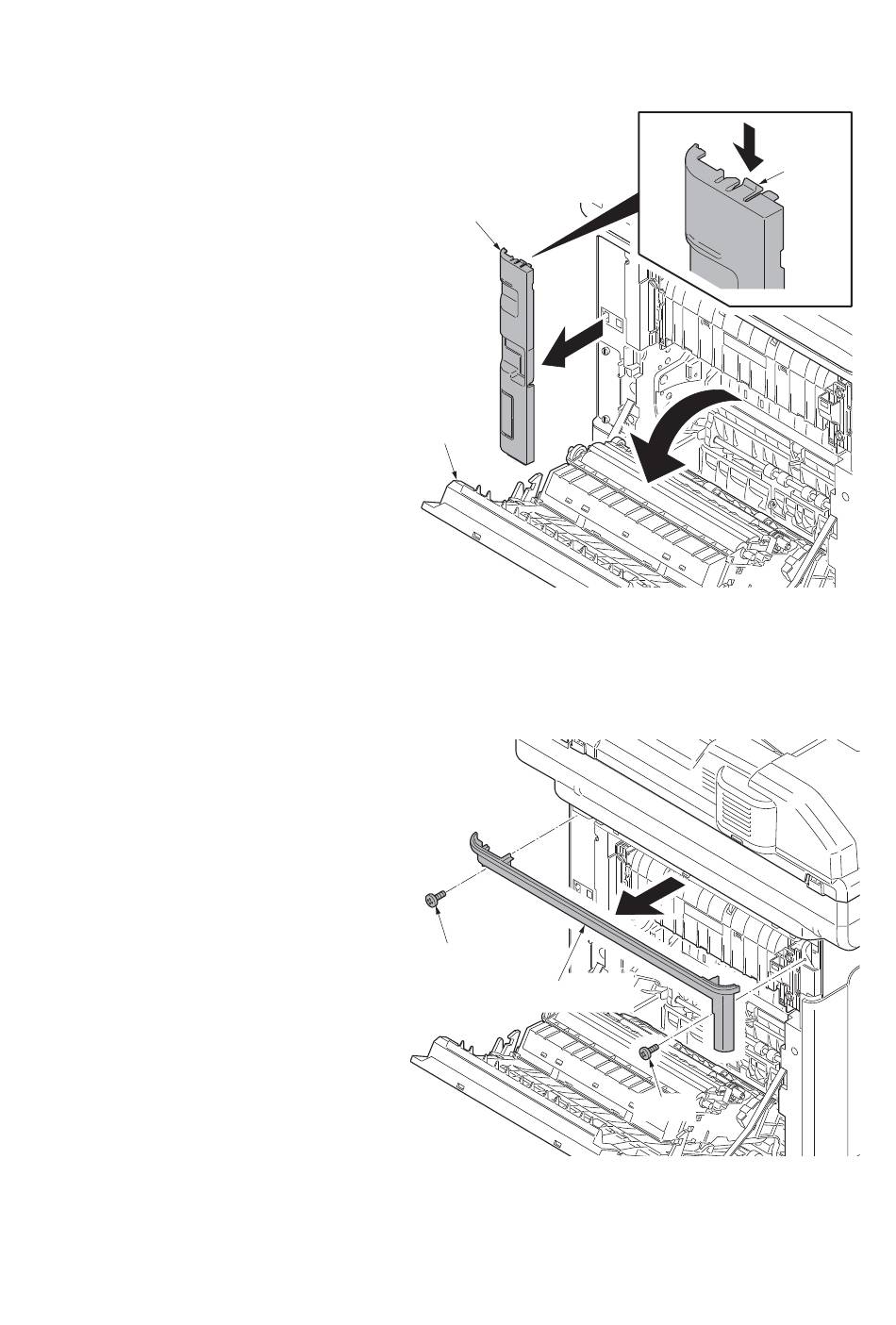

1. Open the paper conveying unit.
2. Release the hook and then remove the
IF cover.
3. Remove two screws and then remove
the rear uppercover.
IF cover
Paper
conveying
unit
Screw
Rear upper cover
1-5-56
Figure 1-5-87
Screw
Figure 1-5-88
2PZ-1
Hook
