1-5-2 Outer covers

(1) Detaching and refitting the rear upper cover, right upper cover, left upper cover

and front cover

1. Open the paper conveying unit.

2. Release the hook and then remove the

3. Remove two screws and then remove

the rear upper cover.

Rear upper cover

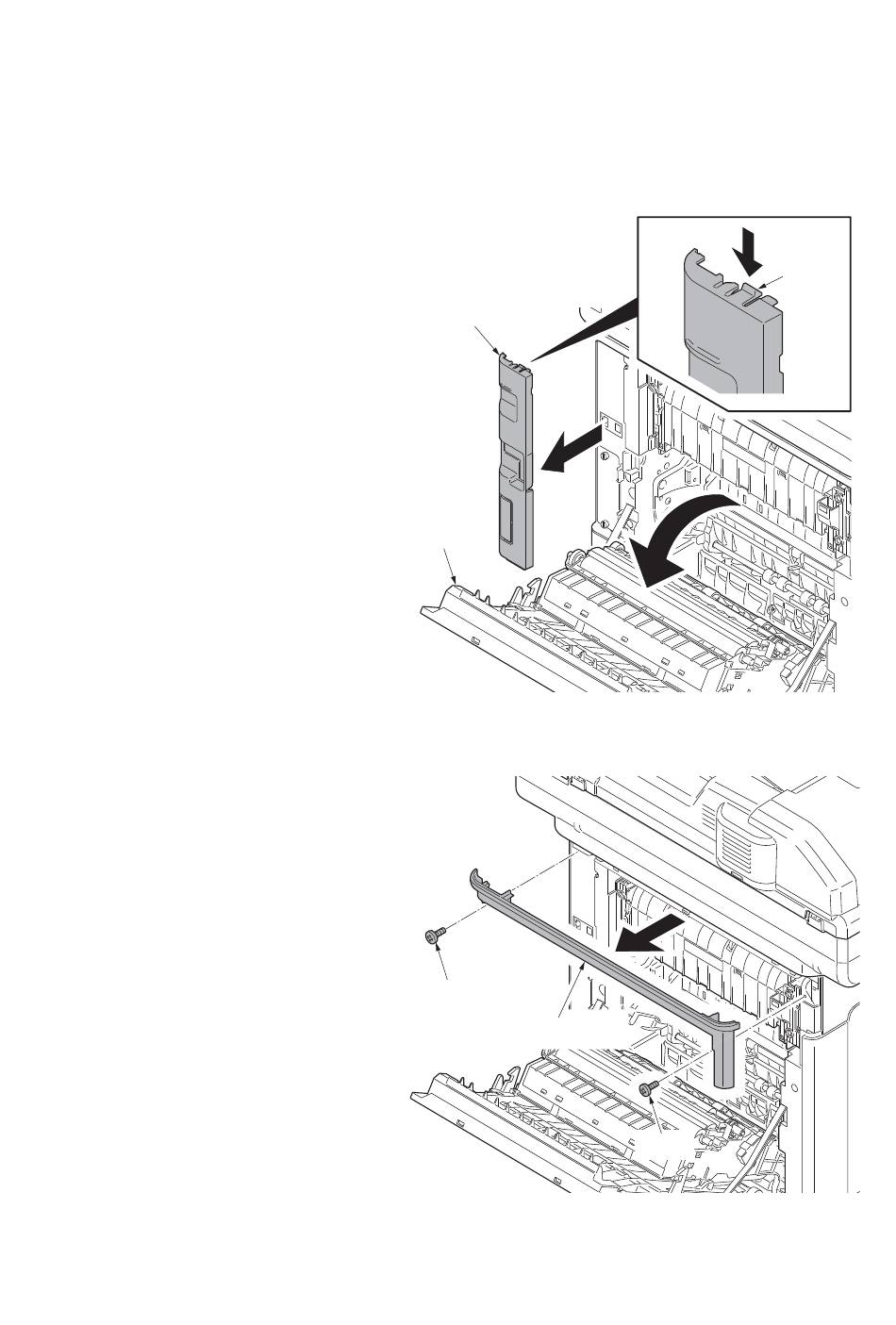

Figure 1-5-3

Figure 1-5-4
