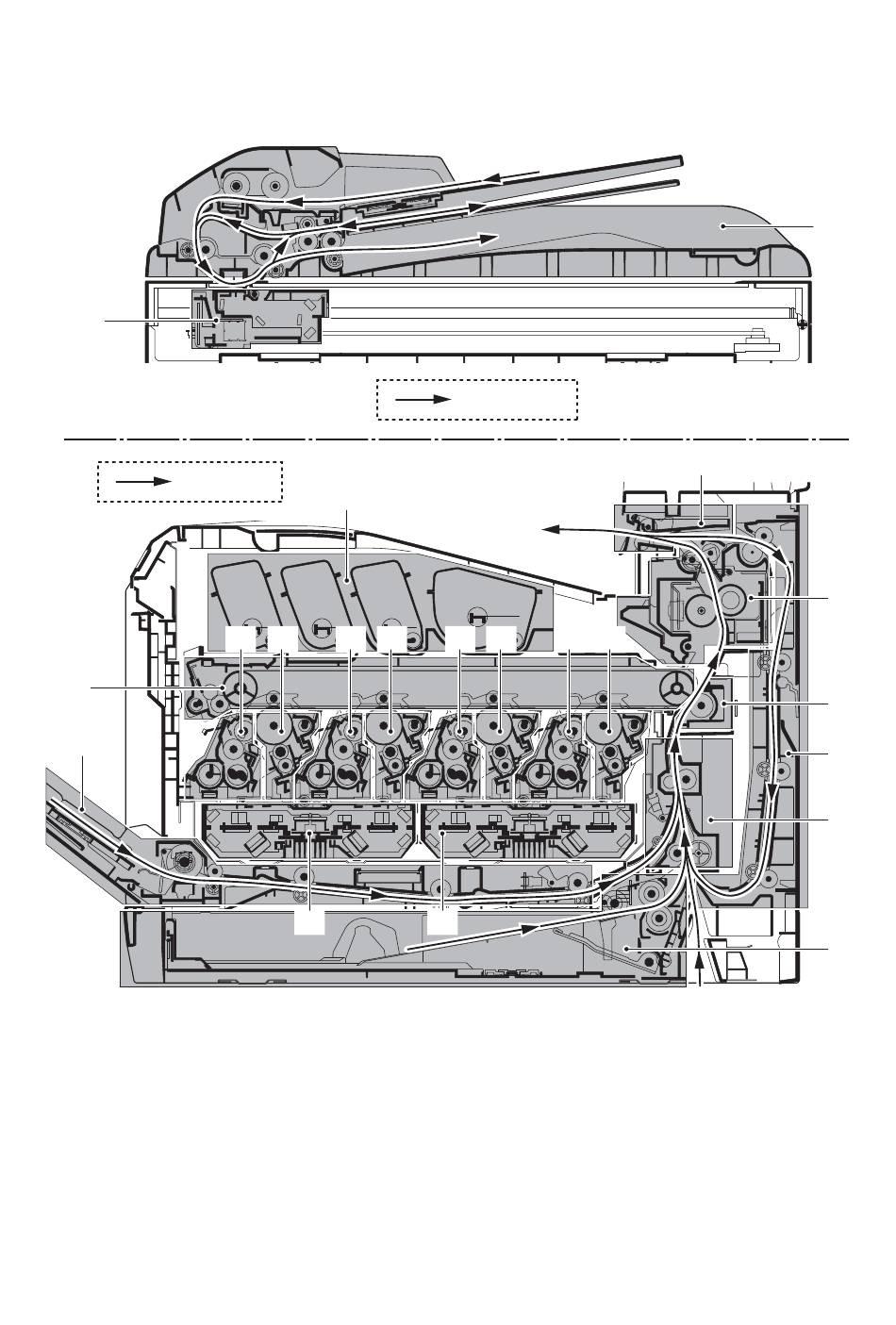

1-1-3 Machine cross section

20
Paper path
15
2
1. Cassette paper feed section
2. MP tray paper feed section
3. Paper conveying section
4. Laser scanner unit KM
5. Laser scanner unit CY
6. Drum unit K
7. Drum unit M
8. Drum unit C
14
13 9 12 8
5
Figure 1-1-5
9. Drum unit Y
10. Developing unit K
11. Developing unit M
12. Developing unit C
13. Developing unit Y
14. Toner container section
15. Primary transfer section
Original path
11 7 10
4
16. Secondary transfer/Separa-
17. Fuser section
18. Eject/Feed shift sections
19. Duplex section
20. Image scanner unit
21. Document processor
1-1-10
18
6
tion sections
2PZ
21
17
16
19
3
1
