17
OTHER FUNCTIONS
■ Using the DTMF memory (Continued)

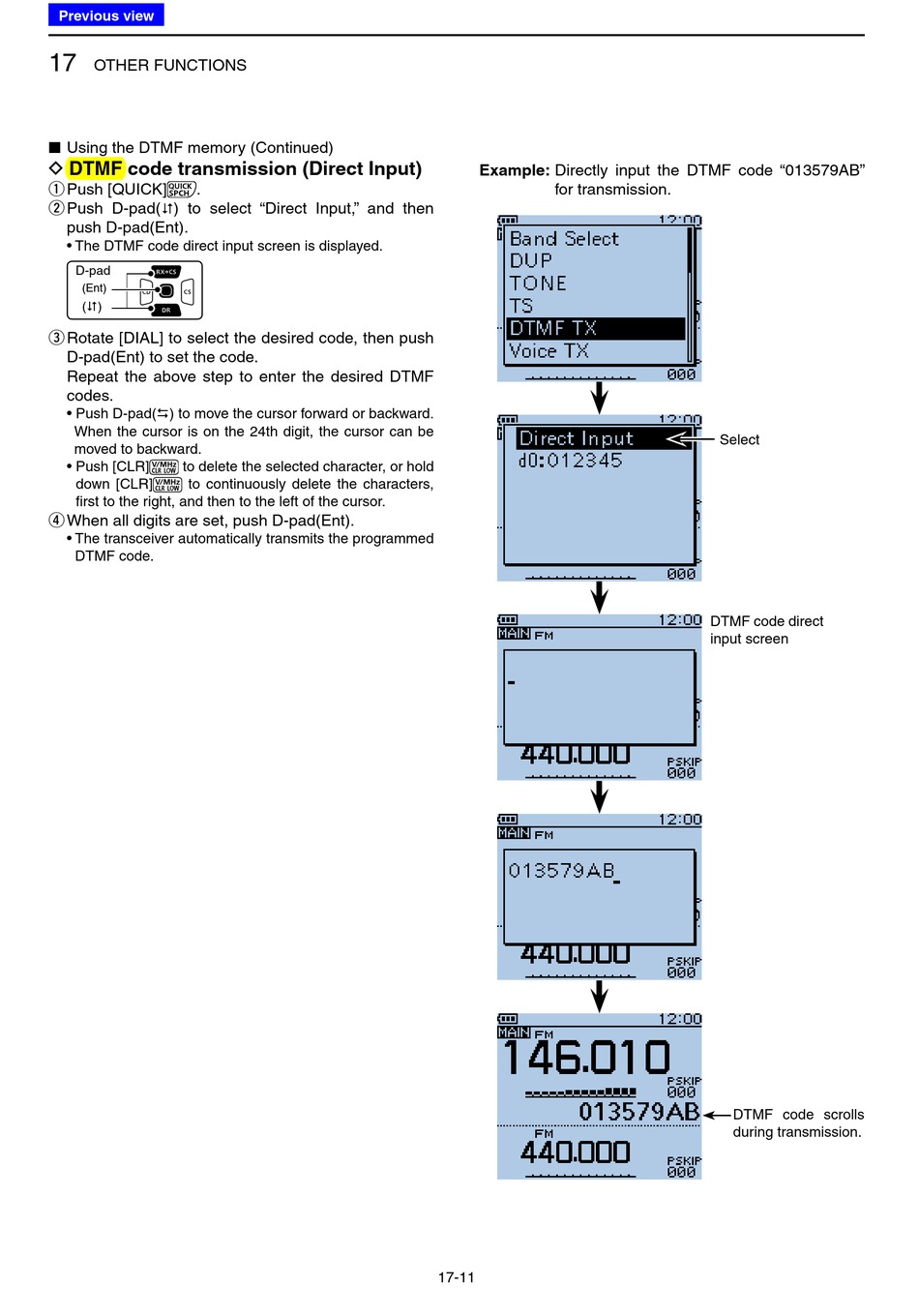

D DTMF code transmission (Direct Input)

q Push [QUICK] .
w Push D-pad( ) to select "Direct Input," and then

push D-pad(Ent).
• The DTMF code direct input screen is displayed.
D-pad
(Ent)
( )
e Rotate [DIAL] to select the desired code, then push
D-pad(Ent) to set the code.
Repeat the above step to enter the desired DTMF
codes.
• Push D-pad() to move the cursor forward or backward.
When the cursor is on the 24th digit, the cursor can be
moved to backward.
• Push [CLR] to delete the selected character, or hold
down [CLR] to continuously delete the characters,
first to the right, and then to the left of the cursor.
r When all digits are set, push D-pad(Ent).
• The transceiver automatically transmits the programmed
DTMF code.
Example: Directly input the DTMF code "013579AB"
for transmission.
17-11
Select
DTMF code direct
input screen
DTMF code scrolls
during transmission.
