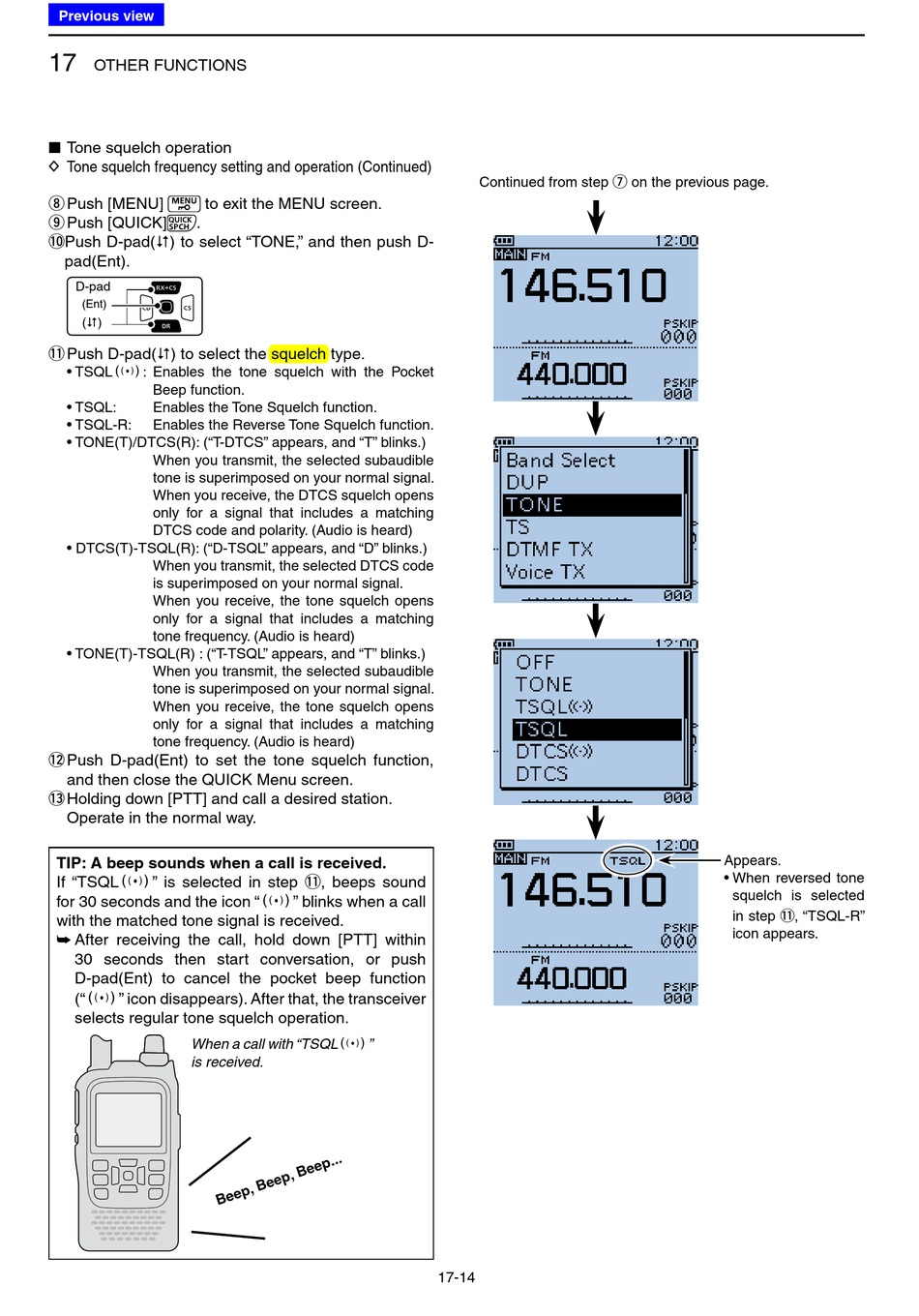

17
OTHER FUNCTIONS
■ Tone squelch operation
D Tone squelch frequency setting and operation (Continued)
i Push [MENU] to exit the MENU screen.
o Push [QUICK] .
!0 Push D-pad() to select "TONE," and then push D-
pad(Ent).
D-pad
(Ent)
( )
!1 Push D-pad() to select the squelch type.
• TSQLS: Enables the tone squelch with the Pocket
Beep function.
• TSQL: Enables the Tone Squelch function.
• TSQL-R: Enables the Reverse Tone Squelch function.
• TONE(T)/DTCS(R): ("T-DTCS" appears, and "T" blinks.)
When you transmit, the selected subaudible
tone is superimposed on your normal signal.
When you receive, the DTCS squelch opens
only for a signal that includes a matching
DTCS code and polarity. (Audio is heard)
• DTCS(T)-TSQL(R): ("D-TSQL" appears, and "D" blinks.)
When you transmit, the selected DTCS code
is superimposed on your normal signal.
When you receive, the tone squelch opens
only for a signal that includes a matching
tone frequency. (Audio is heard)
• TONE(T)-TSQL(R) : ("T-TSQL" appears, and "T" blinks.)
When you transmit, the selected subaudible
tone is superimposed on your normal signal.
When you receive, the tone squelch opens
only for a signal that includes a matching
tone frequency. (Audio is heard)
!2 Push D-pad(Ent) to set the tone squelch function,
and then close the QUICK Menu screen.
!3 Holding down [PTT] and call a desired station.
Operate in the normal way.
TIP: A beep sounds when a call is received.
If "TSQLS" is selected in step !1 , beeps sound
for 30 seconds and the icon "S" blinks when a call
with the matched tone signal is received.
➥ After receiving the call, hold down [PTT] within
30 seconds then start conversation, or push
D-pad(Ent) to cancel the pocket beep function
("S" icon disappears). After that, the transceiver
selects regular tone squelch operation.
When a call with "TSQLS"
is received.
Continued from step u on the previous page.
17-14
Appears.
• When reversed tone
squelch is selected
in step ! 1 , "TSQL-R"
icon appears.
