1

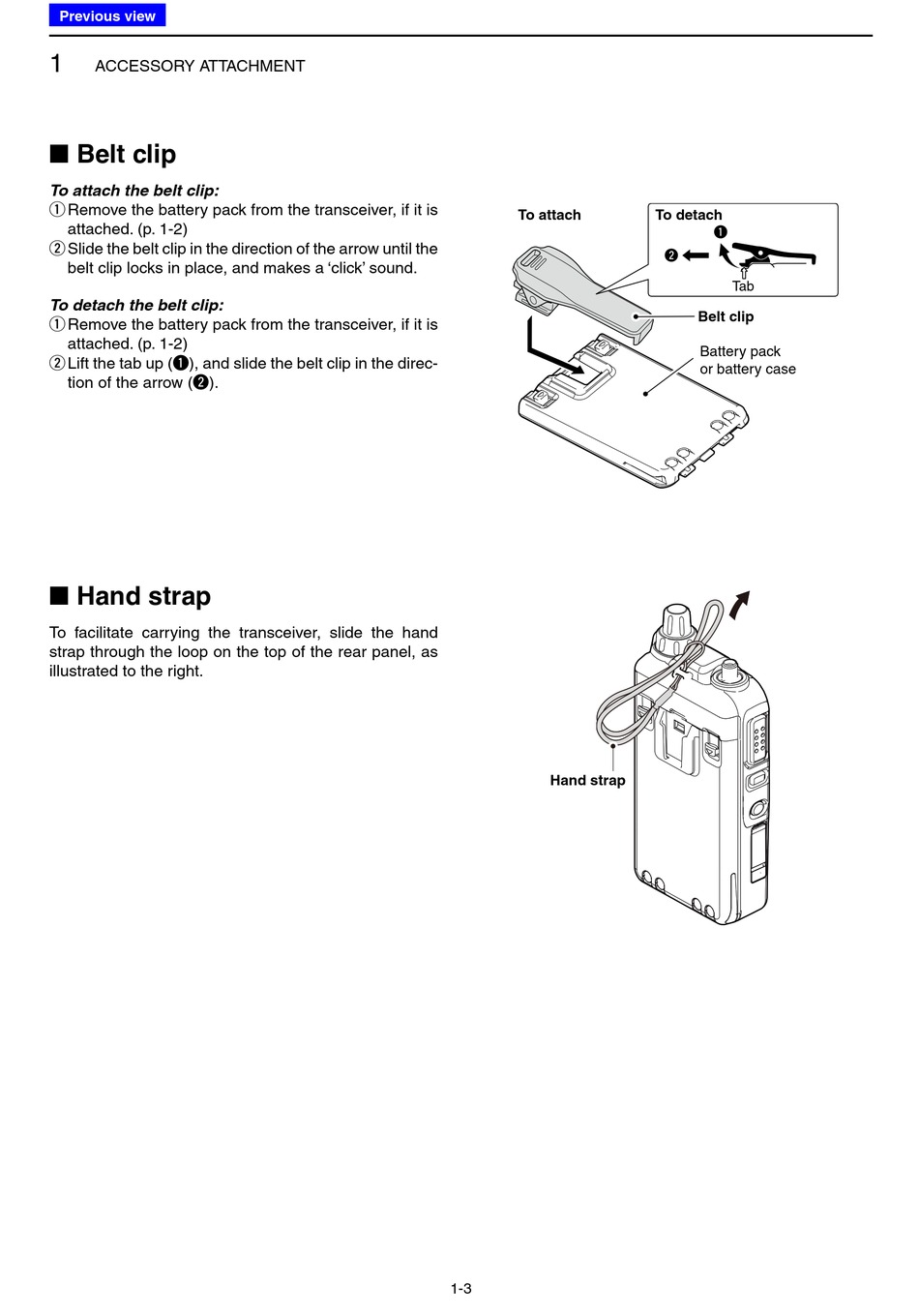

ACCESSORY ATTACHMENT

■ Belt clip

To attach the belt clip:
q Remove the battery pack from the transceiver, if it is
attached. (p. 1-2)
w Slide the belt clip in the direction of the arrow until the
belt clip locks in place, and makes a 'click' sound.
To detach the belt clip:
q Remove the battery pack from the transceiver, if it is
attached. (p. 1-2)
w Lift the tab up (q), and slide the belt clip in the direc-
tion of the arrow (w).

■ Hand strap

To facilitate carrying the transceiver, slide the hand
strap through the loop on the top of the rear panel, as
illustrated to the right.
To attach
Hand strap
1-3
To detach
q
w
Tab
Belt clip
Battery pack
or battery case
