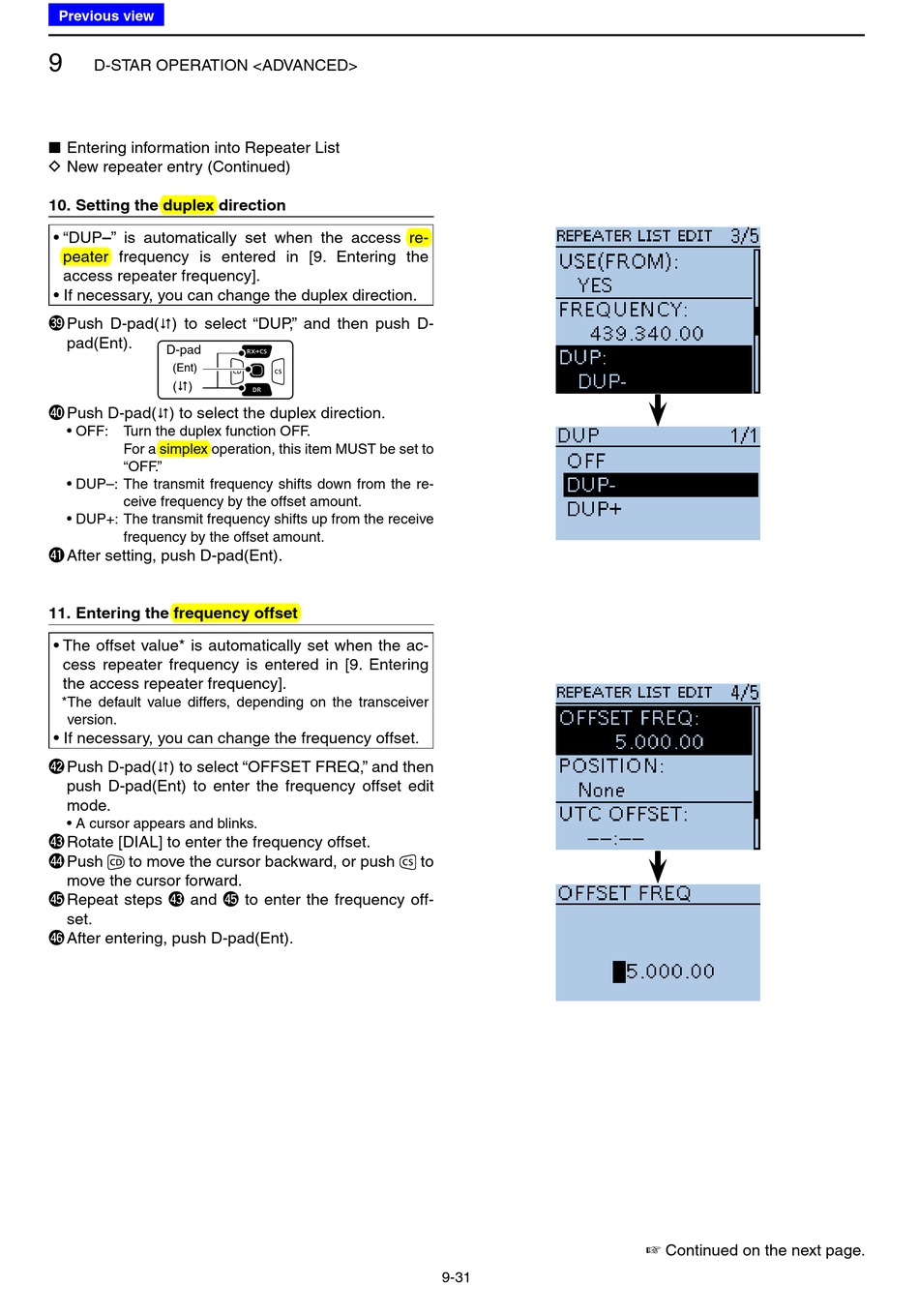

Icom ID-51A Advanced Manual page 126

Previous view
9
D-STAR OPERATION <ADVANCED>
■ Entering information into Repeater List
D New repeater entry (Continued)
10. Setting the duplex direction
• "DUP–" is automatically set when the access re-
peater frequency is entered in [9. Entering the
access repeater frequency].
• If necessary, you can change the duplex direction.
#9 Push D-pad( ) to select "DUP," and then push D-

pad(Ent).
D-pad
(Ent)
( )
$0 Push D-pad( ) to select the duplex direction.

• OFF: Turn the duplex function OFF.
For a simplex operation, this item MUST be set to
"OFF."
• DUP–: The transmit frequency shifts down from the re-
ceive frequency by the offset amount.
• DUP+: The transmit frequency shifts up from the receive
frequency by the offset amount.
$1 After setting, push D-pad(Ent).
11. Entering the frequency offset
• The offset value* is automatically set when the ac-
cess repeater frequency is entered in [9. Entering
the access repeater frequency].
* The default value differs, depending on the transceiver
version.
• If necessary, you can change the frequency offset.
$2 Push D-pad( ) to select "OFFSET FREQ," and then

push D-pad(Ent) to enter the frequency offset edit
mode.
• A cursor appears and blinks.
$3 Rotate [DIAL] to enter the frequency offset.
$4 Push to move the cursor backward, or push
move the cursor forward.
$5 Repeat steps $3 and $5 to enter the frequency off-
set.
$6 After entering, push D-pad(Ent).
to
9-31
☞ Continued on the next page.
