16
MENU SCREEN
■ GPS items (Continued)
[MY] screen

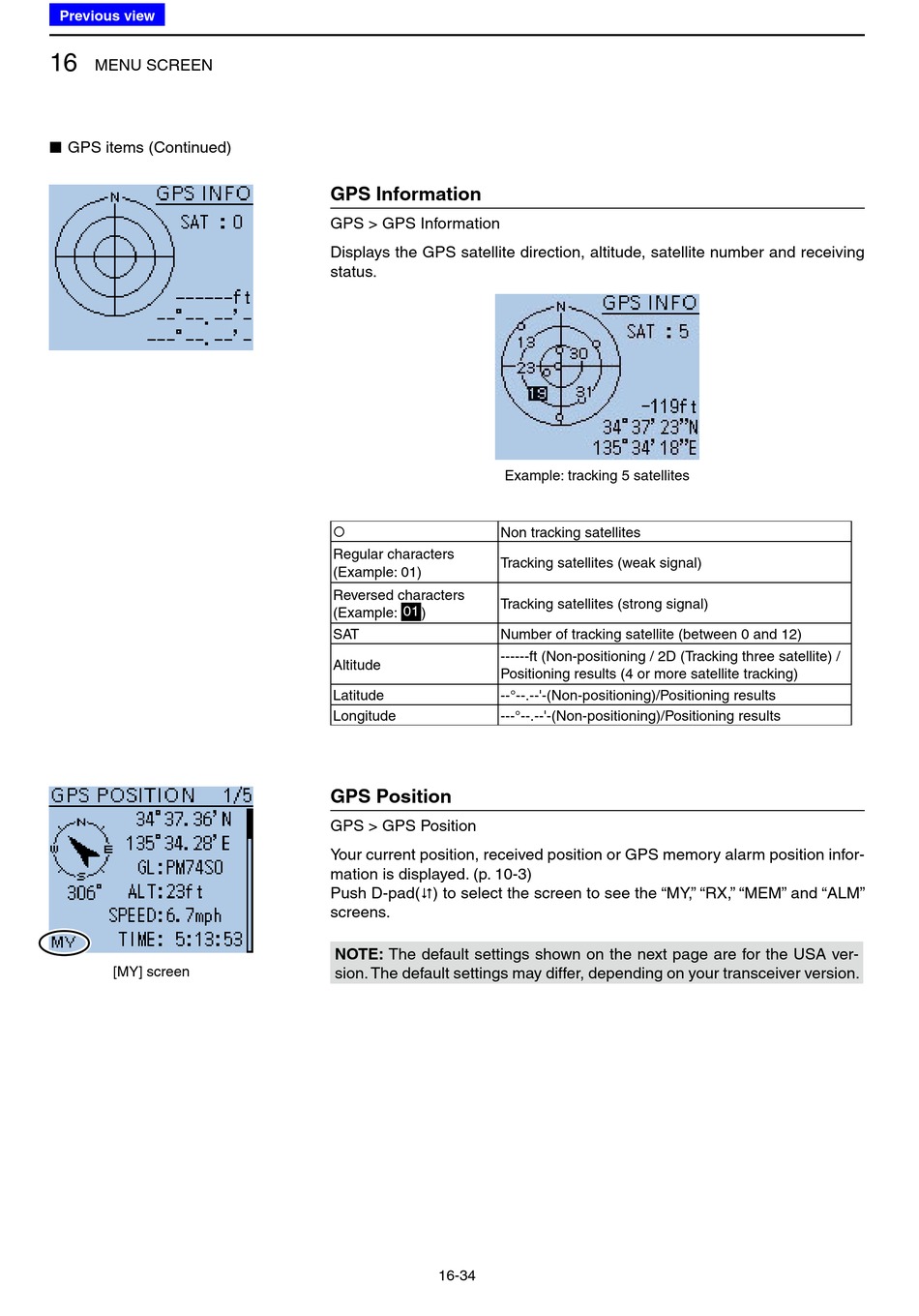

GPS Information

GPS > GPS Information
Displays the GPS satellite direction, altitude, satellite number and receiving
status.
Non tracking satellites

Regular characters
Tracking satellites (weak signal)
(Example: 01)
Reversed characters
Tracking satellites (strong signal)
01
(Example: )
SAT Number of tracking satellite (between 0 and 12)
------ft (Non-positioning / 2D (Tracking three satellite) /
Altitude
Positioning results (4 or more satellite tracking)
Latitude --°--.--'-(Non-positioning)/Positioning results
Longitude ---°--.--'-(Non-positioning)/Positioning results
GPS Position
GPS > GPS Position
Your current position, received position or GPS memory alarm position infor-
mation is displayed. (p. 10-3)
Push D-pad( ) to select the screen to see the "MY," "RX," "MEM" and "ALM"

screens.
NOTE: The default settings shown on the next page are for the USA ver-
sion. The default settings may differ, depending on your transceiver version.
16-34
Example: tracking 5 satellites
