17

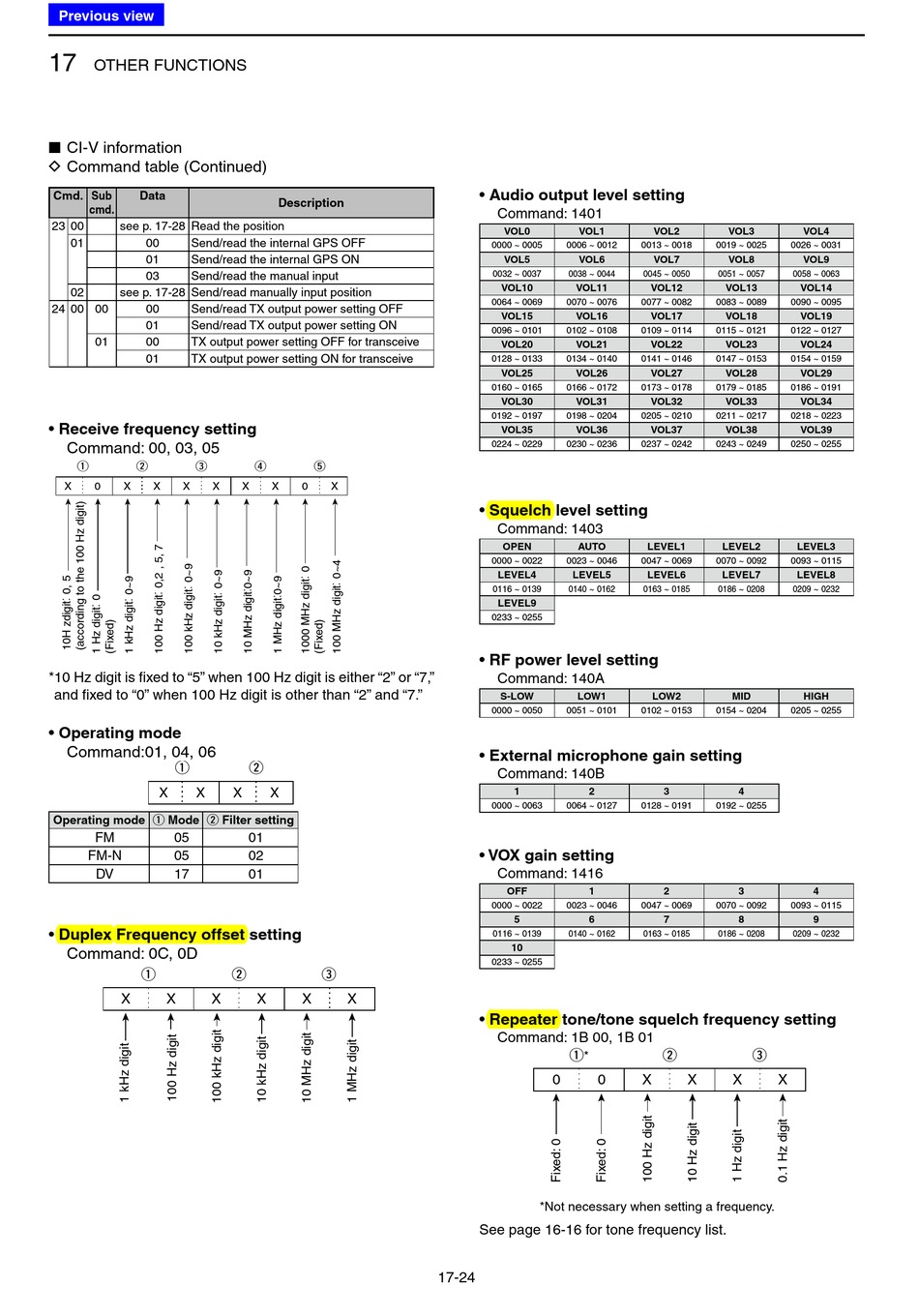

OTHER FUNCTIONS
■ CI-V information
D Command table (Continued)
Cmd. Sub Data
cmd.
23 00 see p. 17-28 Read the position
01 00 Send/read the internal GPS OFF
01 Send/read the internal GPS ON
03 Send/read the manual input
02 see p. 17-28 Send/read manually input position
24 00 00 00 Send/read TX output power setting OFF
01 Send/read TX output power setting ON
01 00 TX output power setting OFF for transceive
01 TX output power setting ON for transceive
• Receive frequency setting
Command: 00, 03, 05
q w e
X 0 X X X X
* 10 Hz digit is fixed to "5" when 100 Hz digit is either "2" or "7,"
and fixed to "0" when 100 Hz digit is other than "2" and "7."

• Operating mode

Command:01, 04, 06
q※ w e
q
0 0 X X X X
X X
Operating mode q Mode w Filter setting
FM 05
FM-N 05
DV 17
• Duplex Frequency offset setting
Command: 0C, 0D
q
X X X
q* w e
X X 0 X X X
Receive polarity: 0: Normal
Transmit polarity: 0: Normal
Description
r t
X X 0 X
w
X X
01
02
01
w e
X X X
1: Reverse
1: Reverse
• Audio output level setting
Command: 1401
VOL0 VOL1
0000 ~ 0005 0006 ~ 0012
VOL5 VOL6
0032 ~ 0037 0038 ~ 0044
VOL10 VOL11
0064 ~ 0069 0070 ~ 0076
VOL15 VOL16
0096 ~ 0101 0102 ~ 0108
VOL20 VOL21
0128 ~ 0133 0134 ~ 0140
VOL25 VOL26
0160 ~ 0165 0166 ~ 0172
VOL30 VOL31
0192 ~ 0197 0198 ~ 0204
VOL35 VOL36
0224 ~ 0229 0230 ~ 0236

• Squelch level setting

Command: 1403
OPEN AUTO
0000 ~ 0022 0023 ~ 0046
LEVEL4 LEVEL5
0116 ~ 0139 0140 ~ 0162
LEVEL9
0233 ~ 0255
• RF power level setting
Command: 140A
S-LOW LOW1
0000 ~ 0050 0051 ~ 0101
• External microphone gain setting
Command: 140B
1 2
0000 ~ 0063 0064 ~ 0127
• VOX gain setting
Command: 1416
OFF 1
0000 ~ 0022 0023 ~ 0046
5 6
0116 ~ 0139 0140 ~ 0162
10
0233 ~ 0255
• Repeater tone/tone squelch frequency setting
Command: 1B 00, 1B 01
q
*
0 0
*Not necessary when setting a frequency.
See page 16-16 for tone frequency list.
17-24
VOL2 VOL3 VOL4
0013 ~ 0018 0019 ~ 0025 0026 ~ 0031
VOL7 VOL8 VOL9
0045 ~ 0050 0051 ~ 0057 0058 ~ 0063
VOL12 VOL13 VOL14
0077 ~ 0082 0083 ~ 0089 0090 ~ 0095
VOL17 VOL18 VOL19
0109 ~ 0114 0115 ~ 0121 0122 ~ 0127
VOL22 VOL23 VOL24
0141 ~ 0146 0147 ~ 0153 0154 ~ 0159
VOL27 VOL28 VOL29
0173 ~ 0178 0179 ~ 0185 0186 ~ 0191
VOL32 VOL33 VOL34
0205 ~ 0210 0211 ~ 0217 0218 ~ 0223
VOL37 VOL38 VOL39
0237 ~ 0242 0243 ~ 0249 0250 ~ 0255
LEVEL1 LEVEL2 LEVEL3
0047 ~ 0069 0070 ~ 0092 0093 ~ 0115
LEVEL6 LEVEL7 LEVEL8
0163 ~ 0185 0186 ~ 0208 0209 ~ 0232
LOW2 MID HIGH
0102 ~ 0153 0154 ~ 0204 0205 ~ 0255
3 4
0128 ~ 0191 0192 ~ 0255
2 3 4
0047 ~ 0069 0070 ~ 0092 0093 ~ 0115
7 8 9
0163 ~ 0185 0186 ~ 0208 0209 ~ 0232
w e
X X X X
