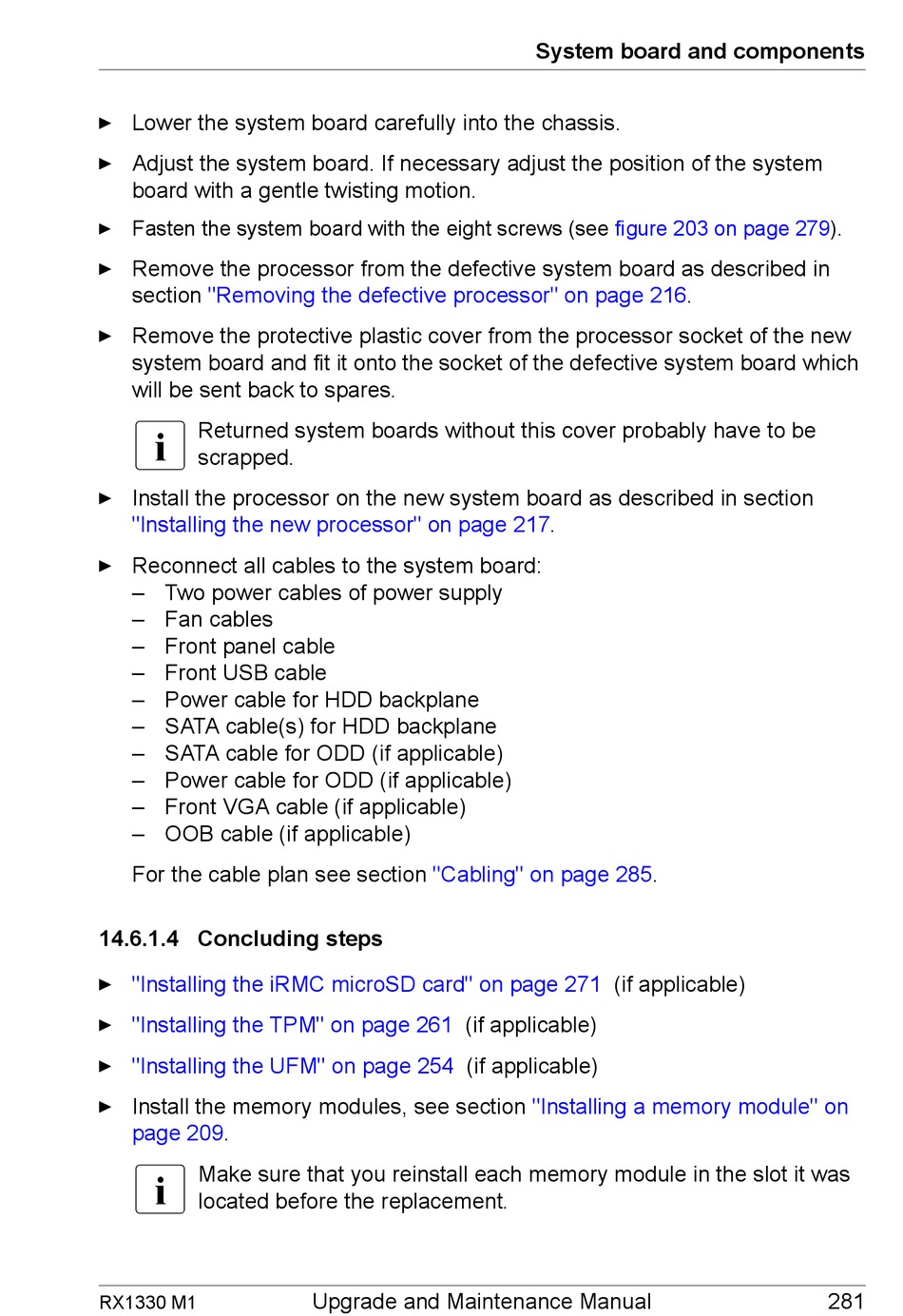

Ê Lower the system board carefully into the chassis.
Ê Adjust the system board. If necessary adjust the position of the system
board with a gentle twisting motion.
Ê Fasten the system board with the eight screws (see
Ê Remove the processor from the defective system board as described in
section "Removing the defective processor" on page
Ê Remove the protective plastic cover from the processor socket of the new
system board and fit it onto the socket of the defective system board which
will be sent back to spares.
I
Returned system boards without this cover probably have to be
scrapped.
Ê Install the processor on the new system board as described in section
"Installing the new processor" on page
Ê Reconnect all cables to the system board:
– Two power cables of power supply
– Fan cables
– Front panel cable
– Front USB cable
– Power cable for HDD backplane
– SATA cable(s) for HDD backplane
– SATA cable for ODD (if applicable)
– Power cable for ODD (if applicable)
– Front VGA cable (if applicable)
– OOB cable (if applicable)
For the cable plan see section

14.6.1.4 Concluding steps

"Installing the iRMC microSD card" on page 271
Ê
"Installing the TPM" on page 261
Ê
"Installing the UFM" on page 254
Ê
Ê Install the memory modules, see section
page 209.
I
Make sure that you reinstall each memory module in the slot it was
located before the replacement.
RX1330 M1
"Cabling" on page
(if applicable)
(if applicable)
Upgrade and Maintenance Manual
System board and components
figure 203 on page
216.
217.
285.
(if applicable)
"Installing a memory module" on
279).
281
