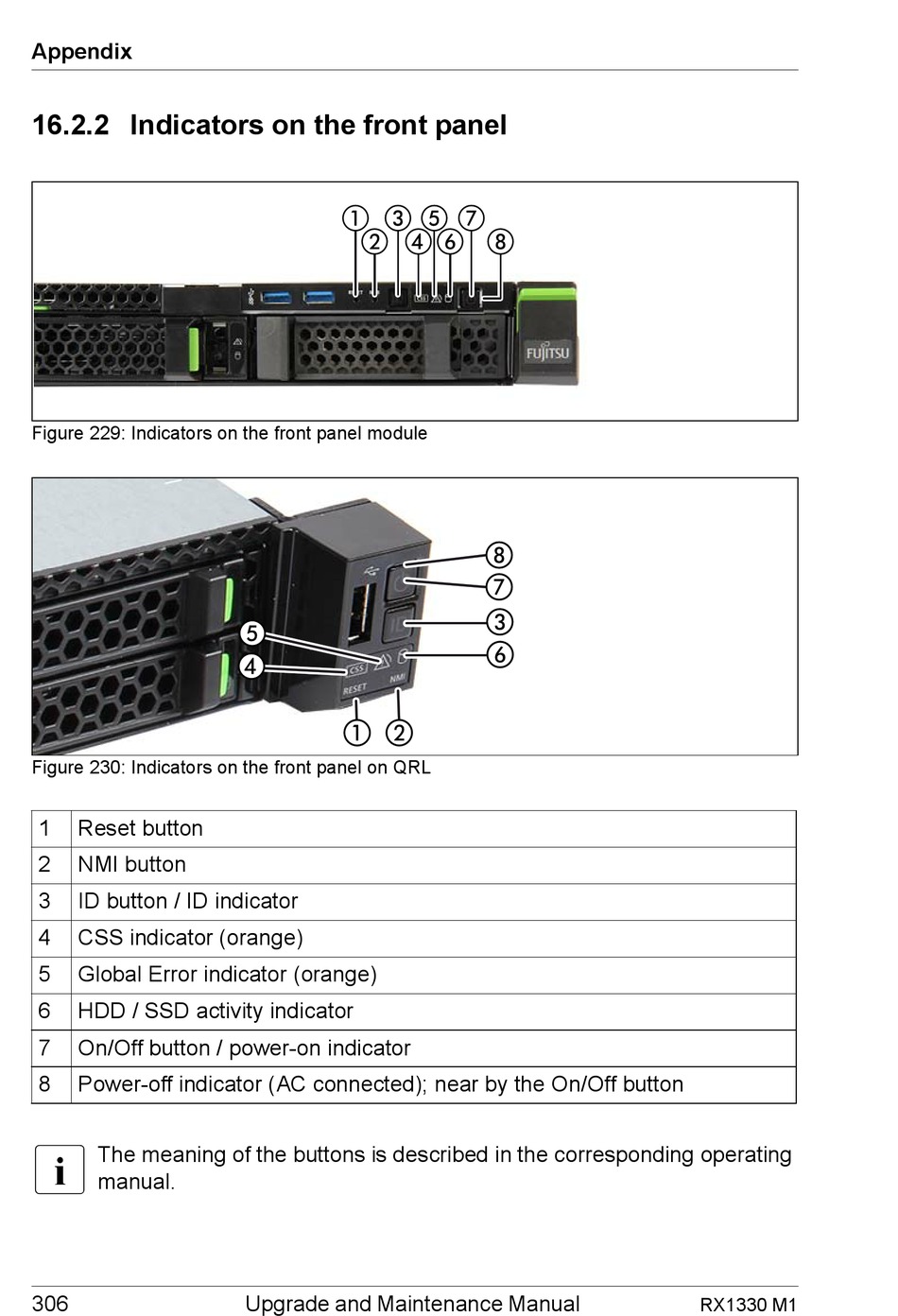

16.2.2 Indicators on the front panel
Figure 229: Indicators on the front panel module
Figure 230: Indicators on the front panel on QRL
1
Reset button
2
NMI button
3
ID button / ID indicator
4
CSS indicator (orange)
5
Global Error indicator (orange)
6
HDD / SSD activity indicator
7
On/Off button / power-on indicator
8
Power-off indicator (AC connected); near by the On/Off button
I
The meaning of the buttons is described in the corresponding operating
manual.
306
Upgrade and Maintenance Manual
RX1330 M1
