9.5.4.3

Disconnecting the FBU cable from the FBU

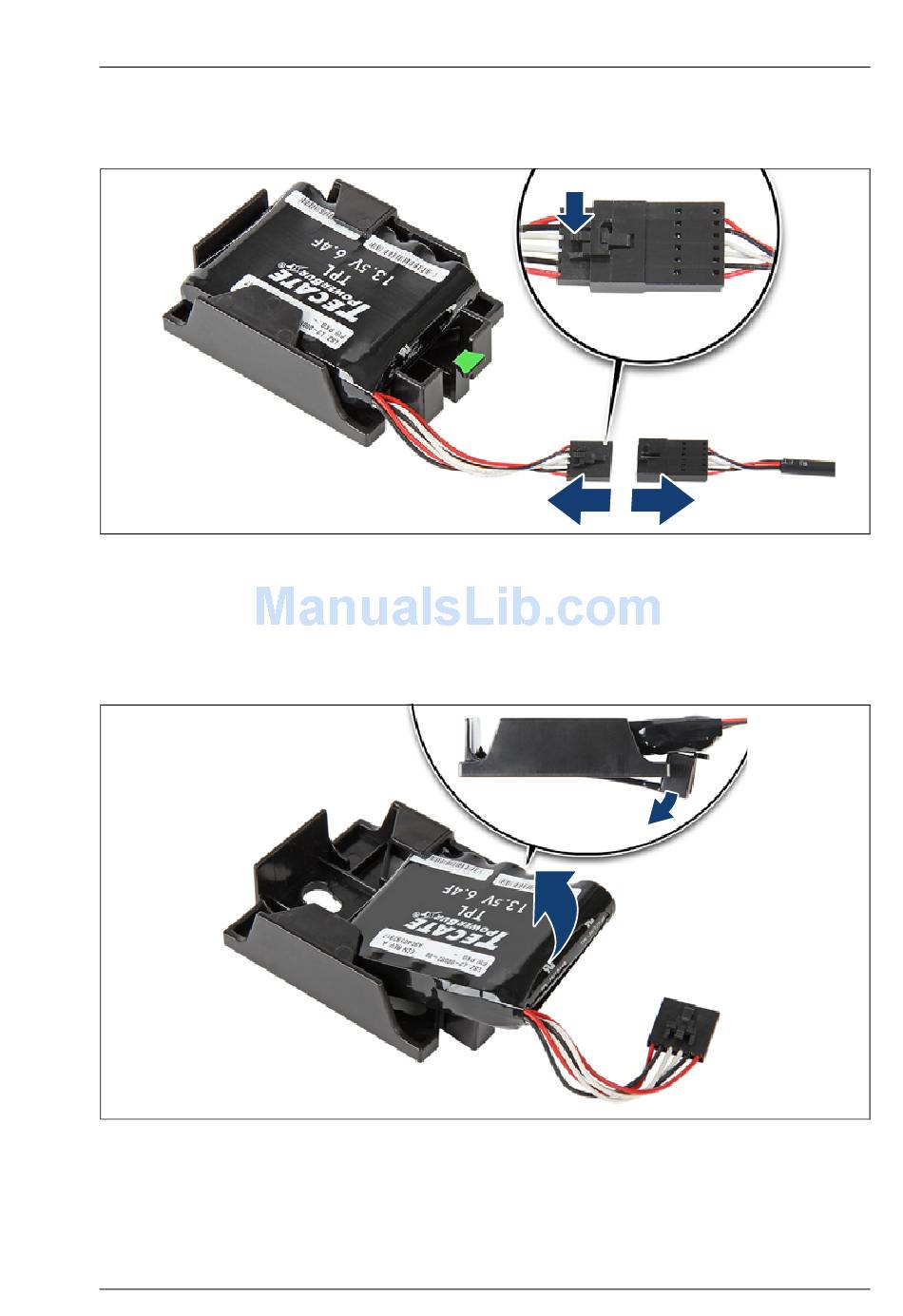

Figure 135: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
9.5.4.4

Removing the FBU from the holder

Figure 136: Removing the FBU from the holder
Ê Pull the FBU at a slight angle out of the holder.
