System board and components

14.3.2.2 Removing the UFM

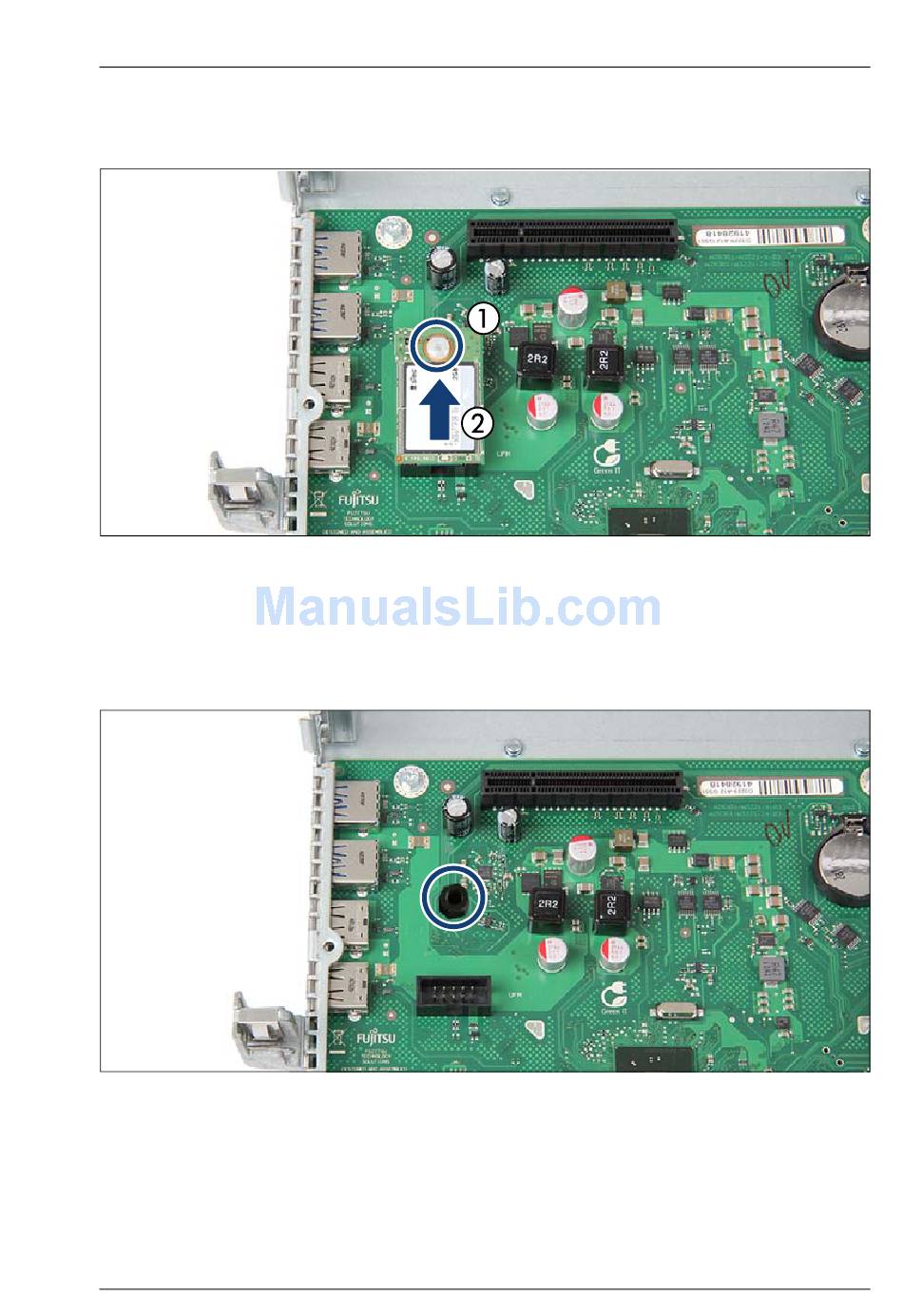

Figure 187: Removing the UFM
Ê Remove the nylon screw of the UFM (1).
Ê Disconnect and remove the UFM (2).
The UFM spacer remains on the system board.
Figure 188: Remaining UFM spacer
Upgrade and Maintenance Manual
257
RX1330 M1
