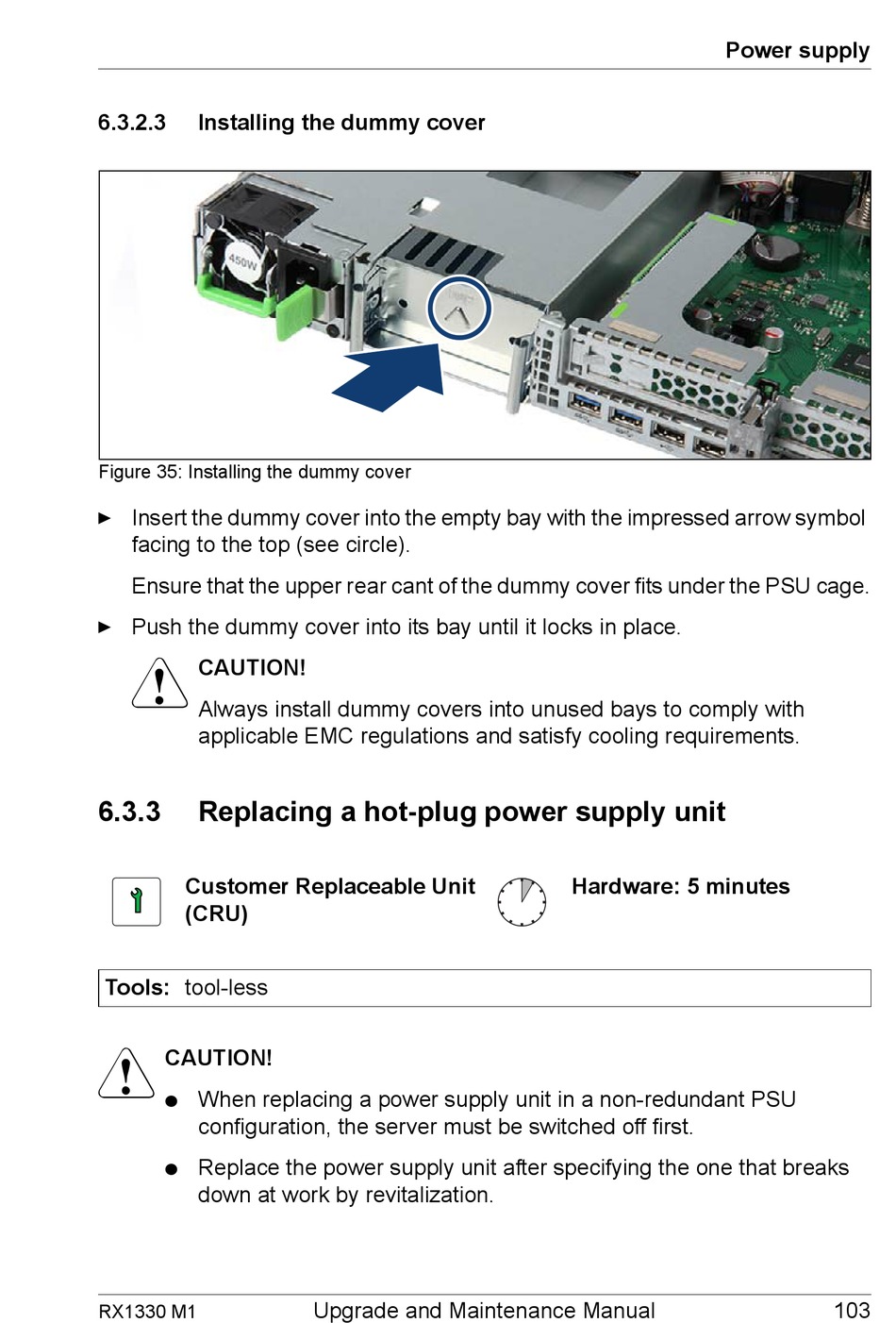

6.3.2.3
Installing the dummy cover
Figure 35: Installing the dummy cover
Ê Insert the dummy cover into the empty bay with the impressed arrow symbol
facing to the top (see circle).
Ensure that the upper rear cant of the dummy cover fits under the PSU cage.
Ê Push the dummy cover into its bay until it locks in place.
V
CAUTION!
Always install dummy covers into unused bays to comply with
applicable EMC regulations and satisfy cooling requirements.
6.3.3
Replacing a hot-plug power supply unit
Customer Replaceable Unit
(CRU)
Tools: tool-less
V
CAUTION!
When replacing a power supply unit in a non-redundant PSU
●
configuration, the server must be switched off first.
Replace the power supply unit after specifying the one that breaks
●
down at work by revitalization.
RX1330 M1
Upgrade and Maintenance Manual
Power supply
Hardware: 5 minutes
103
