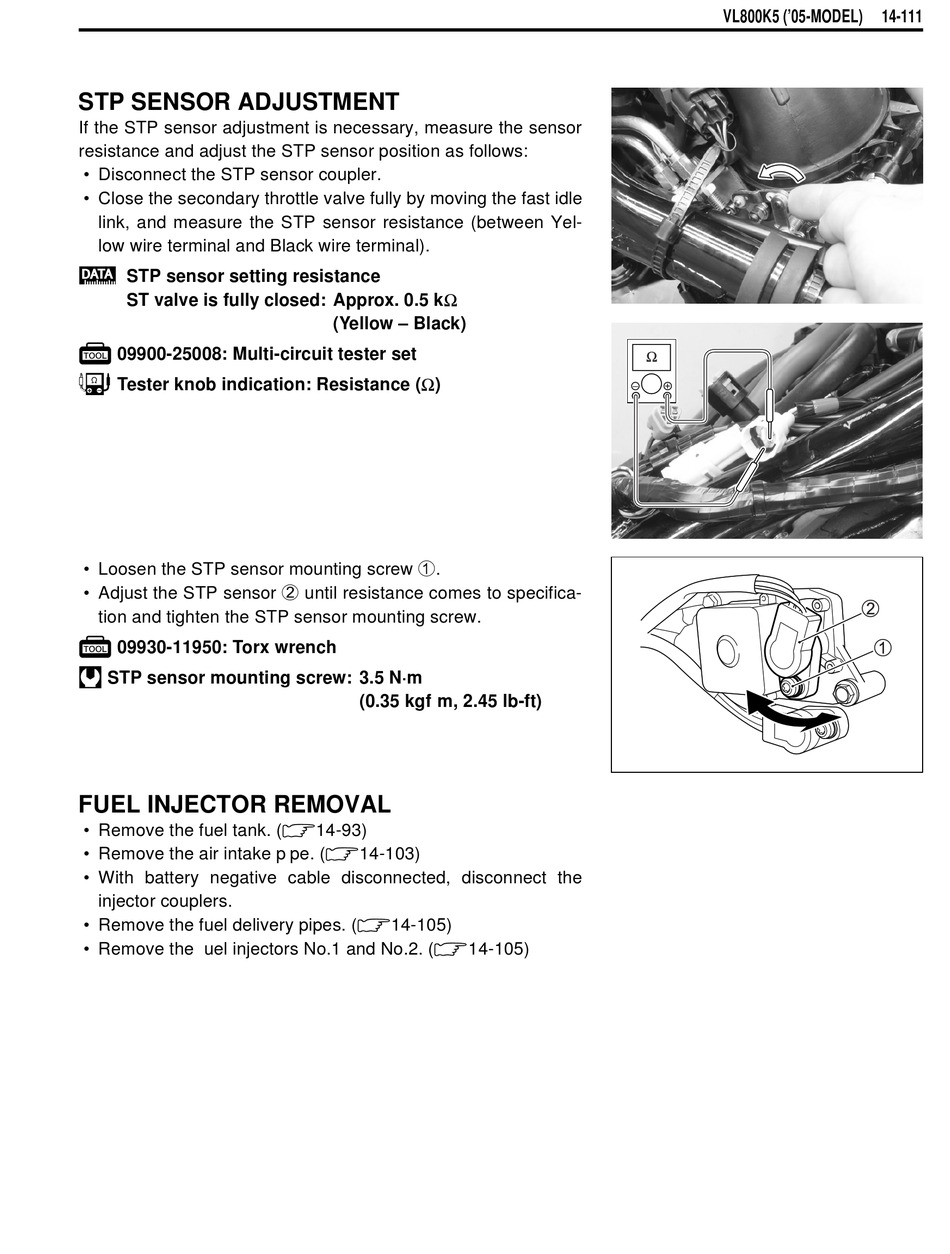

STP SENSOR ADJUSTMENT
If the STP sensor adjustment is necessary, measure the sensor
resistance and adjust the STP sensor position as follows:
• Disconnect the STP sensor coupler.
• Close the secondary throttle valve fully by moving the fast idle
link, and measure the STP sensor resistance (between Yel-
low wire terminal and Black wire terminal).
! STP sensor setting resistance
ST valve is fully closed: Approx. 0.5 kΩ
" 09900-25008: Multi-circuit tester set
% Tester knob indication: Resistance (Ω)
• Loosen the STP sensor mounting screw 1.
• Adjust the STP sensor 2 until resistance comes to specifica-
tion and tighten the STP sensor mounting screw.
" 09930-11950: Torx wrench
* STP sensor mounting screw: 3.5 N·m

FUEL INJECTOR REMOVAL

• Remove the fuel tank. ($14-93)
• Remove the air intake p pe. ($14-103)
• With battery negative cable disconnected, disconnect the
injector couplers.
• Remove the fuel delivery pipes. ($14-105)
• Remove the uel injectors No.1 and No.2. ($14-105)
(Yellow – Black)
(0.35 kgf m, 2.45 lb-ft)
VL800K5 ('05-MODEL) 14-111
