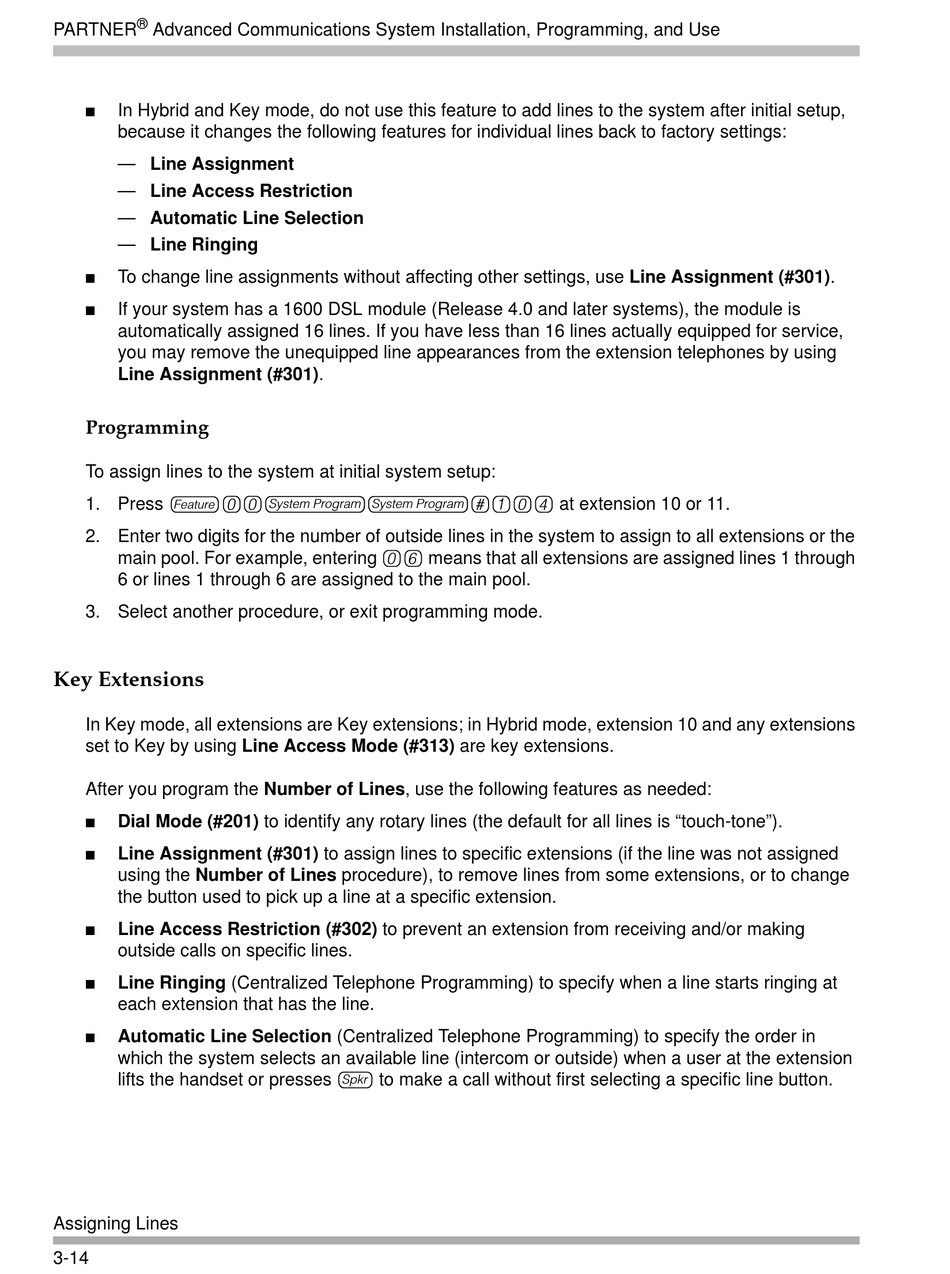

PARTNER Advanced Communications System Installation, Programming, and Use
In Hybrid and Key mode, do not use this feature to add lines to the system after initial setup,
because it changes the following features for individual lines back to factory settings:
— Line Assignment
— Line Access Restriction
— Automatic Line Selection
— Line Ringing
To change line assignments without affecting other settings, use Line Assignment (#301).
If your system has a 1600 DSL module (Release 4.0 and later systems), the module is
automatically assigned 16 lines. If you have less than 16 lines actually equipped for service,
you may remove the unequipped line appearances from the extension telephones by using
Line Assignment (#301).
Programming
To assign lines to the system at initial system setup:
f00ss#104
1. Press
2. Enter two digits for the number of outside lines in the system to assign to all extensions or the
main pool. For example, entering
6 or lines 1 through 6 are assigned to the main pool.
3. Select another procedure, or exit programming mode.

Key Extensions

In Key mode, all extensions are Key extensions; in Hybrid mode, extension 10 and any extensions
set to Key by using Line Access Mode (#313) are key extensions.
After you program the Number of Lines, use the following features as needed:
Dial Mode (#201) to identify any rotary lines (the default for all lines is "touch-tone").
Line Assignment (#301) to assign lines to specific extensions (if the line was not assigned
using the Number of Lines procedure), to remove lines from some extensions, or to change
the button used to pick up a line at a specific extension.
Line Access Restriction (#302) to prevent an extension from receiving and/or making
outside calls on specific lines.
Line Ringing (Centralized Telephone Programming) to specify when a line starts ringing at
each extension that has the line.
Automatic Line Selection (Centralized Telephone Programming) to specify the order in
which the system selects an available line (intercom or outside) when a user at the extension
lifts the handset or presses
Assigning Lines
3-14
06
means that all extensions are assigned lines 1 through
S
to make a call without first selecting a specific line button.
3
at extension 10 or 11.
3
