4.4 Rear Plate

EasyCoder PX4i and PX6i Service Manual

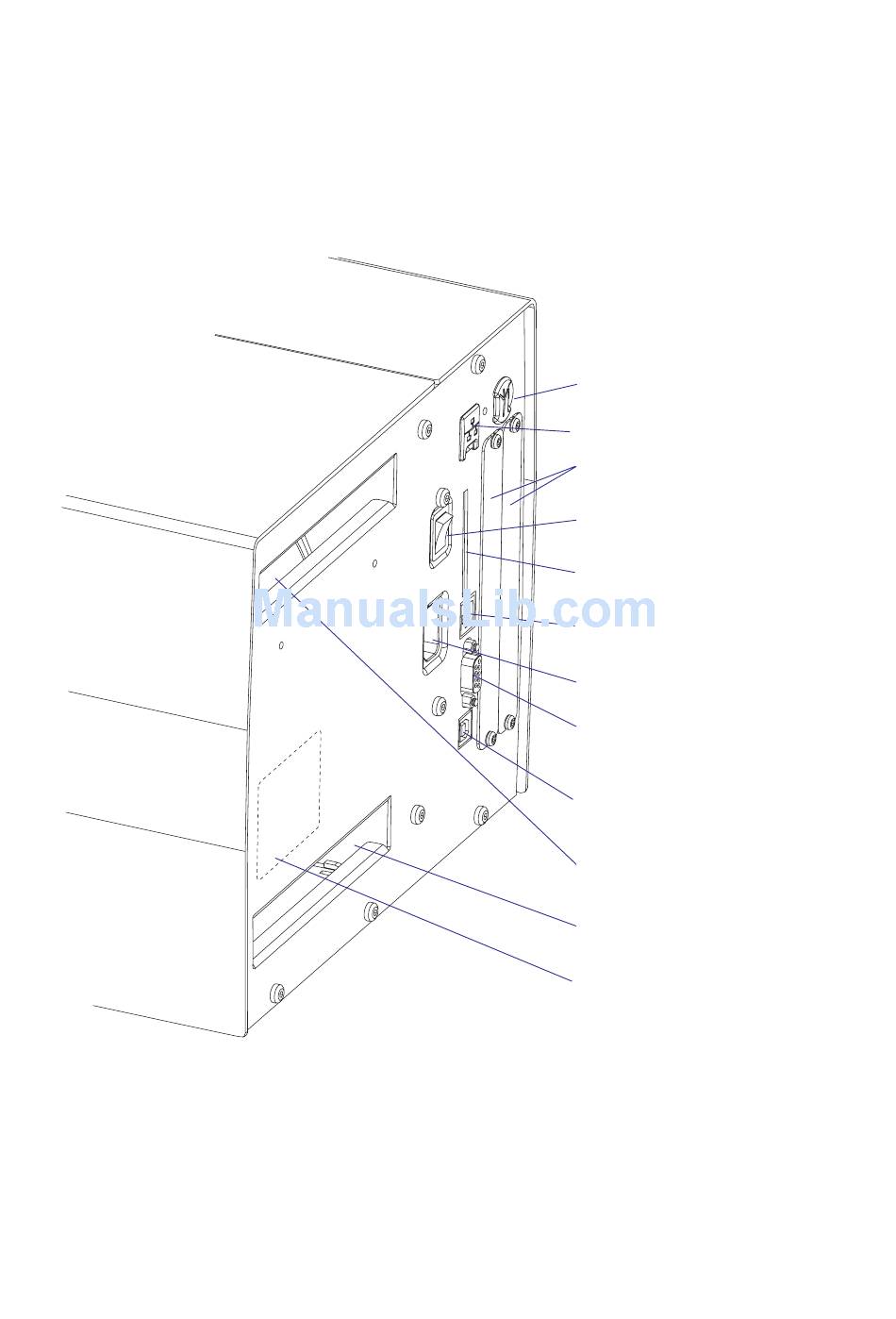

The rear plate is attached to the bottom plate using three #T20 Torx
screws and to the center section by two #T20 Torx screws. There is also a
bracket between the rear plate and the center section. The rear plate has a
number of slots for connectors, switches etc., as illustrated below.
Chapter 4 — Chassis
Provision for EasyLAN Wireless antenna
Provision for EasyLAN Ethernet
connector
Provision for optional interface
board(s)
On/Off switch
CompactFlash memory card slot
Bar code wand Interface (not used with
IPL)
AC power cord receptacle
RS-232 serial interface
USB interface
Upper external media intake
Lower external media intake
Machine label
