4.2 Rear Plate

Description
Intermec EasyCoder PD4—Service Manual
The rear plate contains the On/Off switch and AC power cord socket
assembly, and the serial port connector. It also has slots for the parallel
interface connector and the USB connector, which are fi tted on the main
board.

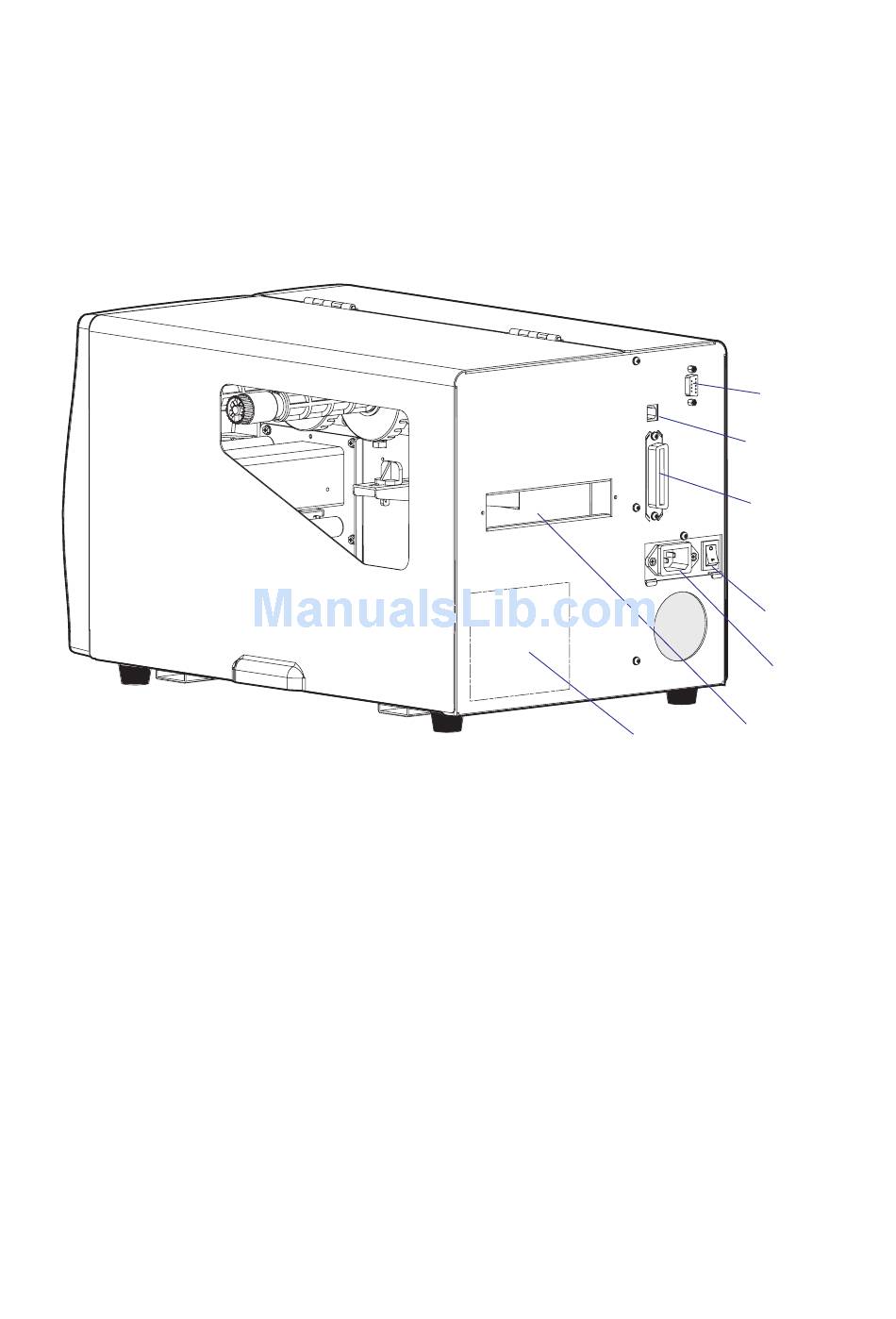

Chapter 4—Chassis
Serial port
USB port
Parallel port
On/Off
switch
AC power
cord socket
Slot for external
Label
media supply
