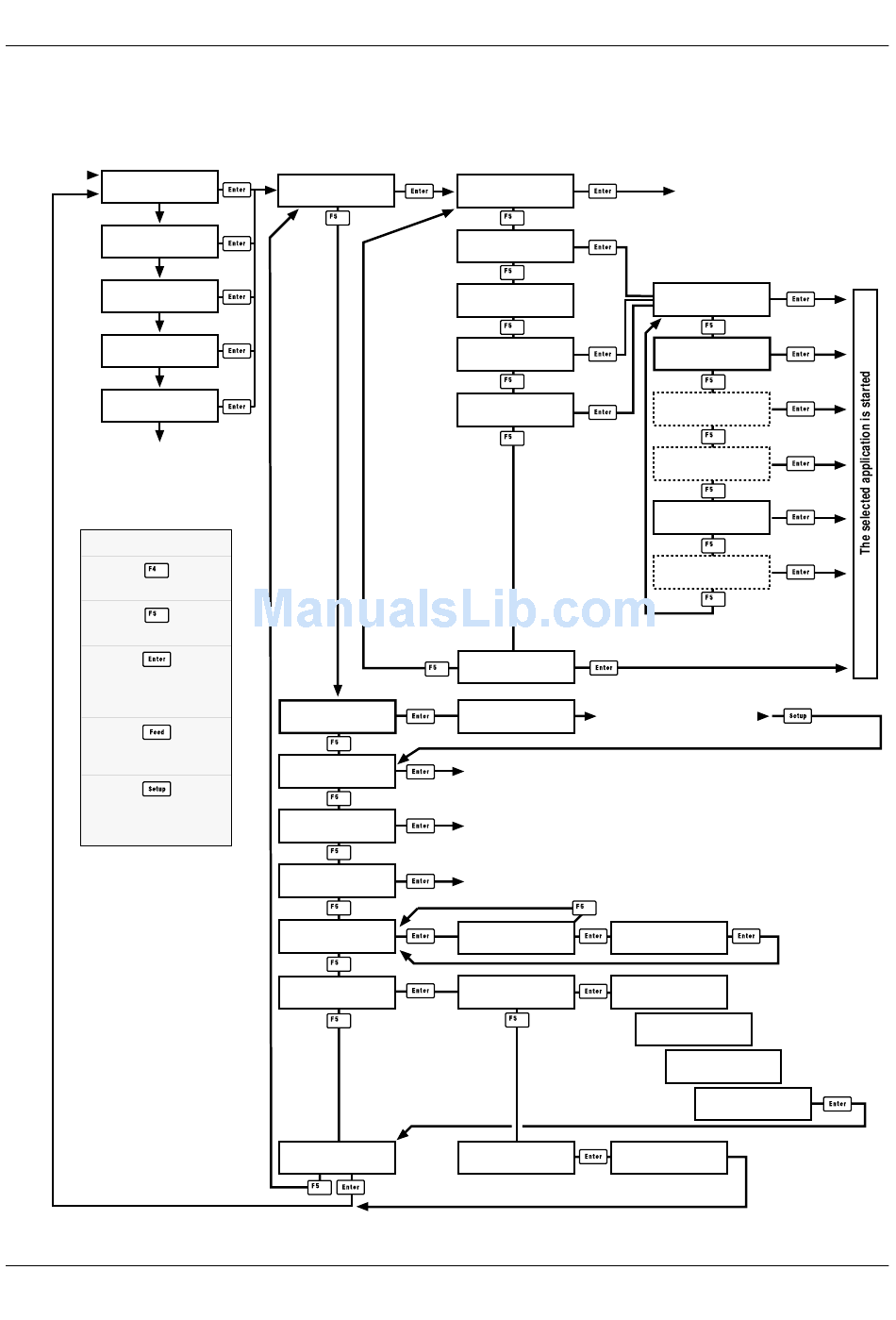

Intermec Shell v4.8 Diagram

POWER ON
ENTER=SHELL
5 sec. v.4.8
ENTER=SHELL
4 sec. v.4.8
ENTER=SHELL
3 sec. v.4.8
ENTER=SHELL
2 sec. v.4.8
ENTER=SHELL
1 sec. v.4.8
Last selected
application is started
Default:
Fingerprint 7.61 w. std I/O = "uart1:"
Legend:
Return to previous menu.
Proceed to next menu.
Accept displayed option
and proceed, or
execute displayed option.
Perform a Testfeed
anywhere in Intermec Shell.
Enter the Setup Mode
from anywhere
in Intermec Shell.
Intermec EasyCoder 501 XP – User's Guide
Chapter 8 Intermec Shell Startup Program
SHELL
SEL. APPLICATION
SHELL
SETUP
SHELL
PRINT SETUP
SHELL
TESTFEED
SHELL
TEST LABEL
SHELL
DEFAULT SETUP
SHELL
SOFTWARE UPDATE
SHELL
REBOOT
Restarts the printer (same as power off/on)
SEL. APPLICATION
CURRENT APPL.
SEL. APPLICATION
LABELSHOP
SEL. APPLICATION
WINDOWS DRIVER
SEL. APPLICATION
Fingerprint 7.61
SEL. APPLICATION
Direct Protocol
SEL.APPL rom:
LINE_AXP.PRG
SETUP:
See the chapter "Setup Mode"
SER-COM,UART1
Prints a list of current setup values (test label #5).
Performs a Testfeed (feeds out a number of blank copies
while autoadjusting the label stop sensor.)
Prints test labels #1-4 in a loop.
Press Enter for each new label.
ARE YOU SURE ? DEFAULT SETUP
Y=ENTER/ N=F5 PERFORMED
UPDATE: PC-CARD ERASE
PC-CARD?
UPDATE: TRANSFER FILE
FIRMWARE USING ZMODEM
Last selected application is started
Note: Dotted channels are only shown if
the corresponding optional interface pcb
is fitted.
STD I/O CHANNEL
auto
STD I/O CHANNEL
UART1
STD I/O CHANNEL
UART2
STD I/O CHANNEL
UART3
STD I/O CHANNEL
CENTRONICS
STD I/O CHANNEL
net1:
TRANSFER FILE
USING ZMODEM
PROGRAMMING
PC-CARD
PROGRAMMING
COMPLETED
Printer rebooted
automatically.
