21 - 272 AW–4 AUTOMATIC TRANSMISSION
DISASSEMBLY AND ASSEMBLY (Continued)
(19) Remove oil pump bolts and remove pump with
bridge–type Puller 7536 (Fig. 105).

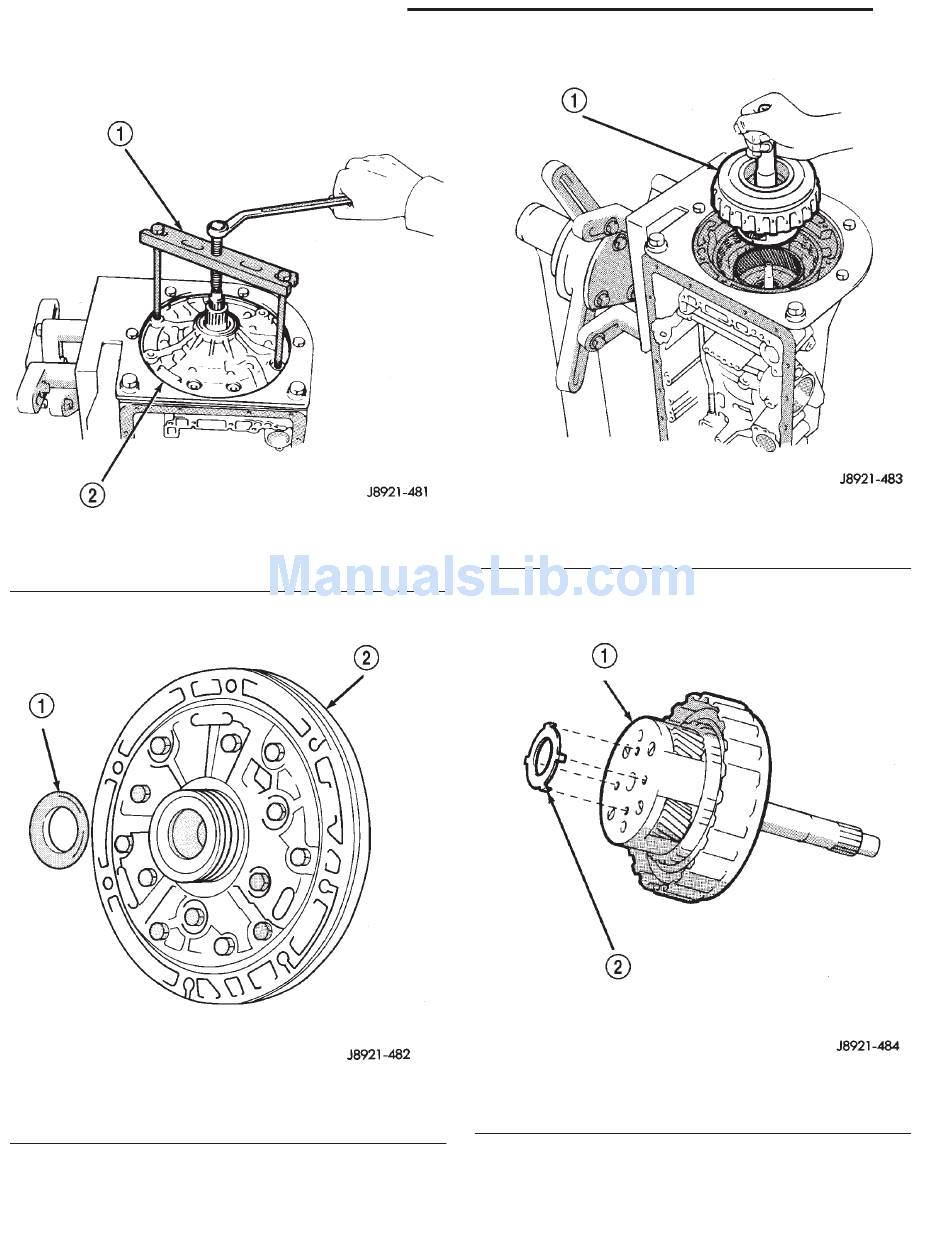

Fig. 105 Oil Pump Removal
1 – PULLER TOOL
2 – OIL PUMP
(20) Remove race from oil pump (Fig. 106).
Fig. 106 Oil Pump Race Removal
1 – OIL PUMP RACE
2 – OIL PUMP
(21) Remove overdrive planetary gear and clutch
assembly (Fig. 107).
Fig. 107 Removing Overdrive Planetary And Clutch
Assembly
1 – PLANETARY AND CLUTCH ASSEMBLY
(22) Remove race from overdrive planetary (Fig.
108).
Fig. 108 Fourth Gear Planetary Race Removal
1 – PLANETARY (OVERDRIVE)
2 – RACE
(23) Remove thrust bearing, race and overdrive
planetary ring gear (Fig. 109).
(24) Measure stroke length of overdrive brake pis-
ton as follows:
XJ
