(9) Remove valve body oil feed tubes (Fig. 98).

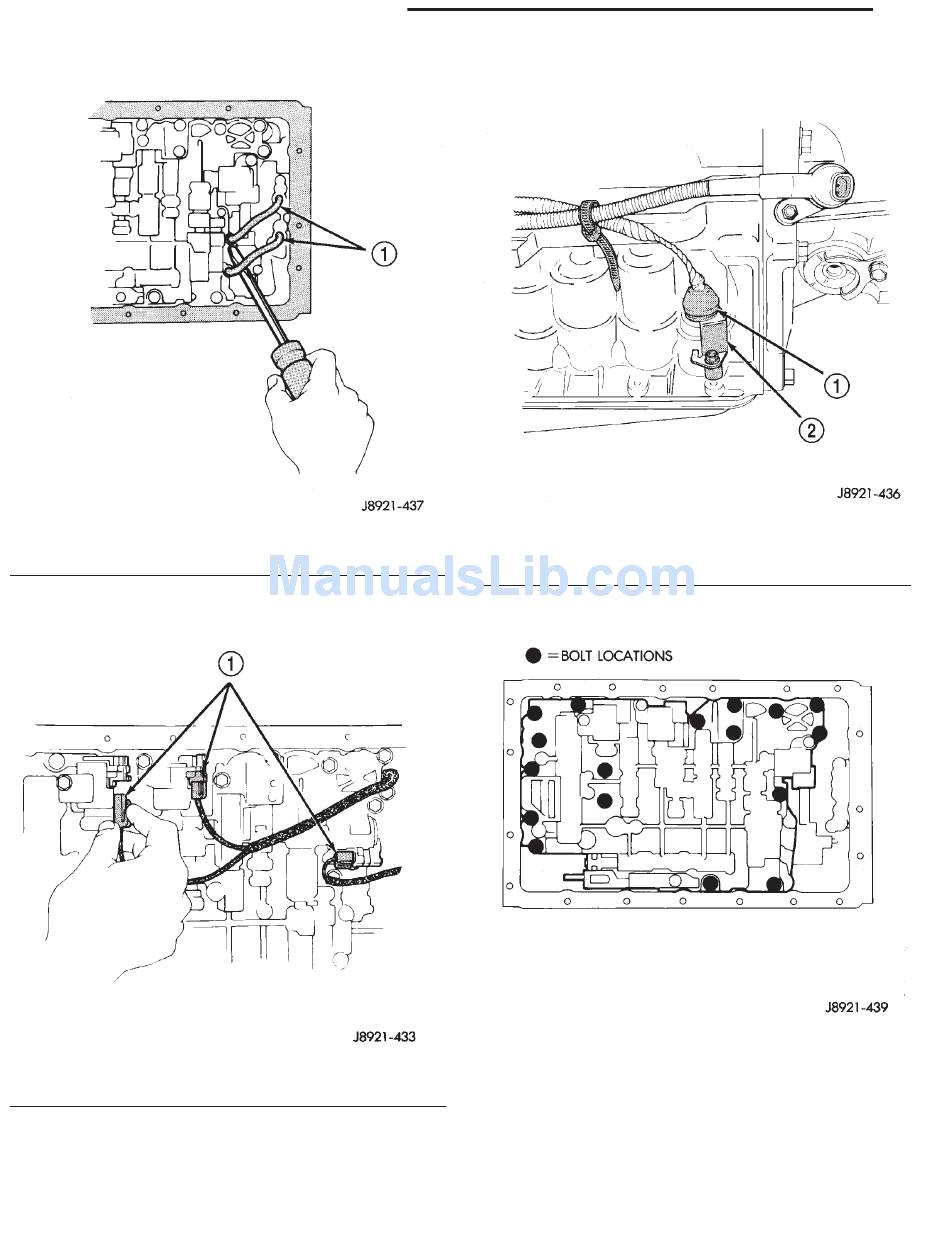

Fig. 98 Valve Body Oil Tube Removal
1 – OIL TUBES
(10) Disconnect valve body solenoid wires (Fig. 99).
Fig. 99 Solenoid Wire Location
1 – SOLENOID WIRE CONNECTORS
(11) Remove harness bracket bolt and remove har-
ness and bracket (Fig. 100).
Fig. 100 Removing Bracket And Harness
1 – HARNESS ADAPTER
2 – BRACKET
(12) Remove valve body bolts (Fig. 101).
Fig. 101 Valve Body Bolt Locations
(13) Disconnect throttle cable from throttle cam
(Fig. 102).
(14) Remove valve body from case. Then remove
accumulator springs, check ball, and spring (Fig. 103).
