XJ
DISASSEMBLY AND ASSEMBLY (Continued)
(31) Check brake pack clearance with feeler gauge
(Fig. 151). Clearance should be 0.062 – 1.98 mm
(0.024 – 0.078 in.). If brake pack clearance is not cor-
rect, brake pack components are not seated. Reas-
semble brake pack if necessary.

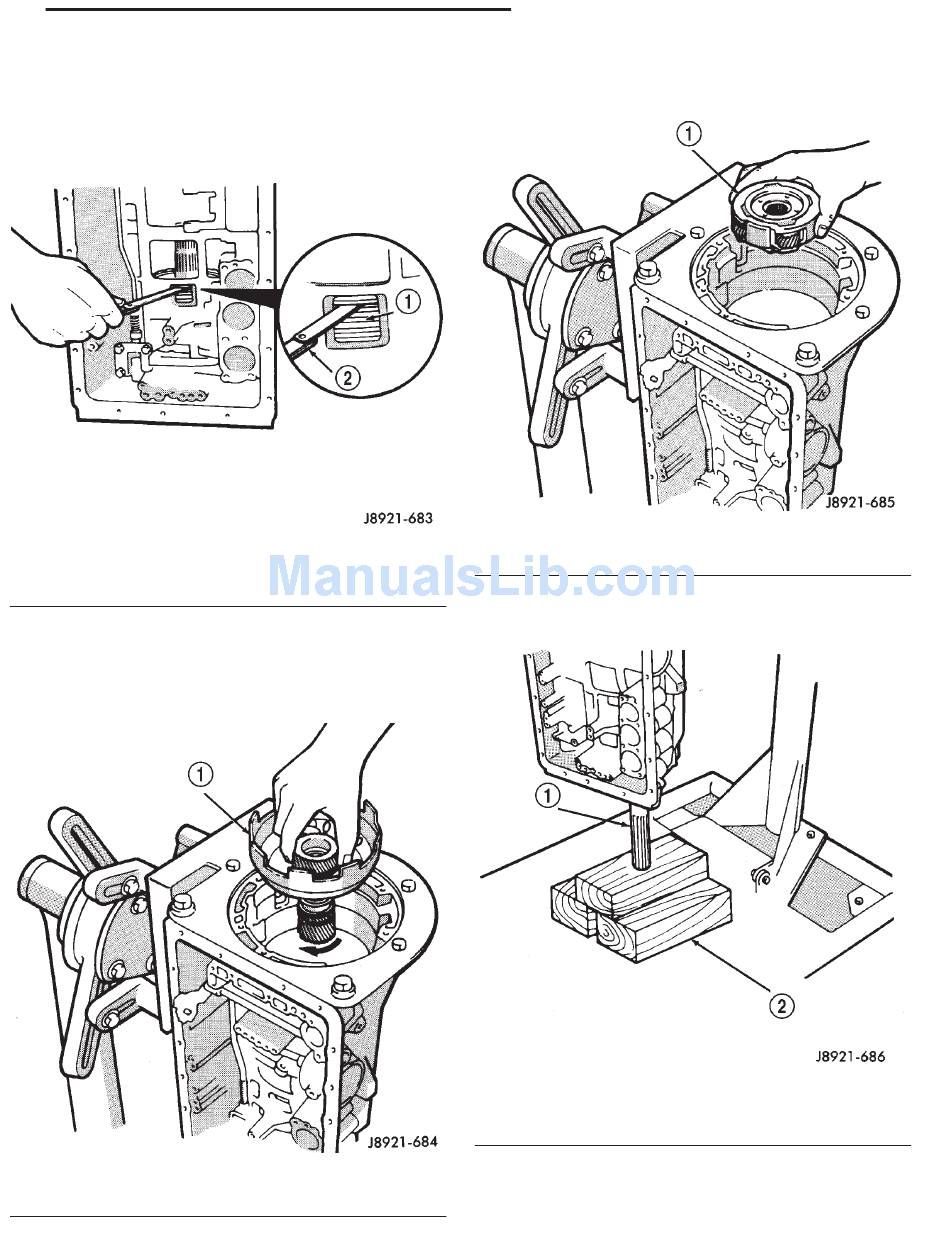

Fig. 151 Checking Second Brake Pack Clearance
1 – BRAKE PACK
2 – FEELER GAUGE
(32) Install planetary sun gear and input drum
(Fig. 152). Be sure drum thrust washer tabs are
seated in drum. Use petroleum jelly to hold thrust
washer in position if necessary.
Fig. 152 Installing Sun Gear And Input Drum
1 – SUN GEAR AND INPUT DRUM
AW–4 AUTOMATIC TRANSMISSION
(33) Install front planetary gear on sun gear (Fig.
153).
Fig. 153 Installing Front Planetary Gear
1 – FRONT PLANETARY GEAR
(34) Support output shaft with wood blocks (Fig.
154).
Fig. 154 Supporting Output Shaft
1 – OUTPUT SHAFT
2 – WOOD BLOCKS
21 - 285
