XJ

DISASSEMBLY AND ASSEMBLY

TRANSMISSION

DISASSEMBLY
(1) Remove torque converter.
(2) Remove clamps attaching wire harness and
throttle cable (Fig. 95) to transmission.

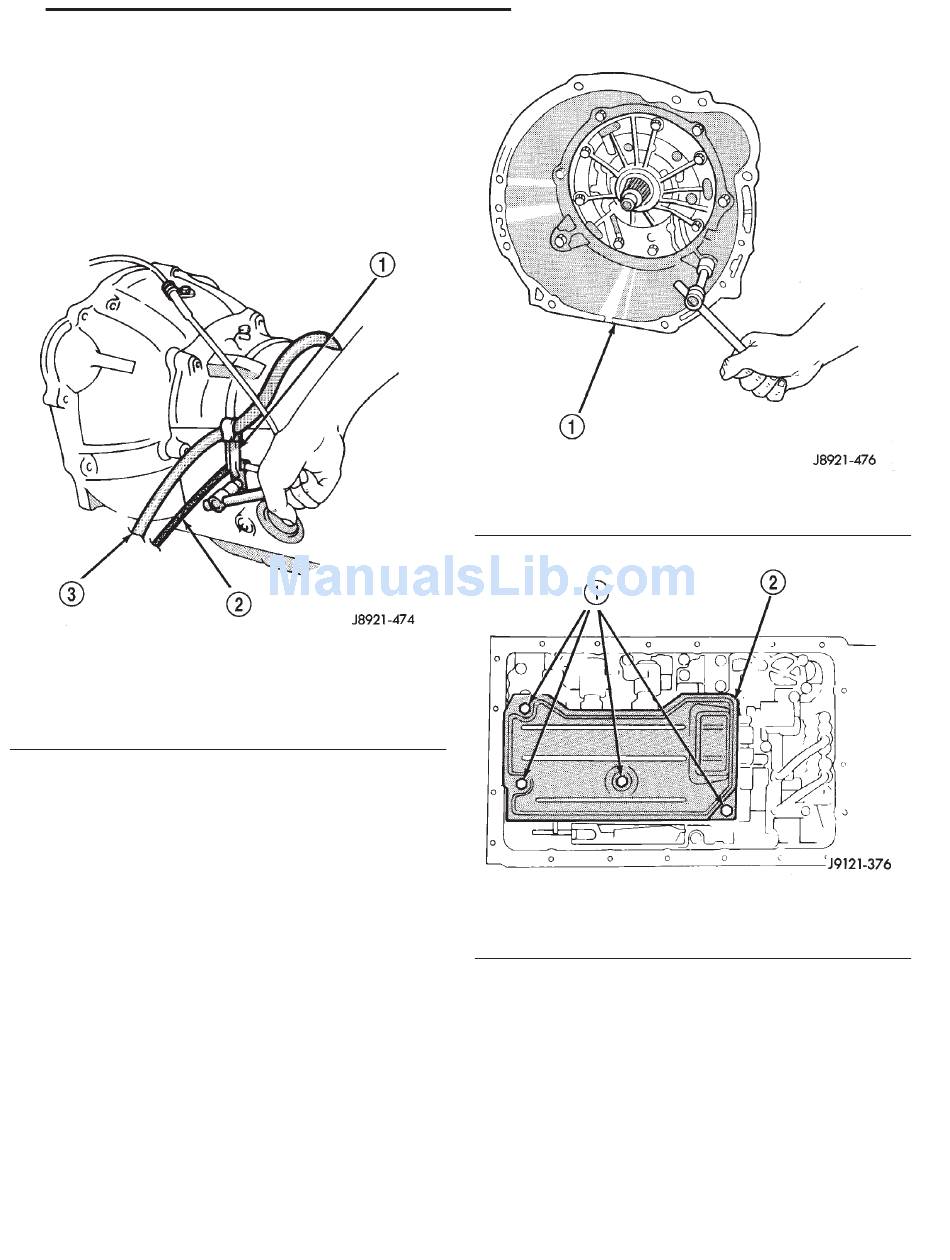

Fig. 95 Typical Harness And Cable Clamp
Attachment
1 – CLAMP
2 – THROTTLE CABLE
3 – TRANSMISSION HARNESS
(3) Remove shift lever from manual valve shaft at
left side of transmission.
(4) Remove park/neutral position switch.
(5) Remove speed sensor.
(6) Remove converter housing bolts and remove
housing (Fig. 96) from case.
(7) Remove adapter housing, speedometer drive
gear, and speed sensor rotor.
(8) Remove transmission oil pan, oil screen and
screen gaskets (Fig. 97).
AW–4 AUTOMATIC TRANSMISSION
Fig. 96 Converter Housing Removal
1 – CONVERTER HOUSING
Fig. 97 Removing Oil Screen
1 – OIL SCREEN BOLTS
2 – OIL SCREEN
21 - 269
