XJ
REMOVAL AND INSTALLATION (Continued)
(5) Remove park pawl, pin and spring (Fig. 90).
INSTALLATION
(1) Examine park rod, pawl, pin and spring.
Replace any component that is worn or damaged.
(2) Install pawl in case. Insert pin and install spring.
Be sure spring is positioned as shown in Figure 35.
(3) Install park rod and bracket (Fig. 88). Tighten
bracket bolts to 10 N·m (7 ft. lbs.) torque.
(4) Install valve body, oil screen and oil pan.
TRANSMISSION THROTTLE CABLE
REMOVAL
(1) In engine compartment, disconnect cable from
throttle linkage. Then compress cable mounting ears
and remove cable from engine bracket (Fig. 91).
(2) Raise vehicle.
(3) Remove transmission oil pan.
(4) Disengage cable from throttle valve cam (Fig.
92).
(5) Remove cable bracket bolt and remove cable
and bracket from case (Fig. 93).
(6) Remove and discard cable seal.
1 – THROTTLE CABLE
2 – CABLE GUIDE
3 – ACCELERATOR CABLE
4 – CABLE ENGINE BRACKET
5 – CONVERTER HOUSING

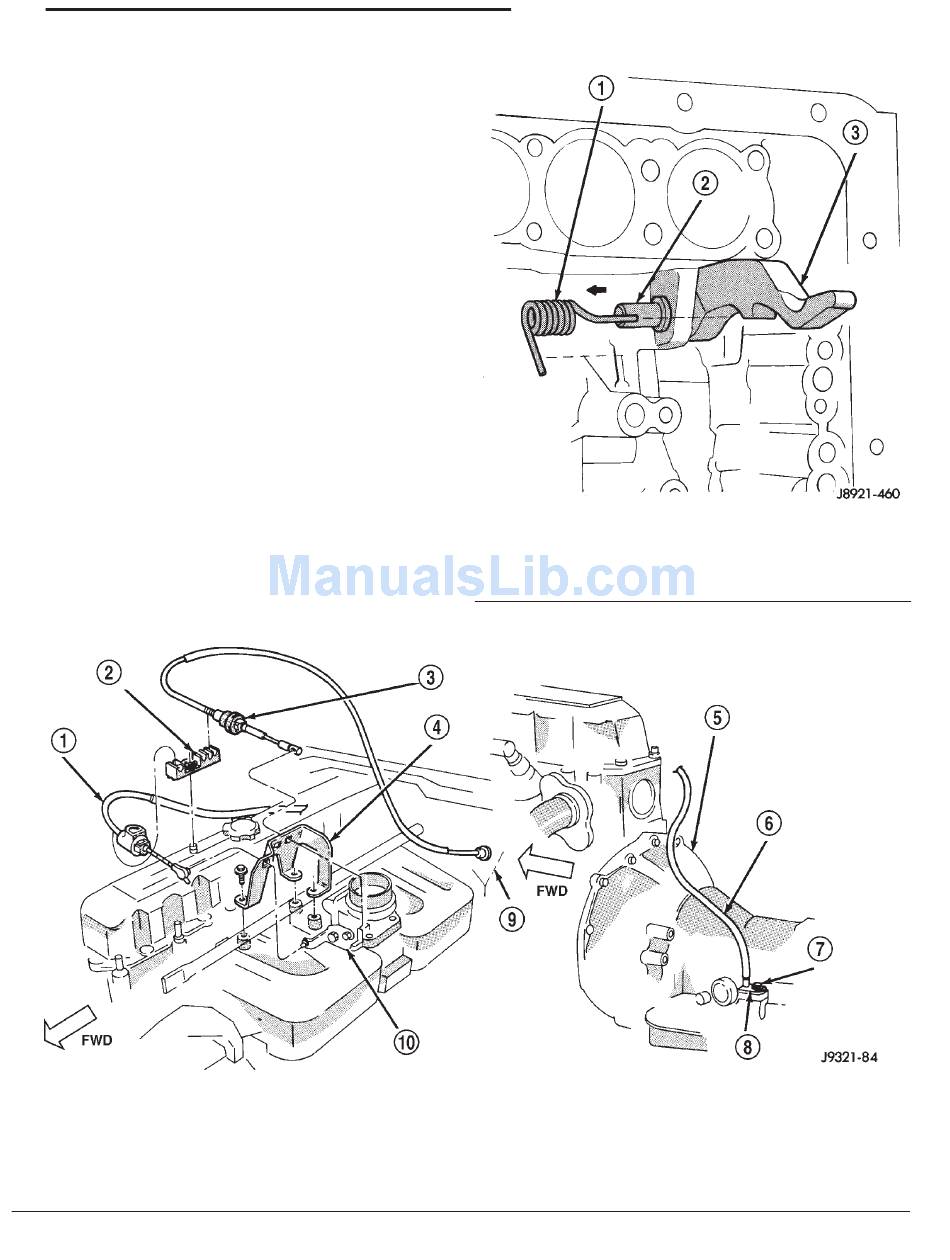

Fig. 91 Transmission Throttle Cable Attachment
AW–4 AUTOMATIC TRANSMISSION
Fig. 90 Removing/Installing Park Pawl, Pin And Spring
1 – SPRING
2 – PIN
3 – PARK PAWL
6 – THROTTLE CABLE
7 – CABLE RETAINER SCREW
8 – CABLE BRACKET
9 – DASH PANEL
10 – THROTTLE BODY
21 - 267
