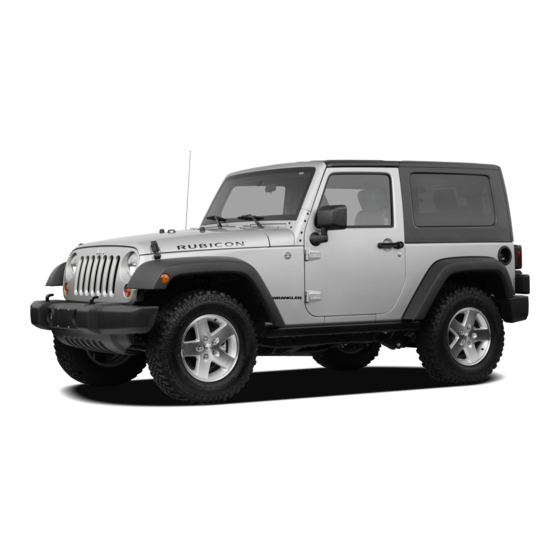

Jeep 2007 Wrangler Owner's Manual

Jeep 2007 Wrangler Owner's Manual

Hide thumbs Also See for 2007 Wrangler:

Overview manual (7 pages)

,

Owner's manual (467 pages)

page of 456

/ 456
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

SECTION

1

INTRODUCTION

2

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

3

UNDERSTANDING THE FEATURES OF YOUR VEHICLE

4

UNDERSTANDING YOUR INSTRUMENT PANEL

5

STARTING AND OPERATING

6

WHAT TO DO IN EMERGENCIES

7

MAINTAINING YOUR VEHICLE

8

MAINTENANCE SCHEDULES

9

IF YOU NEED CONSUMER ASSISTANCE

10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433

INDEX

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

PAGE

1

2

3

4

5

6

7

8

9

10

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2007 Wrangler and is the answer not in the manual?

Questions and answers

Summary of Contents for Jeep 2007 Wrangler

Page 1: Introduction
TABLE OF CONTENTS SECTION ............. 3 INTRODUCTION THINGS TO KNOW BEFORE STARTING YOUR VEHICLE UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 3: Table Of Contents
CONTENTS Introduction ......4 Roll Over Warning ..... 5 How To Use This Manual .
Page 4: Introduction
4 INTRODUCTION INTRODUCTION This is a specialized utility vehicle designed for both on-road and off-road use. It can go places and perform tasks for which conventional two-wheel drive enclosed vehicles were not intended. It handles and maneuvers differently from many passenger cars both on-road and off-road, so take time to become familiar with your vehicle.
Page 5: Roll Over Warning
Roll Over Warning Utility vehicles have a significantly higher roll over rate than other types of vehicles. This vehicle has a higher ground clearance, higher center of gravity, and narrower track than many passenger cars. It is capable of perform- ing better in a wide variety of off-road applications.
Page 6 6 INTRODUCTION million annually. In a roll over crash, an unbelted person is significantly more likely to die than a person wearing a seal belt. Always buckle up. Although your vehicle may be equipped with a soft top or optional hard top to give the occupants protection from the weather, these tops do not offer structural protection in the event of an accident and do not change the open-body characteristic of the vehicle.
Page 7: How To Use This Manual
When it comes to service, remember that your authorized dealer knows your vehicle best, has the factory-trained technicians and genuine Mopar parts, and is interested in your satisfaction. WARNING! Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Page 8 8 INTRODUCTION...
Page 9: Warnings And Cautions
WARNINGS AND CAUTIONS This manual contains WARNINGS against operating procedures which could result in an accident or bodily injury. It also contains CAUTIONS against procedures which could result in damage to your vehicle. If you do not read this entire manual you may miss important information.
Page 11: Things To Know Before Starting Your Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A Word About Your Keys ....14 Ignition Key Removal ....14 Key-In-Ignition Reminder .
Page 12 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using The Panic Alarm ....22 To Turn Off “Flash Lights With Lock” ..22 Programming Additional Transmitters .
Page 13 Child Restraint ......63 Engine Break-In Recommendations ...75 Safety Tips .
Page 14: Things To Know Before Starting Your Vehicle
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The keys for your new vehicle are enclosed in a plastic bag with the key code number on it. If you received your keys without the bag, ask your dealer to give you the number.
Page 15: Key-In-Ignition Reminder
WARNING! Leaving children in a vehicle unattended is danger- ous for a number of reasons. A child or others could be injured. Children should be warned not to touch the parking brake, brake pedal, or the gear selector lever. Do not leave the keys in the ignition. A child could operate power windows, other controls, or move the vehicle.
Page 16: To Release The Steering Wheel Lock
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Release the Steering Wheel Lock Insert the key in the ignition and turn the wheel slightly to the right or left to disengage the lock. NOTE: If you turned the wheel to the right to engage the lock, you must turn the wheel slightly to the right to disengage it.
Page 17: Important Note About Service
longer than 10 seconds) a fault has been detected in the electronics and the vehicle should be serviced as soon as possible. NOTE: • The Sentry Key Immobilizer System is not compatible with remote starting systems. Use of these systems may result in vehicle starting problems and loss of security protection.
Page 18: Customer Key Programming
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE consists of programming a blank key to the vehicle electronics. A blank key is one which has never been programmed. NOTE: When having the Sentry Key System serviced, bring all vehicle keys to the dealer. Customer Key Programming You can program new keys to the system if you have two valid keys by doing the following:...
Page 19: Security Alarm System - If Equipped
2. This device must accept any interference that may be received, including interference that may cause undes- ired operation. SECURITY ALARM SYSTEM — IF EQUIPPED This system monitors the vehicle doors, swing gate, and ignition for unauthorized operation. When the alarm is activated, the system provides both audible and visual signals.
Page 20: Illuminated Entry
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Security Alarm System is designed to protect your vehicle; however, you can create conditions where the system will arm unexpectedly. If you remain in the vehicle and lock the doors with the transmitter, once the system is armed (after 16 seconds), when you pull the door handle to exit the alarm will sound.
Page 21: To Unlock The Doors And Swing Gate
NOTE: The line of transmission must not be blocked with metal objects. To Unlock the Doors and Swing Gate Press and release the “Unlock” button on the key fob once to unlock only the driver’s door or twice to unlock all the doors and swing gate.
Page 22: Using The Panic Alarm
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. While the “Lock” button is pressed (after 4 seconds), press the PANIC button. Release both buttons. The “Sound Horn On Lock” feature can be reactivated by repeating this procedure. Using The Panic Alarm To turn the panic alarm feature ON or OFF, press and hold the PANIC button on the transmitter for at least one second and release.
Page 23: Programming Additional Transmitters
The “Flash Lights On Lock/Unlock” feature can be reactivated by repeating this procedure. Programming Additional Transmitters Vehicles will be shipped from the assembly plants with two key fob transmitters programmed only for that vehicle. A total of eight fobs can be programmed for your vehicle.
Page 24: General Information
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11. A single chime will be heard. 12. Repeat steps 8 through 10 to program up to six additional fobs. 13. Turn the ignition to the OFF position. 14. Your vehicle will remain in program mode up to 60 seconds from when the original chime was heard.
Page 25: Battery Replacement
Battery Replacement The recommended replacement battery is CR2032. 1. If the key fob is equipped with a screw, remove the screw. With the transmitter buttons facing down, use a flat blade (screw driver) to pry the two halves of the transmitter apart.
Page 26: Front Door Removal
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE shown in the VF display and will also continue to cycle. If the vehicle is moving, three single chimes will occur (One chime for each complete display cycle (three cycles total). After this, the display will continue to cycle only (no chimes).
Page 27: Rear Door Removal (4 Door Models)
2. Unplug wiring harness connector under instrument panel. 3. Unhook door strap from the body hook. Be careful not to allow door to swing fully open as mirror may damage paint. 4. With the door open, lift the door to clear hinge pins from their hinges, and remove door.
Page 28 28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Remove interior B-pillar trim access door at bottom of B-pillar. 4. Unplug wiring harness connector. 5. Unhook door strap from the body hook. 6. With the door open, lift the door to clear hinge pins from their hinges, and remove door.
Page 29: Door Locks
DOOR LOCKS The vacuum fluorescent (VF) display located in the odometer area displays the word “door” as an indication of a door ajar or door not completely closed. When the vehicle is not moving and the door is ajar or not completely closed, the VF display will show the word “door.”...
Page 30: Manual Door Locks
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Manual Door Locks The front (2 Door Models) and rear doors (4 Door Models) are equipped with a rocker-type interior door lock. To lock a door when leaving your vehicle, press to the “Lock”...
Page 31: Power Door Locks - If Equipped
Power Door Locks — If Equipped The door lock switch is located on each front door panel. Press the switch downward to lock the doors, and upward to unlock the doors. Power Door Lock Switch THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 WARNING! •...
Page 32: Windows
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WINDOWS Power Windows — If Equipped The power window switches are located on the instru- ment panel center stack (below the radio). The top left switch controls the left front window and the top right switch controls the right front window.
Page 33 automatically. To cancel the “Auto Down” movement, operate the switch in either the up or down direction and release the switch. To stop the window from going all the way down during the auto-down operation, pull up on the switch briefly. To open the window part way, press to the first detent and release it when you want the window to stop.
Page 34: Wind Buffeting
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE console. To disable the window controls, press the win- dow lockout button downward. To enable the window controls, press the window lockout button upward. Wind Buffeting Wind buffeting can be described as the perception of pressure on the ears or a helicopter type sound in the ears.
Page 35 To open the swing gate, press the button on the gate handle. Gate Handle NOTE: Close flip-up window before swing gate (hard top models only). THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 CAUTION! Do not press on rear wiper blade when closing swing gate, as damage to the blade will result.
Page 36: Occupant Restraints
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE OCCUPANT RESTRAINTS Some of the most important safety features in your vehicle are the restraint systems. These include the front and rear seat belts for the driver and all passengers, front airbags for both the driver and front passenger, and side airbags (if equipped) for both the driver and front passenger.
Page 37: Lap/Shoulder Belts
inside of the vehicle. Everyone in a motor vehicle should be belted at all times to reduce or prevent injuries. Lap/Shoulder Belts All seating positions in your vehicle have combination lap/shoulder belts. The belt webbing retractor is de- signed to lock during very sudden stops or collisions. This feature allows the shoulder part of the belt to move freely with you under normal conditions.
Page 38 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • Wearing a seat belt incorrectly is dangerous. Seat belts are designed to go around the large bones of your body. These are the strongest parts of your body and take the forces of a collision the best. Wearing your belt in the wrong place could make your injuries in a collision much worse.
Page 39 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 Latch Plate Latch Plate To Buckle 3. When the belt is long enough to fit, insert the latch plate into the buckle until you hear a “click.”...
Page 40 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! A belt that is buckled into the wrong buckle will not protect you properly. The lap portion could ride too high on your body, possibly causing internal injuries. Always buckle your belt into the buckle nearest you. A belt that is loose will not protect you as well.
Page 41 WARNING! A lap belt worn too high can increase the risk of internal injury in a collision. The belt forces won’t be at the strong hip and pelvic bones, but across your abdomen. Always wear the lap belt as low as pos- sible and keep it snug.
Page 42: Rear Center Lap/Shoulder Belt Retractor Lock-Out
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Rear Center Lap/Shoulder Belt Retractor Lock-Out This feature is designed to lock the retractor whenever the 60% rear seat back is not fully latched. This prevents someone from wearing the rear center lap/shoulder belt when the rear seat back is not fully latched.
Page 43: Adjustable Upper Shoulder Belt Anchorage
Adjustable Upper Shoulder Belt Anchorage In the front seat positions, the shoulder belt anchorage can be adjusted upward or downward to position the belt away from your neck. Push in on the anchorage near your outside shoulder and slide it up or down to reach the position that serves you best.
Page 44: Enhanced Seat Belt Use Reminder System (Beltalert)
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE seat belt by assuring that the belt is tight around the occupant early in a collision. Pretensioners work for all size occupants, including those in child restraints. NOTE: These devices are not a substitute for proper seat belt placement by the occupant.
Page 45: Seat Belts And Pregnant Women
1. Turn the ignition switch to the OFF position, and buckle the driver or front passenger seat belt. 2. Turn the ignition key to the ACCESSORY/RUN posi- tion (engine does not need to be running), and wait for the Seat Belt Warning Light to turn off. 3.
Page 46: Seat Belt Extender
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Seat Belt Extender If a seat belt is too short, even when fully extended and when the adjustable upper shoulder belt anchorage (if equipped) is in its lowest position, your dealer can provide you with a seat belt extender.
Page 47 the instrument panel, above the glove compartment. The words SRS/AIRBAG are embossed on the airbag covers. NOTE: The front airbags are certified to the Federal regulations that allow less forceful deployment. The front airbags have a multistage inflator design. This may allow the airbag to have different rates of inflation that are based on collision severity and occupant size.
Page 48 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • Do not put anything on or around the front airbag covers or attempt to manually open them. You may damage the airbags and you could be injured be- cause the airbags are no longer functional. These protective covers for the airbag cushions are de- signed to open only when the airbags are inflating.
Page 49 severe side collisions. In certain types of collisions, both the front and side airbags may be triggered. But even in collisions where the airbags work, you need the seat belts to keep you in the right position for the airbags to protect you properly.
Page 50 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. If your vehicle has side airbags, do not lean against the door, airbags will inflate forcefully into the space be- tween you and the door. 5. If the airbag system in this vehicle needs to be modified to accommodate a disabled person, contact the Customer Center.
Page 51 Airbag System Components The airbag system consists of the following: • Occupant Restraint Control Module • Airbag Warning Light • Driver Airbag • Passenger Airbag • Front Seat Mounted Side Airbags (If Equipped) • Steering Wheel and Column • Instrument Panel •...
Page 52 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE the START or ON positions. These include all of the items listed above except the knee bolster, the instru- ment panel, and the steering wheel and column. If the key is in the LOCK position, in the ACC position, or not in the ignition, the airbags are not on and will not inflate.
Page 53 the driver and front passenger when the front passen- ger airbag is turned off. The “PAD Indicator Light” illuminates the words PASS AIR BAG OFF to show that the passenger airbag will not inflate during a collision requiring airbags. When the right front pas- senger seat is empty or when very light objects are placed on the seat, the passenger airbag will not inflate even though the “PAD Indicator Light”...
Page 54 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE adult passenger is properly seated in the front passen- ger seat. In this case, the airbag is ready to be inflated if a collision requiring an airbag occurs. For almost all properly installed rear facing child re- straints, the “PAD Indicator Light”...
Page 55 will cause the system to turn the airbag on. In this case, the OCS has classified the occupant of the seat as an adult. An adult occupant needs to sit in a normal position (with their feet on or near the floor) in order to be properly classified.
Page 56 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE lodged under the seat and interferes with operation of the weight sensors, a fault will occur which turns on both the “PAD Indicator Light” and the “Airbag Warning Light.” Once the lodged object is removed, the fault will be automatically cleared after a short period of time.
Page 57 • The Side Impact (SRS) Seat Mounted Side Airbags (If Equipped) are designed to activate only in certain side collisions. The ORC module determines if a side collision is severe enough to require the side airbags to inflate. The ORC Module monitors the readiness of the electronic parts of the system whenever the ignition switch is in the START or ON positions.
Page 58 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Do not use prior or future model year seat covers not designated for the specific model being repaired. Al- ways use the correct seat cover specified for the vehicle. • Do not replace the seat cover with an aftermarket seat cover.
Page 59 NOTE: A frontal collision that is not severe enough to need airbag protection will not activate the system. This does not mean something is wrong with the airbag system. If you do have a collision which deploys the airbags, any or all of the following may occur: •...
Page 60 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Deployed airbags and seat belt pretensioners cannot protect you in another collision. Have the airbags, seat belt pretensioner, and seat belt retractor assem- bly, replaced by an authorized dealer as soon as possible.
Page 61 Airbag Warning Light You will want to have the airbag system ready to inflate for your protection in an impact. The airbag system is designed to be maintenance free. If any of the following occurs, have an authorized dealer service the system promptly: •...
Page 62 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE provided to the custodial entity upon request. General data that does not identify particular vehicles or crashes may be released for incorporation in aggregate crash databases, such as those maintained by the US govern- ment and various states.
Page 63: Child Restraint
Child Restraint Everyone in your vehicle needs to be buckled up at all times — babies and children, too. Every state in the United States and all Canadian provinces require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it.
Page 64 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The infant carrier is only used rearward-facing in the vehicle. It is recommended for children who weigh up to about 20 lbs (9 kg). “Convertible” child seats often have a higher weight limit in the rearward-facing direction than infant carriers do, so they can be used rearward-facing by children who weigh more than 20 lbs (9 kg) but are less than one year old.
Page 65 Standards. The manufacturer also recommends that you try a child restraint in the vehicle seats where you will use it before you buy it. • The restraint must be appropriate for your child’s weight and height. Check the label on the restraint for weight and height limits.
Page 66 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Buckle the child into the restraint exactly as the manufacturer’s instructions tell you. • When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from the vehicle. Do not leave it loose in the vehicle.
Page 67 • The lap portion should be low on the hips and as snug as possible. • Check belt fit periodically. A child’s squirming or slouching can move the belt out of position. • If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle.
Page 68 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE head restraint and attached to the tether anchor on the rear of the seat back. Then tighten all three straps as you push the child restraint rearward and downward into the seat. Not all child restraint systems will be installed as we have described here.
Page 69 kits or retro-fit kits. You are urged to take advantage of all the available attachments provided with your child re- straint in any vehicle. NOTE: When using the LATCH attaching system to install a child restraint, please ensure that all seat belts not being used for occupant restraints are stowed and out of reach of children.
Page 70 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing the LATCH-Compatible Child Restraint System We urge that you carefully follow the directions of the manufacturer when installing your child restraint. Not all child restraint systems will be installed as described here. Again, carefully follow the installation instructions that were provided with the child restraint system.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 Latch Anchorages (4 Door Models) Tether Strap Mounting (2 Door Models) In addition, there are tether strap anchorages behind each rear seating position located on the back of the seat.
Page 72 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Tether Strap Mounting (4 Door Models) Many, but not all restraint systems will be equipped with separate straps on each side, with each having a hook or connector for attachment to the lower anchorage and a means of adjusting the tension in the strap.
Page 73 WARNING! Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be badly injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint. Installing Child Restraints Using the Vehicle Seat Belt The passenger seat belts are equipped with automatic...
Page 74 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE to do something more. Disconnect the latch plate from the buckle, turn the buckle around, and insert the latch plate into the buckle again. If you still can’t make the child restraint secure, try a different seating position. To attach a child restraint tether strap: Tether Strap Mounting (2 Door Models) Tether Strap Mounting (4 Door Models)
Page 75: Engine Break-In Recommendations
WARNING! An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchor positions directly behind the child seat to secure a child restraint top tether strap. Transporting Pets Airbags deploying in the front seat could harm your pet. An unrestrained pet will be thrown about and possibly injured, or injure a passenger during panic braking or in a collision.
Page 76: Safety Tips
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A new engine may consume some oil during its first few thousand miles (kilometers) of operation. This should be considered as a normal part of the break-in and not interpreted as an indication of difficulty. SAFETY TIPS Exhaust Gas WARNING!
Page 77: Safety Checks You Should Make Outside The Vehicle
side curtains are also open. This will prevent carbon monoxide and other poisonous exhaust gases from entering the vehicle. Safety Checks You Should Make Inside The Vehicle Seat Belts Inspect the belt system periodically, checking for cuts, frays and loose parts. Damaged parts must be replaced immediately.
Page 78 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Lights Have someone observe the operation of all exterior lights while you work the controls. Check turn signal and high beam indicator lights on the instrument panel. Fluid Leaks Check area under vehicle after overnight parking for fuel, coolant, oil, or other fluid leaks.
Page 79: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors .......83 Inside Day/Night Mirror ....83 Outside Mirrors .
Page 80 80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Interior Lights ......94 Multi-Function Control Lever ....96 Parking Lights, Instrument Panel Lights, And Headlights .
Page 81 TCS (Traction Control System) ... . 106 BAS (Brake Assist System) ....106 ERM (Electronic Roll Mitigation) ..107 ESP (Electronic Stability Program) .
Page 82 82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Door Frame ......167 Door Frame Removal (2 Door Models) ..167 Door Frame Installation (2 Door Models) .
Page 83: Mirrors
MIRRORS Inside Day/Night Mirror The mirror should be adjusted to center on the view through the rear window. A two-point pivot system allows for horizontal and vertical adjustment of the mirror. Adjusting Rearview Mirror UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83 Annoying headlight glare can be reduced by moving the small control under the mirror to the night position (toward rear of vehicle).
Page 84: Understanding The Features Of Your Vehicle
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Outside Mirrors To receive maximum benefit, adjust the outside mirror(s) to center on the adjacent lane of traffic with a slight overlap of the view obtained on the inside mirror. Outside Rear View Mirror WARNING! •...
Page 85: Seats
SEATS WARNING! Adjusting a seat while the vehicle is moving is dangerous. The sudden movement of the seat could cause you to lose control. The seat belt might not be properly adjusted and you could be injured. Adjust any seat only while the vehicle is parked. Front Seat Adjustment Move seat forward or rearward by lifting the lever.
Page 86: Manual Seat Height Adjustment - If Equipped
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Seat Height Adjustment — If Equipped The driver’s seat height can be raised or lowered, by using the ratcheting handle on the outboard side of the seat. Pull upward on the handle to raise the seat, push downward on the handle to lower the seat.
Page 87: Front Passenger Easy Entry Seat (2 Door Models)
Front Passenger Easy Entry Seat (2 Door Models) Push the lever on the seatback rearward (toward the rear of the vehicle) to tilt the entire seat forward. Easy Entry Lever UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87 Head Restraints Head restraints can reduce the risk of whiplash injury in the event of impact from the rear.
Page 88: Fold And Tumble Rear Seat (2 Door Models)
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Fold And Tumble Rear Seat (2 Door Models) NOTE: Prior to folding the rear seat, it may be necessary to reposition the front seats. Also, be sure that the front seats are fully upright and positioned forward.
Page 89: Removing The Rear Seat (2 Door Models)
2. Slowly flip the entire seat forward. Folding Rear Seat 3. When completed, return seat to it’s normal position. 4. Raise the rear seatback using the assist strap and firmly lock seat into position. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89 Removing the Rear Seat (2 Door Models) WARNING! •...
Page 90 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 1. Remove the rear subwoofer (if equipped) mounting screws (3) using a #T30 Torx head driver. Subwoofer 2. Unplug electrical connector from rear subwoofer (if equipped). 3. Fold the rear seat forward following steps 1 through 3 under “Fold and Tumble Rear Seat”...
Page 91: Replacing The Rear Seat (2 Door Models)
Replacing the Rear Seat (2 Door Models) Reverse steps for removing the seat. WARNING! • To help protect against personal injury, passen- gers should not be seated in the rear cargo area with the rear seat folded down or removed from the vehicle.
Page 92 92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Fold Down the Rear Seat 1. Locate the seatback release handle on the outboard top side of each rear seatback; lift up on the handle until the seatback releases. Fold the seatback completely forward. Rear Seat Release NOTE: When lifting up on the release handle, the seatback will release easier if you do not pull forward on...
Page 93: To Raise The Rear Seat
To Raise the Rear Seat 1. Raise the seatback and lock it into place. If interference from the cargo area prevents the seatback from fully locking, you will have difficulty returning the seat to its proper position. NOTE: If the rear seatback is not fully latched, the center shoulder belt will not be able to be extended for use.
Page 94: Lights
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE have to push down slightly on hood before pushing the handle. Insert the support rod into the slot on the hood panel. To close the hood, remove the support rod from the hood panel and place it in the retaining clip.
Page 95 Cargo Lamp Courtesy and dome lights are turned on when the front doors are opened, when the dimmer control (rotating wheel on the right side of the switch) is rotated to the upward detent position, or if equipped, when the “Un- lock”...
Page 96: Multi-Function Control Lever
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Daytime Brightness Feature Certain instrument panel components (odometer, radio display) can be illuminated at full brightness during the daytime. This can be helpful when driving with your headlights on during the daytime such as in a parade or a funeral procession.
Page 97: Parking Lights, Instrument Panel Lights, And Headlights
Parking Lights, Instrument Panel Lights, and Headlights Turn the end of the multi-function control lever to the first detent for parking lights and instrument panel lights. Turn to the second detent for headlight operation. Headlight Switch UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 To change the brightness of the instrument panel lights, rotate the center portion of the multi-function control lever up or down.
Page 98: Passing Light
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Passing Light You can signal another vehicle with your headlights by lightly pulling the multi-function control lever toward the steering wheel. This will cause the headlights to turn on at high beam and remain on until the lever is released. Front Fog Lights —...
Page 99: Daytime Running Lights - If Equipped
Daytime Running Lights — If Equipped The headlights come on at a low intensity level after the vehicle has been driven approximately 3 feet (1 meter). They will turn off when the vehicle is turned off or when the headlights are switched on. WINDSHIELD WIPERS AND WASHERS CAUTION! In cold weather, always turn off the wiper switch...
Page 100: Windshield Wiper Operation
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Windshield Wiper Operation Move the lever upward to the second detent for LO speed wiper operation, or to the third detent for HI speed operation Windshield Wiper/Washer Switch Windshield Washers To use the washer, pull the lever toward you and hold while spray is desired.
Page 101: Tilt Steering Column
TILT STEERING COLUMN To tilt the column, push down on the lever under the multi-function control lever and move the wheel up or down, as desired. Pull the lever back upwards to lock the column firmly in place. Tilt Steering Column UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 WARNING! Tilting the steering column while the vehicle is...
Page 102: Electronic Speed Control - If Equipped
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ELECTRONIC SPEED CONTROL — IF EQUIPPED When engaged, this device takes over the accelerator operation at speeds greater than 35 mph (56 km/h). The speed control lever is located on the right side of the steering wheel.
Page 103: To Set At A Desired Speed
To Set At A Desired Speed When the vehicle has reached the desired speed, press down on the lever and release. Release the accelerator and the vehicle will operate at the selected speed. NOTE: The vehicle should be traveling at a steady speed and on level ground before pressing the SET lever.
Page 104: Manual Transmission
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Tapping the “SET DECEL” button once will result in a 1 mph (2 km/h) speed decrease. Each time the button is tapped, speed decreases. Manual Transmission Depressing the clutch pedal will disengage the speed control.
Page 105: Electronic Brake Control System
On steep hills, a greater speed loss or gain and/or more frequent downshifts (auto transmission only) may occur so it may be preferable to drive without speed control. ELECTRONIC BRAKE CONTROL SYSTEM Your vehicle is equipped with an advanced electronic brake control system that includes ABS (Anti-Lock Brake System), TCS (Traction Control System), BAS (Brake Assist System), ERM (Electronic Roll Mitigation), and...
Page 106: Tcs (Traction Control System)
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE TCS (Traction Control System) This system monitors the amount of wheel spin of each of the driven wheels. If wheel spin is detected, brake pressure is applied to the slipping wheel(s) to provide enhanced acceleration and stability.
Page 107: Erm (Electronic Roll Mitigation)
WARNING! BAS (Brake Assist System) cannot prevent the natu- ral laws of physics from acting on the vehicle, nor can it increase the traction afforded by prevailing road conditions. BAS cannot prevent accidents, in- cluding those resulting from excessive speed in turns, driving on very slippery surfaces, or hydro- planing.
Page 108: Esp (Electronic Stability Program)
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Anytime the ESP system is in the “Full Off” mode, ERM is disabled. Refer to ESP (Electronic Stability Program) for a complete explanation of the available ESP modes. WARNING! Many factors, such as vehicle loading, road condi- tions and driving conditions, influence the chance that wheel lift or rollover may occur.
Page 109 • Understeer - when the vehicle is turning less than appropriate for the steering wheel position. The ESP/TCS Indicator Light located in the instrument cluster, starts to flash as soon as the tires lose traction and the ESP system becomes active. The ESP/TCS Indicator Light also flashes when TCS is active.
Page 110 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE High Range (4WD Models) or 2WD Models This is the normal operating mode for ESP in 4WD high range and in 2WD vehicles. Whenever the vehicle is started or the transfer case (if equipped) is shifted from 4WD low range or neutral back to 4WD high range, the ESP system will be in this mode.
Page 111 gravel, it may be desirable to switch to the “Partial Off” mode by pressing the ESP switch. Once the situation requiring ESP to be switched to the “Partial Off” mode is overcome, turn ESP back on by momentarily depressing the “ESP Control Switch”. This may be done while the vehicle is in motion.
Page 112 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! With the ESP switched off, the enhanced vehicle stability offered by ESP and ERM are unavailable. In an emergency evasive maneuver, the ESP and ERM systems will not engage to assist in maintaining stability.
Page 113: Esp/Bas Warning Lamp
WARNING! With the ESP switched off, the enhanced vehicle stability offered by ESP and ERM are unavailable. In an emergency evasive maneuver, the ESP and ERM systems will not engage to assist in maintaining stability. The “Full Off” mode is intended for off- highway or off-road use only.
Page 114: Electrical Power Outlet
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ELECTRICAL POWER OUTLET This vehicle has two auxiliary power outlets that can provide up to 20 Amps of current for accessories de- signed for use with the standard power outlet adapters. The outlet located in the lower portion of the instrument panel has a snap on plastic cap so that it can be covered when not in use.
Page 115: Electrical Outlet Use With Engine Off
Electrical Outlet Use With Engine Off WARNING! • Many accessories that can be plugged in draw power from the vehicle’s battery, even when not in use (i.e. cellular phones, etc.). Eventually, if plugged in long enough, the vehicle’s battery will discharge sufficiently to degrade battery life and/or prevent engine starting.
Page 116: Storage
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The rear passengers have cup holders at the rear of the center console. Rear Cup Holders STORAGE Console Storage Compartment To lock or unlock, insert ignition key and turn. To open, press the latch and lift cover. Center Console...
Page 117: Rear Storage Compartment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 Rear Storage Compartment The rear storage compartment cover is held by a spring loaded latch. In order to remove the rear storage com- partment cover, use the following procedure: NOTE: The rear storage compartment latch should not be used as cargo tie-down.
Page 118: Dual Top - If Equipped
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE DUAL TOP — IF EQUIPPED If your vehicle is equipped with a Dual Top, you must remove one of the tops from the vehicle. If the soft top is removed, the pivot brackets must also be removed from the sport bar.
Page 119 3. Remove the soft top bow assembly pivot bracket screws (2 per side) using a #T30 Torx head driver. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 4. Using a rubber mallet, carefully tap the knuckles from the left and right metal pivot brackets. Remove the soft top from the vehicle and store in a clean, dry location.
Page 120: Installing The Soft Top
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 5. Unzip the zipper on the sport bar cover to expose the pivot brackets. Remove the brackets using a #T30 Torx head driver. Recover and re-zip the sports bar cover. Store pivot brackets and screws in a safe place. 6.
Page 121 4. If the soft top has been removed, follow these steps to reinstall the soft top. If the soft top is on the vehicle, proceed to step #5. a. If the pivot brackets have been removed, unzip the sport bar covers and attach the pivot brackets to the sports bar with the 4 screws that were removed using a #T30 Torx head driver.
Page 122 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE c. Tap the knuckles on the side with a rubber mallet to reattach them to the metal pivot brackets. d. Screw the pivot screws back into place using a #T30 Torx head driver. Secure them until they are snug being careful not to cross-thread the screws or over tighten.
Page 123: Freedom Top 3- Piece Modular Hard Top
5. Unsnap and remove the black boot cover. This cover should be discarded. It was intended as a protective cover for shipping only. NOTE: A visual instruction sheet is enclosed in the dual top wrap. 6. Remove the swing gate bar (black metal bar for bottom of rear window) located in the soft top and set aside.
Page 124: Front Panel(S) Removal
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Do not move your vehicle until the top has been either fully attached to the windshield frame and bodyside, or fully removed. Front Panel(s) Removal NOTE: Left panel must be removed before removing right panel.
Page 125 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 3. Turn rear dial (located above shoulder belt anchorage). 4. Turn rear fastener (knob) (located on overhead speaker bar assembly).
Page 126: Front Panel(S) Installation
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 5. Unlatch the header panel latch located at the top of the windshield. 6. Remove panel. To remove right panel, follow steps above except for step Front Panel(s) Installation NOTE: The front panel (s) must be positioned properly to ensure sealing.
Page 127 4. Unbolt the Torx head screws (4 for 2 door models) (6 for 4 door models) which secure the hard top to the vehicle using a #40 Torx head driver. 5. Open swing gate all the way to ensure clearance of the rear window glass.
Page 128 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 7. Disconnect the washer hose and install the tethered cap. CAUTION! Make sure storage cap is installed to prevent foreign materials from entering tube and clogging system. 8. Disconnect the wire harness from the hard top by pressing the tab at the side of the connector and pulling to disconnect.
Page 129: Rear Panel Installation
9. Remove the hard top from the vehicle. Place on a soft surface to prevent damage. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 Rear Panel Installation NOTE: If the door frames are installed from soft top usage, they must be removed prior to installation of the hard top.
Page 130: Soft Top (2 Door Models)
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE SOFT TOP (2 DOOR MODELS) CAUTION! • The soft top is not designed to carry any addi- tional loads such as roof racks, spare tires, build- ing, hunting, or camping supplies, and/or lug- gage, etc.
Page 131: Folding Down The Soft Top
CAUTION! • Do not run a fabric top through an automatic car wash. Window scratches and wax build up may result. • Do not lower the top when the temperature is below 41°F (5°C). Damage to the top may result. •...
Page 132 132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE etc., clean them with a mild soap solution and a small brush. Cleaning products are available through your authorized dealer. 1. If your vehicle has half doors, remove each half door window by opening the door and lifting the half door window out.
Page 133 4. Release the header latches and leave the hooks in the loops on the windshield. 5. Open the swing gate. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 6. Untuck the first three (3) inches of both sail panels, and pull the swing gate bar straight rearward out of the swing gate brackets (prior to unzipping the window).
Page 134 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Unzip the rear window starting at the right lower corner of the window. Pull the zipper up, across the top and down to the left lower corner. Zipper pulls will stay on the rear window. Pull down on the rear window to disengage from the zipper on the top cover.
Page 135 10. Remove the bottom retainers of the sail panels from the body side retainer at the rear corners of the vehicle. NOTE: It is helpful to pull down on the 3 bow. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 11. As you begin to lower the top, fold the sail panels so that they rest on top of the soft top.
Page 136 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 12. The swing gate brackets do not need to be removed unless the hard top is being installed. To remove the swing gate brackets, pull the front side of clip forward and up to disengage from the bodyside retainer. 13.
Page 137 14. Grasp the side bow behind the header, lift the top, and fold toward the rear of the vehicle. 15. Tuck the fabric and the check straps between the bows and as far inward as possible. This will keep any portion of the top from flapping outside of the vehicle.
Page 138: Putting Up The Soft Top
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Putting Up The Soft Top 1. Unclip and move the sun visors to the side. 2. Standing on the side of the vehicle, lift the top by the side bow and the 2–bow (middle bow) up and over the sports bar until the header rests on the top of the windshield frame.
Page 139 5. If the swing gate brackets were removed, install them by hooking the front edge on the body side retainer and rotate it downward until it snaps onto the rail. Ensure that the clips are properly located. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 6.
Page 140 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 7. Tuck the sail panel retainers into the bodyside retainer. It may be necessary to pull down slightly at the top of the 3 bow to bring the retainers into place. 8. To install the quarter window, affix the upper rear corner of the window temporarily to the Velcro .
Page 141 9. Tuck the front retainer into the door frame slot. Ensure that the retainer is fully rolled around and properly positioned into the door frame. Failure to do so will result in possible damage along with wind and water leaks. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 10.
Page 142 142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 11. Tuck the bottom retainer of the quarter window into the bottom retainer, beginning at the front and working to the rear of the vehicle. Finish zipping the window and attach the Velcro along the top and rear of the window. Repeat this step for the other side.
Page 143 14. Install the rear window by starting both zipper ends at the lower left corner of the rear window opening. Ensure that the zippers are properly started and aligned before zipping to prevent damage. 15. Run the zipper fully around to the right side of the window.
Page 144 144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 19. Open the doors and tuck the plastic retainers into the door frame slots above the door opening. Start at the front and work toward the rear of the vehicle. 20. Close the header latches and return the sun visors to their secured position.
Page 145: Soft Top (4 Door Models)
SOFT TOP (4 DOOR MODELS) CAUTION! • The soft top is not designed to carry any addi- tional loads such as roof racks, spare tires, build- ing, hunting, or camping supplies, and/or lug- gage, etc. Also, it was not designed as a structural member of the vehicle, and thus cannot properly carry any additional loads other than environmen- tal (rain, snow, etc.).
Page 146: Folding Down The Soft Top
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! • Do not run a fabric top through an automatic car wash. Window scratches and wax build up may result. • Do not lower the top when the temperature is below 41°F (5°C). Damage to the top may result. •...
Page 147 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 etc., clean them with a mild soap solution and a small brush. Cleaning products are available through your authorized dealer. 1. If your vehicle has half doors, remove each half door window by opening the door and lifting the half door window out.
Page 148 148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 4. Release the header latches and hooks from the loops on the windshield frame. 5. Open the swing gate. 6. Untuck the first three (3) inches of both sail panels, and pull the swing gate bar straight rearward out of the swing gate brackets (prior to unzipping the window).
Page 149 • Unzip the rear window starting at the right lower corner of the window. Pull the zipper up, across the top and down to the left lower corner. Zipper pulls will stay on the rear window. Pull down on the rear window to disengage from the zipper on the top cover.
Page 150 150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 10. Remove the bottom retainers of the sail panels from the body side retainer at the rear corners of the vehicle. NOTE: It is helpful to pull down on the 4 bow. 11. Fold the sail panels so that they rest on top of the soft top.
Page 151 12. The swing gate brackets do not need to be removed unless the hard top is being installed. To remove the swing gate brackets, pull the front side of clip forward and up to disengage from the bodyside retainer. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 13.
Page 152 152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 14. Fold back the front section of the top, and gently rest the header on top of the rear portion of the deck. 15. Fold the top material so that the plastic retainers form a “W”...
Page 153 16. Release the side bows by pressing down on the latch above the front of the rear door. Push the top rearward to disengage. Repeat this step on the other side. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153 17. Grasp the folded side bows and slide the top along the door frame track to the rear door frame.
Page 154 154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 18. Gently slide the side bows off the door frame track and lower the top down into the vehicle. 19. Tuck the fabric and the check straps between the bows as far inside as possible. This will keep any portion of the top from flapping outside of the vehicle.
Page 155: Putting Up The Soft Top
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 Putting Up The Soft Top NOTE: Be extremely careful when putting up the soft top to prevent the doors from getting scratched. It may be helpful to open the rear doors. 1. Undo the straps used to secure the top in the down position and store in secure location.
Page 156 156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 4. Engage the slider feature of the knuckles into the door frame tracks and slide the top forward. 6. Unclip and move the sun visors to the side. 5. Ensure that the top locks into Sunrider locking mecha- nisms that are located above the front of the rear doors.
Page 157 7. Standing on the side of the vehicle, lift the top by the side bow until it rests on the windshield frame. 8. Before attaching the header latches, be sure the drip retainers above the door opening are not trapped be- tween the top and the door frame.
Page 158 158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 10. If the swing gate brackets were removed, install them by hooking the front edge on the body side retainer and rotate it downward until it snaps onto the rail. Ensure that the clips are properly located. 11.
Page 159 13. To install the quarter window, affix the upper rear corner of the window temporarily to the Velcro . Start and zip the zipper only about 1 inch (2.5 cm). At this time it is necessary to tuck in the door frame retainer. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 14.
Page 160 160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 15. Continue zipping the window to the upper rear corner. 16. Tuck the bottom retainer of the quarter window into the bottom retainer, beginning at the front and working to the rear of the vehicle. Finish zipping the window and attach the Velcro along the top and rear of the window.
Page 161 18. Locate the black swing gate bar. Slide the swing gate bar over the receiver at the bottom inside of the rear window, with the bulky seal away from you. 19. Install the rear window by starting both zipper ends at the lower left corner of the rear window opening.
Page 162 162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 22. Grasp the swing gate bar and position it into the swing gate brackets. 23. Completely tuck the sail panel into the bodyside retainer. 24. Open the doors and tuck the plastic retainers into the door frame slots above the door opening.
Page 163: Sunrider - 4 Door Models
25. Ensure plastic retainer is tucked in properly at B-pillar not pinching seal. 26. Close the header latches and return the sun visors to their secured position. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 SUNRIDER — 4 DOOR MODELS NOTE: If you are going to be driving faster than 40 mph (64 km/h) with the Sunrider feature open, it is recom- mended that you remove the rear window of the vehicle.
Page 164 164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Open 1. Above the front of the rear door, place finger up into the cut out in the plastic retainer and pull down rolling both the front and rear retainers out of the door frame. Repeat this on the other side.
Page 165 4. Grasp the front side bow behind the header, and lift the top. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165 5. Fold back the front section of the top, and gently rest the header on top of the rear portion of the deck.
Page 166 166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 6. Fold the top material so that the plastic retainers form a “W” as shown. Enter the vehicle, and move the material into two folds. Ensure that the straps are securely stowed. 7. Secure the top by using the two (2) provided straps. Each strap will wrap around the side bow and Velcro to itself, use one strap on each side of the vehicle.
Page 167: Door Frame
DOOR FRAME WARNING! Do not drive your vehicle on-pavement with the door frame removed as you lose the protection these structural elements can provide. This procedure is furnished for use during off-road operation only. Door Frame Removal (2 Door Models) 1.
Page 168 168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Place one hand on the upper rear and one hand on the front of the door frame. 3. Pull the frame towards you with your rearward hand to remove the frame from the vehicle. 4.
Page 169: Door Frame Installation (2 Door Models)
Door Frame Installation (2 Door Models) 1. Unfold door frame and unscrew thumbscrews. 2. Set the door frame pin into the hole on top of the body side, behind the door opening. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 3. After the door frame pin has been set into the bodys- ide hole, carefully set the front of the door frame into the rubber seal at the top of the windshield.
Page 170: Door Frame Removal (4 Door Models)
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 5. Starting with the front knob, screw in and tighten both knobs. Repeat on the other side. Door Frame Removal (4 Door Models) 1. Unscrew and remove the two (2) forward most door frame attachment knobs.
Page 171 WARNING! Use both hands to remove the door frames. The door frames will fold and could cause injury if both hands are not used. 2. Place one hand on the upper rear and one hand on the upper front of the front door frame. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 3.
Page 172 172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 4. Unscrew and remove the remaining door frame at- tachment knob on the rear door frame. 5. Place one hand on the upper rear and one hand on the upper front of the rear door frame. Pull the frame towards you with your rear hand to remove the frame from the vehicle.
Page 173: Door Frame Installation (4 Door Models)
6. Screw the knob back into the door frame and fold for storage. Store in a secure location. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 WARNING! • Never store the door frames in your vehicle. In an event of an accident, a loose door frame many cause personal injury.
Page 174 174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Set the door frame pin into the hole on top of the body side, just behind the rear door opening. 3. Position the top of the door frame against the metal sport bar and press onto the side bar making sure not to pinch the material of the sports bar covers and to ensure it is properly positioned on the seal above the front of the rear door.
Page 175 door frame. Position the rear of the front door frame to lay on top of the front of the rear door frame. 6. Loosely install both knobs beginning with the front knob (long knob). Then, install the middle knob (short knob) through the front and rear door frames and screw into the top of the b-pillar.
Page 176: Folding Windshield
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE FOLDING WINDSHIELD The fold down windshield and removable side bars on your vehicle are structural elements that can provide some protection in some accidents. The windshield also provides some protection against weather, road debris and intrusion of small branches and other objects.
Page 177: Lowering The Windshield And Removing Side Bars
WARNING! Carefully follow these warnings to help protect against personal injury: • Do not drive your vehicle on-road with the wind- shield down. • Do not drive your vehicle unless the windshield is securely fastened, either up or down. • Eye protection, such as goggles, should be worn at all times when the windshield is down.
Page 178 178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Remove the 2 top hex bolts (13mm), and the 1 side hex bolt (13mm) visible through the trim (Do not remove plastic corner trim, sun visor bolts, or sport bar covering). 3. Open sport bar Velcro covering. 4.
Page 179 CAUTION! Do not remove the head impact foam from the side bars, as damage to the foam may result. NOTE: Store all of the mounting bolts in their original threaded holes and tighten for safekeeping. 5. Remove side bar assembly, and reattach sport bar Velcro covering.
Page 180: Raising The Windshield And Replacing Side Bars
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 8. Remove the lower windshield plates by removing the 6 black round headed Torx head screws (using a #40 Torx head driver) on each side of the base of the windshield. 9. Lower the windshield gently until it contacts the rubber hood bumpers.
Page 181 2. Loosely attach rear of side bar to sport bar. Refer to Step 4 of “Lowering Windshield and Removing Side Bars” earlier in this section. • Reattach sport bar Velcro covering. 3. Attach front of side bar to windshield frame. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181 •...
Page 182: Rear Window Features - Hard Top Only
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 5. Install the lower windshield plates with the 6 black round headed Torx head screws (using a #40 Torx head driver) on each side of the base of the windshield. 6. Reinstall wiper arms. REAR WINDOW FEATURES —...
Page 183 Windshield Wiper/Washer Switch If the rear wiper is operating when the ignition is turned OFF, the wiper will automatically return to the “Park” position. When the vehicle is restarted, the wiper will resume function at whichever position the switch is set UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183 If the swing gate flip-up window is open or the swing gate is open, connection to the rear window wiper is...
Page 184: Rear Window Defroster - If Equipped
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE level at regular intervals. Fill the reservoir with wind- shield washer solvent (not radiator antifreeze) and oper- ate the system for a few seconds to flush out the residual water. Rear Window Defroster — If Equipped The push-button is located on the bottom right side of the blower control knob.
Page 185: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS Instrument Panel And Controls ... . . 188 Instrument Cluster ..... . 189 Instrument Cluster Description .
Page 186 186 UNDERSTANDING YOUR INSTRUMENT PANEL Notes On Playing MP3/WMA Files ..214 List Button (Disc Mode For MP3/WMA Play) ..217 Info Button (Disc Mode For MP3/WMA Play) ..217 Sales Code RES —...
Page 187 CD/DVD Disc Maintenance ....237 Radio Operation And Cellular Phones ..237 Climate Controls ..... . . 238 Manual Heater Only .
Page 188: Understanding Your Instrument Panel
188 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT PANEL AND CONTROLS...
Page 189: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 189 INSTRUMENT CLUSTER...
Page 190: Instrument Cluster Description
190 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER DESCRIPTION Your vehicle is equipped with the instrument cluster described on the following pages. 1. Fuel Gauge The pointer shows the level of fuel in the fuel tank. When the fuel gauge pointer initially moves to E, for your safety, approximately 2 U.S.
Page 191 7. Seat Belt Indicator Light A warning chime and an indicator light will alert you to buckle the seat belts. When the belt is buckled, the chime will stop, but the light will stay on until it times out (about 6 seconds). 8.
Page 192 192 UNDERSTANDING YOUR INSTRUMENT PANEL If the parking brake is applied and the vehicle is in motion, the red BRAKE warning light will “flash” and a chime will sound. The operation of the BRAKE warning light can be checked by turning the ignition switch from the OFF position to the ON position.
Page 193 CAUTION! Do not operate the engine with the tachometer pointer in the red area. Engine damage will occur. 16. Engine Coolant Temperature Warning Light This light warns of an overheated engine condi- tion. If the engine is critically hot, a warning chime will sound 10 times.
Page 194 194 UNDERSTANDING YOUR INSTRUMENT PANEL 22. Transmission Range Indicator This display indicator shows the automatic transmission gear selection. 23. Tire Pressure Monitoring Telltale Light — If Equipped Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label.
Page 195 and off for 60 seconds when a system fault is detected. The flash cycle will repeat every ten minutes or until the fault condition is removed and reset. CAUTION! The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures and warnings have been established for the tire size equipped on your vehicle.
Page 196 196 UNDERSTANDING YOUR INSTRUMENT PANEL stays on through several typical driving styles. In most situations, the vehicle will drive normally and will not require towing. When the engine is running, the “Malfunction Indicator Light” may flash to alert serious conditions that could lead to immediate loss of power or severe catalytic converter damage.
Page 197 engine running, a malfunction has been detected in either the ESP or the BAS system. If this light stays illuminated, have the ESP and BAS checked at your authorized dealer as soon as possible. Refer to “Electronic Brake Control System” in Section 5 for more information. 30.
Page 198: Compass And Trip Computer - If Equipped
198 UNDERSTANDING YOUR INSTRUMENT PANEL COMPASS AND TRIP COMPUTER — IF EQUIPPED This feature, located on the instrument cluster (speedom- eter and tachometer), displays information on outside temperature, compass direction, and trip information. The compass/trip computer, when the appropriate con- ditions exist, will show the following messages in the odometer display: •...
Page 199: Trip Conditions
Press and hold the left button (on the instrument cluster) for 2 to 3 seconds to switch from English to Metric displays. Reset Press and hold the right button (on the instrument cluster) while function is being displayed to reset. The following trip conditions can be reset: •...
Page 200: Compass Temperature Display
200 UNDERSTANDING YOUR INSTRUMENT PANEL Trip A Shows the total distance traveled for trip A since the last reset. Trip B Shows the total distance traveled for trip B since the last reset. Compass Temperature Display This display provides the outside temperature and one of eight compass readings to indicate the direction the vehicle is facing.
Page 201 After initial calibration, the compass will continue to automatically update this calibration whenever the ve- hicle is in motion. Manual Compass Calibration NOTE: Before attempting a manual compass calibra- tion, the engine must be running and the transmission in the P (Park) position (if equipped). Compass calibration can also be requested.
Page 202 202 UNDERSTANDING YOUR INSTRUMENT PANEL symbol appears. The current variance value will also be displayed. To change the zone, press the left button once to increment the zone. The default is Zone 8. After Zone 15, the values will wrap around to Zone 1. When the correct zone is displayed (per the Zone map) for the zone that the vehicle is located in, wait for about 5 seconds, then the trip computer will store the variance value in...
Page 203: Radio General Information
Outside Temperature If the outside temperature is more than 131°F (55°C), the display will show 131°F (55°C). When the outside tem- perature is less than 40°F ( 40°C), the display will show 40°F ( 40°C). RADIO GENERAL INFORMATION Radio Broadcast Signals Your new radio will provide excellent reception under most operating conditions.
Page 204: Fm Reception
204 UNDERSTANDING YOUR INSTRUMENT PANEL FM Reception Because FM transmission is based on frequency varia- tions, interference that consists of amplitude variations can be filtered out, leaving the reception relatively clear, which is the major feature of FM radio. NOTE: The radio, steering wheel radio controls (if equipped), and 6 disc CD/DVD changer (if equipped) will remain active for up to 10 minutes after the ignition...
Page 205 Power Switch/Volume Control (Rotary) Press the ON/VOL control to turn the radio ON. Press the ON/VOL a second time to turn OFF the radio. Electronic Volume Control The electronic volume control turns continuously (360 degrees) in either direction without stopping. Turning the volume control to the right increases the volume and to the left decreases it.
Page 206 206 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Adjust the hours by turning the right side TUNE control knob. 3. After the hours are adjusted, press the right side TUNE control knob to set the minutes. The minutes will begin to blink. 4.
Page 207 Press the rotary TUNE control knob a fifth time and FADE will display. Turn the TUNE control knob to the left or right to adjust the sound level between the front and rear speakers. Press the rotary TUNE control knob again to exit setting tone, balance and fade.
Page 208 208 UNDERSTANDING YOUR INSTRUMENT PANEL Program Type 16 Digit-Character Display Religious Music Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Sports Talk Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency station with the same selected Music Type name.
Page 209 • DVD Play Options - Selecting the DVD Play Options will display the following: • Subtitle – Repeatedly Pressing SELECT will switch subtitles to different subtitle languages that are available on the disc (If Equipped). • Audio Stream – Repeatedly Pressing SELECT will switch to different audio languages (if supported on the disc) (If Equipped).
Page 210 210 UNDERSTANDING YOUR INSTRUMENT PANEL a language not listed, then scroll down and select other . Enter the 4 digit country code using the TUNE control knob to scroll up and down to select the # and then push to select. Audio Language —...
Page 211 AutoPlay — If Equipped When this is set to ON and a DVD video is inserted, it will bypass the DVD menu screen and automatically play the movie. In some rare cases, the DVD player may not auto play the main title. In such cases, use the menu button on the remote control to select desired title to play.
Page 212: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)
212 UNDERSTANDING YOUR INSTRUMENT PANEL Buttons 1 - 6 (Radio Mode) These buttons tune the Radio to the stations that you commit to push-button memory {12 AM, 12 FM, and 12 Satellite (if equipped) stations}. DISC Button Pressing the DISC button will allow you to switch from AM/FM modes to Disc modes.
Page 213 Radio display will show LOADING DISC when the disc is loading and “READING DISC” when the radio is reading the disc. CAUTION! • This CD player will accept 4 3/4 inch (12 cm) discs only. The use of other sized discs may damage the CD player mechanism.
Page 214: Notes On Playing Mp3/Wma Files
214 UNDERSTANDING YOUR INSTRUMENT PANEL RW/FF (CD MODE) Press and hold FF (Fast Forward) and the CD player will begin to fast forward until FF is released or RW or another CD button is pressed. The RW (Reverse) button works in a similar manner. AM or FM Button (CD MODE) Switches the Radio to the Radio mode.
Page 215 • Maximum number of directory levels: 8 • Maximum number of files: 255 • Maximum number of folders: 100 • Maximum number of characters in file/folder names: • Level 1: 12 (including a separator 3-character extension) • Level 2: 31 (including a separator 3-character extension) Multisession disc formats are supported by the radio.
Page 216 216 UNDERSTANDING YOUR INSTRUMENT PANEL MPEG Specifi- Sampling Fre- cation quency (kHz) MPEG-1 Audio 48, 44.1, 32 Layer 3 MPEG-2 Audio 24, 22.05, 16 Layer 3 WMA Specifica- Sampling Fre- tion quency (kHz) 44.1 and 48 ID3 Tag information for artist, song title and album title are supported for version 1 ID3 tags.
Page 217: List Button (Disc Mode For Mp3/Wma Play)
LIST Button (DISC Mode for MP3/WMA Play) Pressing the LIST button will bring up a list of all folders on the disc. Scrolling up or down the list is done by turning the TUNE control knob. Selecting a folder by pressing the TUNE control knob will begin playing the files contained in that folder (or the next folder in sequence if the selection does not contain playable files).
Page 218 218 UNDERSTANDING YOUR INSTRUMENT PANEL SCAN Button (Auxiliary Mode) No function. EJECT Button (Auxiliary Mode) No function. PSCAN Button (Auxiliary Mode) No function. TIME Button (Auxiliary Mode) Press this button to change the display from elapsed playing time to time of day. The time of day will be displayed for 5 seconds.
Page 219: Sales Code Res - Am/Fm Stereo Radio With Cd Player (Mp3 Aux Jack)
Macrovision This product incorporates copyright protection technol- ogy that is protected by U.S. patents and other intellec- tual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
Page 220 220 UNDERSTANDING YOUR INSTRUMENT PANEL Power Switch/Volume Control (Rotary) Press the ON/VOLUME control knob to turn the radio on. Press the ON/VOLUME control knob a second time to turn the radio off. Electronic Volume Control The electronic volume control turns continuously (360 degrees) in either direction without stopping.
Page 221 2. Adjust the hours by turning the right side TUNE control knob. 3. After the hours are adjusted, press the right side TUNE control knob to set the minutes. The minutes will begin to blink. 4. Adjust the minutes using the right side TUNE control knob.
Page 222 222 UNDERSTANDING YOUR INSTRUMENT PANEL Press the rotary TUNE control knob a fifth time and FADE will display. Turn the TUNE control knob to the left or right to adjust the sound level between the front and rear speakers. Press the rotary TUNE control knob again to exit setting tone, balance and fade.
Page 223 Program Type 16 Digit-Character Display Religious Music Rel Musc Religious Talk Rock Soft Soft Rock Soft Rhythm and Blues Soft R&B Sports Talk Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency station with the same selected Music Type name.
Page 224: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
224 UNDERSTANDING YOUR INSTRUMENT PANEL Select the button (1-6) you wish to lock onto this station and press and release that button. If a button is not selected within 5 seconds after pressing the SET button, the station will continue to play but will not be stored into push-button memory.
Page 225 Inserting Compact Disc(s) Gently insert one CD into the CD player with the CD label facing up. The CD will automatically be pulled into the CD Player and the CD icon will illuminate on the radio display. If a CD does not go into the slot more than an inch, a disc may already be loaded and must be ejected before a new disc can be loaded.
Page 226 226 UNDERSTANDING YOUR INSTRUMENT PANEL If you have ejected a disc and have not removed it within 10 seconds, it will be reloaded. If the CD is not removed, the radio will reinsert the CD but will not play it. A disc can be ejected with the radio and ignition OFF.
Page 227: Notes On Playing Mp3 Files
Press the right SEEK button to move to the next ran- domly selected track. Press the RND button a second time to stop Random Play. Notes On Playing MP3 Files The radio can play MP3 files, however, acceptable MP3 file recording media and formats are limited. When writing MP3 files, pay attention to the following restric- tions.
Page 228 228 UNDERSTANDING YOUR INSTRUMENT PANEL • Level 2: 31 (including a separator 3-character extension) Multisession disc formats are supported by the radio. Multisession discs may contain combinations of normal CD audio tracks and computer files (including MP3 files). Discs created with an option such as keep disc open after writing are most likely multisession discs.
Page 229: List Button (Cd Mode For Mp3 Play)
Playback of MP3 Files When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3 files. Loading times for playback of MP3 files may be affected by the following: •...
Page 230 230 UNDERSTANDING YOUR INSTRUMENT PANEL Press and hold the INFO button again for 3 seconds to return to elapsed time display. Operation Instructions - Auxiliary Mode The auxiliary (AUX) jack is an audio input jack, which allows the user to plug in a portable device such as an MP3 player, or cassette player, and utilize the vehicle’s audio system to amplify the source and play through the vehicle speakers.
Page 231: Sales Code Rer - Am/Fm/Cd/Dvd Radio With Navigation System - If Equipped
SALES CODE RER — AM/FM/CD/DVD RADIO WITH NAVIGATION SYSTEM — IF EQUIPPED NOTE: The radio sales code is located on the lower right side of your radio faceplate. Satellite Navigation Radio with CD Player with MP3 Capability (RER) - combines a Global-Positioning System-based navigation system with an integrated color screen to provide maps, turn identification, selection menus and instructions for selecting a variety of destina-...
Page 232 232 UNDERSTANDING YOUR INSTRUMENT PANEL either the H button on the faceplate to change the hour or the M button on the faceplate to change the minute. 2. The time setting will increase each time you press the button. Holding either button in will fast forward the setting.
Page 233: Satellite Radio - If Equipped
SATELLITE RADIO — IF EQUIPPED Satellite radio uses direct satellite to receiver broadcast- ing technology to provide clear digital sound, coast to coast. The subscription service provider is Sirius™ Satel- lite Radio. This service offers up to 100 channels of music, sports, news, entertainment, and programming for chil- dren, directly from its satellites and broadcasting studios.
Page 234: Selecting Satellite Mode (Rsc Radios)
234 UNDERSTANDING YOUR INSTRUMENT PANEL number will be displayed. The Sirius ID number display will time out in 2 minutes. Press any button on the radio to exit this screen. Selecting Satellite Mode (RSC Radios) Press the SAT button until SAT appears in the display. A CD may remain in the radio while in the Satellite radio mode.
Page 235 SEEK Buttons Press and release the SEEK buttons to search for the next channel in Satellite mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new channel until you make another selection.
Page 236 236 UNDERSTANDING YOUR INSTRUMENT PANEL If a preset button is activated while in the Music Type (Program Type) mode, the Music Type mode will be exited and the radio will tune to the preset channel. SETUP Button Pressing the SETUP button allows you to select the following items: •...
Page 237: Operating Instructions - Hands Free Phone (If Equipped)
Operating Instructions - Hands Free Phone (If Equipped) Refer to Hands Free Phone in Section 3 of the Owner’s Manual. Operating Instructions - Video Entertainment System (VES ) (If Equipped) Refer to separate Video Entertainment System (VES ) Guide. CD/DVD DISC MAINTENANCE To keep the CD/DVD discs in good condition, take the following precautions: 1.
Page 238: Climate Controls
238 UNDERSTANDING YOUR INSTRUMENT PANEL CLIMATE CONTROLS Manual Heater Only The controls for the heating/ventilation system in this vehicle consist of a series of rotary knobs. These comfort controls can be set to obtain desired interior conditions. Manual Heater Control Mode Control The mode control (left rotary knob) allows you to choose from several patterns of air distribution.
Page 239 Floor Air is directed through the floor outlets and side window demist outlets with a small amount through the defrost outlet. Air is directed through the floor, defrost and side window demist outlets. This setting works best in cold or snowy conditions that require extra heat at the windshield.
Page 240 240 UNDERSTANDING YOUR INSTRUMENT PANEL Manual Air Conditioning and Heating System — If Equipped The controls for the heating/air conditioning and venti- lation system in this vehicle consist of a series of rotary knobs. These comfort controls can be set to obtain desired interior conditions.
Page 241 Panel Air is directed through the outlets in the instrument panel. These outlets can be adjusted to direct air flow. Bi-Level Air is directed through the panel and floor outlets. NOTE: There is a difference in temperature between the upper and lower outlets for added comfort. The warmer air goes to the floor outlets.
Page 242 242 UNDERSTANDING YOUR INSTRUMENT PANEL Blower Control Use this control to regulate the amount of air forced through the system in any mode you select. The fan speed increases as you move the control to the right from the OFF position. Temperature Control Use this control to regulate the temperature of the air in-...
Page 243 Circulation Control Press this button to choose between outside air intake or recirculation of the air inside the vehicle. A lamp will illu- minate when you are in “Re- circulate” mode. Only use the “Recirculate” mode to tempo- rarily block out any outside odors, smoke, or dust and to cool the interior rapidly upon initial start up in very hot or humid weather.
Page 244 244 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Tips Window Fogging Windows will fog on the inside when the humidity inside the vehicle is high. This often occurs in mild or cool temperatures when it’s rainy or humid. In most cases turning on the air-conditioning (pressing the snowflake button) will clear the fog.
Page 245 Winter Operation When operating the system during the winter months, make sure the air intake, located directly in front of the windshield, is free of ice, slush, snow, or other obstruc- tions. UNDERSTANDING YOUR INSTRUMENT PANEL 245 Vacation Storage Anytime you store your vehicle, or keep it out of service (i.e.
Page 247: Starting And Operating
STARTING AND OPERATING CONTENTS Starting Procedures ..... 251 Manual Transmission ....251 Automatic Transmission .
Page 248 248 STARTING AND OPERATING Shift Positions ......267 Shifting Procedure ....268 Trac-Lok™...
Page 249 Radial-Ply Tires ..... . 297 Tire Spinning ......297 Tread Wear Indicators .
Page 250 250 STARTING AND OPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) ..320 Trailer And Tongue Weight ....324 Towing Requirements .
Page 251: Starting Procedures
STARTING PROCEDURES Before starting your vehicle, adjust your seat, adjust both inside and outside mirrors, and fasten your seat belts. WARNING! Never leave children alone in a vehicle. Leaving children in a vehicle unattended is dangerous for a number of reasons. A child or others could be seriously or fatally injured.
Page 252: Starting And Operating
252 STARTING AND OPERATING Tip Start Feature — Automatic Transmission Only Do not press the accelerator. Turn the ignition key briefly to START position, and release it. The starter motor will continue to run, but will automatically disengage itself when the engine is running. Ignition Key Positions Extreme Cold Weather (below –20°F or –29°C) To insure reliable starting at these temperatures, use of an...
Page 253: After Starting
WARNING! Never pour fuel or other flammable liquids into the throttle body air inlet opening in an attempt to start the vehicle. This could result in a flash fire causing serious personal injury. WARNING! Do not attempt to push or tow your vehicle to get it started.
Page 254: Engine Block Heater - If Equipped
254 STARTING AND OPERATING WARNING! Never leave children alone in a vehicle. Leaving children in a vehicle unattended is dangerous for a number of reasons. A child or others could be seriously or fatally injured. Do not leave the keys in the ignition.
Page 255: Manual Transmission
MANUAL TRANSMISSION 6-Speed Manual Transmission WARNING! You or others could be injured if you leave the vehicle unattended without having the parking brake fully applied. The parking brake should al- ways be applied when the driver is not in the vehicle, especially on an incline.
Page 256 256 STARTING AND OPERATING WARNING! When parking your vehicle, always leave a manual transmission in first gear and apply the parking brake fully to guard against vehicle movement and possible injury or damage. Never use any gear as a substitute for the parking brake. CAUTION! To drive as safely as possible and to prolong the life of your manual transmission, follow these tips:...
Page 257 • When “rocking” a stuck vehicle by shifting between a forward gear and reverse, do not spin wheels faster than 15 mph (24 km/h), or drivetrain damage may result. Recommended Manual Transmission Shifting Speeds The manufacturer recommends that you use the shift speeds listed in the chart below.
Page 258: Automatic Transmission
258 STARTING AND OPERATING CAUTION! Failure to follow the recommended downshifting speeds may cause the engine to over speed and/or damage the clutch disc even if the clutch pedal is depressed. AUTOMATIC TRANSMISSION CAUTION! Damage to the transmission may occur if the follow- ing precautions are not observed: •...
Page 259: Shift Lock Manual Override
WARNING! It is dangerous to shift the selector lever out of P (Park) or N (Neutral) if the engine speed is higher than idle speed. If your foot is not firmly on the brake pedal, the vehicle could accelerate quickly forward or in reverse.
Page 260: Brake/Transmission Interlock System
260 STARTING AND OPERATING 4. Using the screwdriver, reach into the manual override opening. Press and hold the shift lock lever down. 5. Depress the shifter release button and shift into N (Neutral). 6. The vehicle may then be started in N (Neutral). Have your vehicle inspected by your local authorized dealer, if the shift lock manual override has been used.
Page 261: Automatic Transmission With Overdrive
Automatic Transmission with Overdrive Shifting from D (Drive) to P (Park) or R (Reverse) (or from P or R to D) should be done only after the accelerator pedal is released and the vehicle is stopped. Be sure to keep your foot on the brake when moving the shift lever between these gears.
Page 262 262 STARTING AND OPERATING WARNING! It is dangerous to shift the selector lever out of P (Park) or N (Neutral) if the engine speed is higher than idle speed. If your foot is not firmly on the brake pedal, the vehicle could accelerate quickly forward or in reverse.
Page 263 strong head winds, or trailer towing), turning off over- drive will improve performance and extend transmission life by reducing excessive shifting and heat buildup. Overdrive Off Switch Overdrive can be locked out by pressing the O/D OFF switch located on the center console. The O/D OFF indicator light (on the switch) will illuminate to show STARTING AND OPERATING 263 that the switch has been activated.
Page 264 264 STARTING AND OPERATING WARNING! Never use P (Park) position with an automatic trans- mission as a substitute for the parking brake. Al- ways apply parking brake fully when parked to guard against vehicle movement and possible injury or damage. CAUTION! •...
Page 265: Four-Wheel Drive Operation
clutch within the torque converter engages automatically at calibrated speeds. This may result in a slightly differ- ent feeling or response during normal operation in high gear. When the vehicle speed drops or during accelera- tion, the clutch automatically and smoothly disengages. FOUR–WHEEL DRIVE OPERATION (COMMAND-TRAC™...
Page 266 266 STARTING AND OPERATING and rear wheels to rotate at the same speed. This is accomplished by simply moving the shift lever to these positions. The 4H and 4L positions are intended for loose, slippery road surfaces only. Driving in the 4H and 4L positions on dry hard surfaced roads may cause in- creased tire wear and damage to the driveline compo- nents.
Page 267: Shift Positions
WARNING! You or others could be injured if you leave the vehicle unattended with the transfer case in the N (Neutral) position without first fully engaging the parking brake. The transfer case N (Neutral) position disengages both the front and rear driveshafts from the powertrain and will allow the vehicle to move regardless of the transmission position.
Page 268: Shifting Procedure
268 STARTING AND OPERATING 4L Position Four Wheel Drive Low Range — Locks the front and rear driveshafts together. Forces the front and rear wheels to rotate at the same speed. Additional traction and maxi- mum pulling power for loose, slippery road surfaces only.
Page 269: Trac-Lok™ Rear Axle - If Equipped
method is with the vehicle rolling at 2 to 3 mph (3 to 5 km/h). Avoid attempting to engage or disengage 4L with the vehicle moving faster than 2 to 3 mph (3 to 5 km/h). WARNING! Failure to engage a position completely can cause transfer case damage or loss of power and vehicle control.
Page 270: Axle Lock (Tru-Lok™) - Rubicon Models
270 STARTING AND OPERATING AXLE LOCK (TRU–LOK™) — RUBICON MODELS The axle lock switch is located on the lower switch bank (below the climate controls). Axle Lock Switch This feature will only activate when the following con- ditions are met: •...
Page 271: Rear Axle Lock - 4Wd Non-Rubicon Models (If Equipped)
REAR AXLE LOCK — 4WD NON-RUBICON MODELS (IF EQUIPPED) The rear axle lock switch is located on the lower switch bank (below the climate controls). This feature will only activate when the following con- ditions are met: • Key in ignition, vehicle in 4L (Low) range. •...
Page 272 272 STARTING AND OPERATING Press the sway bar switch to activate the system. Press the switch again to deactivate the system. The “Sway Bar Indicator Light” (located in the instrument cluster) will illuminate when the bar is disconnected. The “Sway Bar Indicator Light”...
Page 273: On-Road Driving Tips
obtain the off-road position. The amber indicator light will flash until the stabilizer/sway bar has been fully disconnected. NOTE: The stabilizer/sway bar may be torque locked due to left and right suspension height differences. This condition is due to driving surface differences or vehicle loading.
Page 274: Off-Road Driving Tips
274 STARTING AND OPERATING They are not designed for cornering at the same speeds as conventional 2-wheel drive vehicles any more than low- slung sports cars are designed to perform satisfactorily in off-road conditions. If at all possible, avoid sharp turns or abrupt maneuvers.
Page 275: When To Use 4L (Low) Range
3. Remove side step assembly. When To Use 4L (Low) Range When off-road driving, shift to 4L (Low) for additional traction and control on slippery or difficult terrain, ascending or descending steep hills, and to increase low speed pulling power. This range should be limited to STARTING AND OPERATING 275 extreme situations such as deep snow, mud, steep in- clines, or sand where additional low speed pulling power...
Page 276: Driving In Snow, Mud And Sand
276 STARTING AND OPERATING Driving through water more than a few inches deep will require extra caution to ensure safety and prevent dam- age to your vehicle. If you must drive through water, try to determine the depth and the bottom condition (and location of any obstacles) prior to entering.
Page 277: Hill Climbing
Do not shift to a lower gear than necessary to maintain headway. Over-revving the engine can spin the wheels and traction will be lost. Avoid abrupt downshifts on icy or slippery roads, be- cause engine braking may cause skidding and loss of control.
Page 278: Traction Downhill
278 STARTING AND OPERATING turning the front wheels slowly left and right. This may provide a fresh “bite” into the surface and will usually provide traction to complete the climb. Traction Downhill Shift the transmission into a low gear and the transfer case to 4L (Low) range.
Page 279: Parking Brake
• After extended operation in mud, sand, water, or similar dirty conditions, have brake rotors, wheels, brake linings, and axle yokes inspected and cleaned as soon as possible. WARNING! Abrasive material in any part of the brakes may cause excessive wear or unpredictable braking. You might not have full braking power when you need it to prevent an accident.
Page 280 280 STARTING AND OPERATING Parking Brake Be sure the parking brake is firmly set when parked, and the gear shift lever is in the P (Park) position (automatic transmission) or R (Reverse) or 1st gear (manual trans- mission). When parking on a hill, you should apply the parking brake before placing the gear shift lever in P (Park), otherwise the load on the transmission locking mechanism may make it difficult to move the selector out...
Page 281: Anti-Lock Brake System
When parking on a hill, turn the front wheels toward the curb on a downhill grade and away from the curb on an uphill grade. The parking brake should always be applied whenever the driver is not in the vehicle. ANTI-LOCK BRAKE SYSTEM The Anti-Lock Brake System is designed to aid the driver in maintaining vehicle control under adverse braking...
Page 282 282 STARTING AND OPERATING During off-road use, loss of traction can temporarily defeat the system and cause the warning light to illumi- nate. Turn the ignition OFF and ON again to restore Anti-Lock Brake System function. WARNING! Pumping of the Anti-Lock Brakes will diminish their effectiveness and may lead to an accident.
Page 283: Power Steering
CAUTION! The Anti-Lock Brake System is subject to possible detrimental effects of electronic interference caused by improperly installed aftermarket radios or tele- phones. NOTE: During severe braking conditions, a pulsing sensation may occur and a clicking noise will be heard. This is normal, indicating that the Anti-Lock Brake System is functioning.
Page 284: Tire Safety Information
284 STARTING AND OPERATING WARNING! Continued operation with reduced power steering assist could pose a safety risk to yourself and others. Service should be obtained as soon as possible. CAUTION! Prolonged operation of the steering system at the end of the steering wheel travel will increase the steering fluid temperature and it should be avoided when possible.
Page 285 NOTE: • P(Passenger)-Metric tire sizing is based on U.S. design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designation. Ex- ample: P215/65R15 95H. • European Metric tire sizing is based on European design standards. Tires designed to this standard have the tire size molded into the sidewall beginning with the section width.
Page 286 286 STARTING AND OPERATING Tire Sizing Chart Size Designation: P = Passenger car tire size based on U.S. design standards ...blank... = Passenger car tire based on European design standards LT = Light Truck tire based on U.S. design standards T = Temporary Spare tire 31 = Overall Diameter in Inches (in) 215 = Section Width in Milimeters (mm)
Page 287 Service Description: 95 = Load Index —A numerical code associated with the maximum load a tire can carry. H = Speed Symbol —A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions. —The maximum speed corresponding to the Speed Symbol should only be achieved un- der specified operating conditions.
Page 288: Tire Identification Number (Tin)
288 STARTING AND OPERATING Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire however the date code may only be on one side. Tires with white sidewalls will have the full TIN including date code located on the white sidewall side of the tire.
Page 289: Tire Loading And Tire Pressure
STARTING AND OPERATING 289 Tire Loading and Tire Pressure Tire Placard Location Tire Placard Location (4 Door Models) Tire Placard Location (2 Door Models)
Page 290 290 STARTING AND OPERATING Tire and Loading Information Placard Tire and Loading Information This placard tells you important information about the, 1) number of people that can be carried in the vehicle 2) the total weight your vehicle can carry 3) the tire size designed for your vehicle 4) the cold tire inflation pressures for the front, rear and spare tires.
Page 291 combined weight of occupants, cargo/luggage and trailer tongue weight (if applicable) should never exceed the weight referenced here. Steps for Determining Correct Load Limit 1. Locate the statement “The combined weight of occu- pants and cargo should never exceed XXX pounds” on your vehicle’s placard.
Page 292 292 STARTING AND OPERATING...
Page 293: Tires - General Information
WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them. TIRES — GENERAL INFORMATION Tire Pressure Proper tire inflation pressure is essential to the safe and satisfactory operation of your vehicle.
Page 294: Tire Inflation Pressures
294 STARTING AND OPERATING 2. Economy— Tire Inflation Pressures Improper inflation pressures can cause uneven wear patterns to develop across the tire tread. These abnormal wear patterns will reduce tread life resulting in a need for earlier tire replacement. Under inflation also increases tire rolling resistance and results in higher fuel consump- tion.
Page 295 Tire Placard Location (4 Door Models) The pressure should be checked and adjusted as well as inspecting for signs of tire wear or visible damage at least once a month. Use a good quality pocket-type gauge to check tire pressure. Do not make a visual judgement when determining proper inflation.
Page 296: Tire Pressures For High Speed Operation
296 STARTING AND OPERATING Tire pressures change by approximately 1 psi (7 kPa) per 12° F (7° C) of air temperature change. Keep this in mind when checking tire pressure inside a garage especially in the winter. Example: If garage temperature = 68° F (20° C) and the outside temperature = 32°...
Page 297: Radial-Ply Tires
Radial-Ply Tires WARNING! Combining radial ply tires with other types of tires on your vehicle will cause your vehicle to handle poorly. The instability could cause an accident. Al- ways use radial tires in sets of four. Never combine them with other types of tires. Cuts and punctures in radial tires are repairable only in the tread area because of sidewall flexing.
Page 298: Tread Wear Indicators
298 STARTING AND OPERATING Tread Wear Indicators Tread wear indicators are in the original equipment tires to help you in determining when your tires should be replaced. These indicators are molded into the bottom of the tread grooves and will appear as bands when the tread depth becomes 1/16 inch (2 mm).
Page 299: Replacement Tires
Keep unmounted tires in a cool, dry place with as little exposure to light as possible. Protect tires from contact with oil, grease and gasoline. Replacement Tires The tires on your new vehicle provide a balance of many characteristics. They should be inspected regularly for wear and correct cold tire inflation pressure.
Page 300: Alignment And Balance
300 STARTING AND OPERATING CAUTION! Replacing original tires with tires of a different size may result in false speedometer and odometer read- ings. Alignment and Balance Poor suspension alignment may result in: • Fast tire wear. • Uneven tire wear, such as feathering and one-sided wear.
Page 301: Tire Rotation Recommendations
• Install chains snugly and tighten after.6 mile (1 km) of driving. • Do not exceed 30 mph (48 km/h). • Drive cautiously, avoiding large bumps, potholes and extreme driving maneuvers. TIRE ROTATION RECOMMENDATIONS Tires on the front and rear axles of vehicles operate at different loads and perform different steering, handling, and braking functions.
Page 302: Tire Pressure Monitor System (Tpms) - If Equipped
302 STARTING AND OPERATING TIRE PRESSURE MONITOR SYSTEM (TPMS) — IF EQUIPPED The Tire Pressure Monitoring System (TPMS) will warn the driver of a low tire pressure based on the vehicle recommended cold placard pressure. The tire pressure will vary with temperature by about 1 psi (6.9 kPa) for every 12°F (6.5°C).
Page 303: Base System - If Equipped
(241 kPa). If the ambient temperature is 65°F (18°C) and the measured tire pressure is 30 psi (207 kPa), a tempera- ture drop to 20°F (-7°C) will decrease the tire pressure to approximately 26 psi (179 kPa). This tire pressure is sufficiently low enough to turn ON the “Tire Pressure Monitoring Telltale Light.”...
Page 304 304 STARTING AND OPERATING the four active road tire pressures are low. The audible chime will sound once every ignition cycle for each condition that it detects. Should this occur, you should stop as soon as possible, check the inflation pressure of each tire on your vehicle, and inflate each tire to the pressure recommended by the vehicle manufacturer.
Page 305 CAUTION! The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures have been established for the tire size equipped on your vehicle. Undesirable system operation or sensor damage may result when using replacement equip- ment that is not of the same size, type, and/or style. After-market wheels can cause sensor damage.
Page 306: General Information
306 STARTING AND OPERATING • The TPMS is not a substitute for proper tire mainte- nance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the “Tire Pressure Monitoring Telltale Light.”...
Page 307: Reformulated Gasoline
Over 40 auto manufacturer’s world wide have issued and endorsed consistent gasoline specifications (the World- wide Fuel Charter, WWFC) to define fuel properties necessary to deliver enhanced emissions, performance, and durability for your vehicle. The manufacturer recom- mends the use of gasoline that meets the WWFC speci- fications if they are available.
Page 308: Mmt In Gasoline
308 STARTING AND OPERATING manufacturer. While MTBE is an oxygenate made from Methanol, it does not have the negative effects of Metha- nol. MMT In Gasoline MMT is a manganese containing metallic additive that is blended into some gasoline to increase the octane num- ber.
Page 309: Carbon Monoxide Warnings
• The use of leaded gasoline is prohibited by Federal law. Using leaded gasoline can impair engine perfor- mance, damage the emission control system. • An out-of-tune engine, or certain fuel or ignition malfunctions, can cause the catalytic converter to overheat.
Page 310: Adding Fuel
310 STARTING AND OPERATING the vehicle is raised. Have any abnormal conditions repaired promptly. Until repaired, drive with all side windows fully open. • Keep the swing gate closed when driving your vehicle to prevent carbon monoxide and other poisonous exhaust gases from entering the vehicle.
Page 311 CAUTION! Damage to the fuel system or emission control system could result from using an improper fuel cap (gas cap). A poorly fitting cap could let impurities into the fuel system. Also, a poorly fitting after- market cap can cause the MIL (Malfunction Indica- tor Light) to illuminate, due to fuel vapors escaping from the system.
Page 312 312 STARTING AND OPERATING NOTE: Tighten the gas cap about 1/4 turn until you hear one click. This is an indication that cap is properly tightened. If the gas cap is not tighten properly, the Malfunction Indicator Light will come on. Be sure the gas cap is tightened every time the vehicle is refueled.
Page 313: Vehicle Loading
VEHICLE LOADING Certification Label As required by National Highway Traffic Safety Admin- istration Regulations, your vehicle has a certification label affixed to the driver’s side door or pillar. This label contains the month and year of manufacture, Gross Vehicle Weight Rating (GVWR), Gross Axle Weight Rating (GAWR) front and rear, and Vehicle Identification Number (VIN).
Page 314 314 STARTING AND OPERATING Tire Size The tire size on the Label represents the actual tire size on your vehicle. Replacement tires must be equal to the load capacity of this tire size. Rim Size This is the rim size that is appropriate for the tire size listed.
Page 315: Trailer Towing
Improper weight distributions can have an adverse effect on the way your vehicle steers and handles and the way the brakes operate. CAUTION! Do not load your vehicle any heavier than the GVWR or the maximum front and rear GAWR. If you do, parts on your vehicle can break, or it can change the way your vehicle handles.
Page 316 316 STARTING AND OPERATING Gross Trailer Weight (GTW) The gross trailer weight (GTW) is the weight of the trailer plus the weight of all cargo, consumables and equipment (permanent or temporary) loaded in or on the trailer in its loaded and ready for operation condition. The recom- mended way to measure GTW is to put your fully loaded trailer on a vehicle scale.
Page 317 Frontal Area The maximum height and maximum width of the front of a trailer. Trailer Sway Control The trailer sway control is a telescoping link that can be installed between the hitch receiver and the trailer tongue that typically provides adjustable friction associated with the telescoping motion to dampen any unwanted trailer swaying motions while traveling.
Page 318 318 STARTING AND OPERATING WARNING! An improperly adjusted Weight Distributing Hitch system may reduce handling, stability, braking per- formance, and could result in an accident. Weight Distributing Systems may not be compatible with Surge Brake Couplers. Consult with your hitch and trailer manufacturer or a reputable Recreational Vehicle dealer for additional information.
Page 319: Trailer Hitch Classification
Improper Adjustment of Weight Distributing System STARTING AND OPERATING 319 Trailer Hitch Classification The following chart provides the industry standard for the maximum trailer weight a given trailer hitch class can tow and should be used to assist you in selecting the correct trailer hitch for your intended towing condition.
Page 320: Trailer Towing Weights (Maximum Trailer Weight Ratings)
320 STARTING AND OPERATING Trailer Towing Weights (Maximum Trailer Weight Ratings) The following chart provides the maximum trailer weight ratings towable for your given drivetrain. Engine/ Axle Model Transmis- sion 3.8L/ 3.21 2 Door X Manual Model (4WD) 3.8L/ 4.10 2 Door X Manual Model...
Page 321 3.8L/ 4.10 2 Door 6,101 lbs (2 767 kg) Manual Sahara Model (4WD) 3.8L/ 4.10 2 Door 6,126 lbs (2 779 kg) Automatic Sahara Model (4WD) 3.8L/ 4.10 2 Door 6,254 lbs (2 837 kg) Manual Rubicon Model (4WD) 3.8L/ 4.10 2 Door 6,279 lbs (2 848 kg)
Page 322 322 STARTING AND OPERATING 3.8L/ 4.10 4 Door X Manual Model (2WD) 3.8L/ 4.10 4 Door X Automatic Model (2WD) 3.8L/ 3.21 4 Door Manual Sahara Model (2WD) 3.8L/ 4.10 4 Door Manual Sahara Model (2WD) 3.8L/ 4.10 4 Door Automatic Sahara Model...
Page 323 3.8L/ 3.21 4 Door X 5,225 lbs (2 370 kg) Manual Model (4WD) 3.8L/ 4.10 4 Door X 7,725 lbs (3 504 kg) Manual Model (4WD) 3.8L/ 4.10 4 Door X 7,750 lbs (3 515 kg) Automatic Model (4WD) 3.8L/ 3.21 4 Door 5,419 lbs (2 458 kg)
Page 324: Trailer And Tongue Weight
324 STARTING AND OPERATING 3.8L/ 4.10 4 Door Automatic Sahara Model (4WD) 3.8L/ 4.10 4 Door Manual Rubicon Model (4WD) 3.8L/ 4.10 4 Door Automatic Rubicon Model (4WD) Refer to local laws for maximum trailer towing speeds. NOTE: The trailer tongue weight must be considered as part of the combined weight of occupants and cargo, and should never exceed the weight referenced on the Tire and Loading Information placard.
Page 325: Towing Requirements
which will cause loss of control of vehicle and trailer. Failure to load trailers heavier in front is the cause of many trailer accidents. Consider the following items when computing the weight on the rear axle of the vehicle: • The tongue weight of the trailer. STARTING AND OPERATING 325 •...
Page 326 326 STARTING AND OPERATING NOTE: Trailer towing requires special rear axle lubri- cant. Refer to “Fluids, Lubricants, and Genuine Parts” in Section 7 for more information. CAUTION! • Avoid towing a trailer for the first 500 miles (805 km) of vehicle operation. Doing so may damage your vehicle.
Page 327 • Safety chains must always be used between your vehicle and trailer. Always connect the chains to the frame or hook retainers of the vehicle hitch. Cross the chains under the trailer tongue and allow enough slack for turning corners. •...
Page 328 328 STARTING AND OPERATING − Check for signs of tire wear or visible tire damage before towing a trailer. Refer to the Tires–General Information section of this manual on Tread Wear Indicators for the proper inspection procedure. − When replacing tires, refer to the Tires–General Infor- mation section of this manual on Replacement Tires for proper tire replacement procedures.
Page 329 WARNING! Do not connect trailer brakes to your vehicle’s hy- draulic brake lines. It can overload your brake sys- tem and cause it to fail. You might not have brakes when you need them and could have an accident. Towing any trailer will increase your stopping dis- tance.
Page 330: Towing Tips
330 STARTING AND OPERATING 7- Pin Connector Towing Tips Before setting out on a trip, practice turning, stopping and backing the trailer in an area away from heavy traffic. If using a manual transmission vehicle for trailer towing, all starts must be in FIRST gear to avoid excessive clutch slippage.
Page 331 NOTE: Check the automatic transmission fluid level before towing. Towing Tips — O/D Off (If Equipped) To reduce potential for automatic transmission overheat- ing, turn the “O/D OFF” feature OFF when driving in hilly areas or shift the transmission to Drive position 2 on more severe grades.
Page 332: Recreational Towing (Behind Motorhome, Etc.)
332 STARTING AND OPERATING RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) CAUTION! Front or rear wheel lifts should not be used. Internal damage to the transmission or transfer case will occur if a front or rear wheel lift is used when recreational towing. NOTE: The transfer case must be shifted into N (Neu- tral) for recreational towing.
Page 333: Shifting Out Of Neutral (N)
7. Shut the engine off and place the ignition key into the unlocked OFF position. 8. Shift automatic transmission into P (Park). 9. Apply parking brake. 10. Attach vehicle to the tow vehicle with tow bar. 11. Release parking brake. CAUTION! Damage to the transmission may occur if the trans- mission is shifted into P (Park) with the transfer case...
Page 334 334 STARTING AND OPERATING WARNING! You or others could be injured if you leave the vehicle unattended with the transfer case in the N (Neutral) position without first fully engaging the parking brake. The transfer case N (Neutral) position disengages both the front and rear driveshafts from the powertrain and will allow the vehicle to move despite the transmission position.
Page 335: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flashers ....336 If Your Engine Overheats ....337 Jacking And Tire Changing .
Page 336: Hazard Warning Flashers
336 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHERS Your vehicle’s hazard warning flasher is an emergency warning system. When you activate it, all front and rear directional signals will flash intermittently. Use it when your vehicle is disabled on or near the road. It warns other drivers to steer clear of you and your vehicle.
Page 337: If Your Engine Overheats
IF YOUR ENGINE OVERHEATS In any of the following situations, you can reduce the potential for overheating by taking the appropriate ac- tion. • On the highways — Slow down. • In city traffic — While stopped, put transmission in N (Neutral), but do not increase engine idle speed.
Page 338: Jacking And Tire Changing
338 WHAT TO DO IN EMERGENCIES JACKING AND TIRE CHANGING WARNING! • Getting under a jacked-up vehicle is dangerous. The vehicle could slip off the jack and fall on you. You could be crushed. Never get any part of your body under a vehicle that is on a jack.
Page 339: Spare Tire Stowage
Spare Tire Stowage To remove the spare tire from the carrier, remove the tire cover, if equipped, and remove the lug nuts with the lug wrench turning them counterclockwise. NOTE: If you have added aftermarket accessories to the spare tire mounted carrier, it cannot exceed a gross weight of 50 lbs (23 kg) including the weight of the spare tire.
Page 340: Jacking Instructions
340 WHAT TO DO IN EMERGENCIES Jacking Instructions 1. Remove spare tire, jack and tools from stored location. 2. Loosen (but do not remove) the wheel lug nuts by turning them to the left one turn while the wheel is still on the ground.
Page 341 5. Raise the vehicle by turning the jack screw to the right. Raise the vehicle only until the tire just clears the surface and enough clearance is obtained to install the spare tire. Minimum tire lift provides maximum stability. WARNING! Raising the vehicle higher than necessary can make the vehicle less stable and cause an accident.
Page 342: Jump Starting
342 WHAT TO DO IN EMERGENCIES WARNING! A loose tire or jack, thrown forward in a collision or hard stop could endanger the occupants of the ve- hicle. Always stow the jack parts and the spare tire in the places provided. 11.
Page 343 2. Park the booster vehicle within cable reach but with- out letting the vehicles touch. Set the parking brake on both vehicles, place the automatic transmission in P (Park), or the manual transmission in N (Neutral), and turn the ignition OFF. 3.
Page 344: Emergency Tow Hooks - If Equipped
344 WHAT TO DO IN EMERGENCIES 6. Start the engine in the vehicle which has the booster battery, let the engine idle a few minutes, then start the engine in the vehicle with the discharged battery. 7. When removing the jumper cables, reverse the above sequence exactly.
Page 345: Towing A Disabled Vehicle
WARNING! Stand clear of vehicles when pulling with tow hooks. Tow straps and chains may break, causing serious injury. WHAT TO DO IN EMERGENCIES 345 TOWING A DISABLED VEHICLE The manufacturer recommends towing with all four wheels off the ground. Acceptable methods are to tow the vehicle on a flatbed or with one end of the vehicle raised and the other end on a towing dolly.
Page 347: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS Engine Compartment – 3.8L ....350 Onboard Diagnostic System — OBD II ..351 Loose Fuel Filler Cap Message ... . 351 Emissions Inspection And Maintenance Programs .
Page 348 348 MAINTAINING YOUR VEHICLE Power Steering Fluid Check ....363 Driveline And Steering Component Lubrication ....364 Body Lubrication .
Page 349 Center High Mounted Stop Light (CHMSL) . . . 397 Fluid Capacities ......397 Fluids, Lubricants And Genuine Parts ..398 MAINTAINING YOUR VEHICLE 349 Engine .
Page 350: Maintaining Your Vehicle
350 MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT – 3.8L...
Page 351: Onboard Diagnostic System - Obd Ii
ONBOARD DIAGNOSTIC SYSTEM — OBD II Your vehicle is equipped with a sophisticated onboard diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic transmission control systems. When these systems are operating properly, your vehicle will provide excellent performance and fuel economy, as well as engine emis- sions well within current government regulations.
Page 352: Emissions Inspection And Maintenance Programs
352 MAINTAINING YOUR VEHICLE cap until a clicking sound is heard. This is an indication that the gas cap is properly tightened. Press the odometer reset button to turn the message off. If the problem persists, the message will appear the next time the vehicle is started.
Page 353: Replacement Parts
4. As soon as you turn your key to the ON position, you will see your MIL symbol come on as part of a normal bulb check. 5. Approximately 15 seconds later, one of two things will happen: a. The MIL will flash for about 10 seconds and then return to being fully illuminated until you turn off the ignition key or start the engine.
Page 354: Dealer Service
354 MAINTAINING YOUR VEHICLE DEALER SERVICE Your dealer has the qualified service personnel, special tools, and equipment to perform all service operations in an expert manner. Service Manuals are available which include detailed service information for your vehicle. Refer to these manuals before attempting any procedure yourself.
Page 355 Checking the oil while the vehicle is on level ground will improve the accuracy of the oil level readings. Always maintain the oil level within the SAFE zone on the dipstick. Adding one quart of oil when the reading is at the bottom of the SAFE zone will result in a reading at the top of the safe zone on these engines.
Page 356 356 MAINTAINING YOUR VEHICLE • More than 50% of your driving is at sustained high speeds during hot weather, above 90°F (32°C) • Taxi, Police, or delivery service (commercial service) • Trailer towing • Off-road or desert driving • If equipped for and operating with E–85 (ethanol) fuel If ANY of these apply to you, then change your engine oil at every interval shown in schedule “B”...
Page 357 Engine Oil Viscosity (3.8L Engines) SAE 5W-20 engine oil is recommended for all operating temperatures. This engine oil improves low tempera- ture starting and vehicle fuel economy. Your engine oil filler cap shows the recommended engine oil viscosity for your vehicle. Lubricants which do not have both, the engine oil certi- fication mark and the correct SAE viscosity grade num- ber should not be used.
Page 358: Drive Belts - Check Condition And Tension
358 MAINTAINING YOUR VEHICLE Drive Belts — Check Condition and Tension Belt tension is controlled by means of an automatic tensioner. No belt tension adjustments are required. However, belt and belt tensioner condition should be inspected at the specified intervals, and replaced if re- quired.
Page 359 CAUTION! Damage to the catalytic converter can result if your vehicle is not kept in proper operating condition. In the event of engine malfunction, particularly involv- ing engine misfire or other apparent loss of perfor- mance, have your vehicle serviced promptly. Contin- ued operation of your vehicle with a severe malfunction could cause the converter to overheat, resulting in possible damage to the converter and...
Page 360: Crankcase Emission Control System
360 MAINTAINING YOUR VEHICLE • Do not shut off the engine or interrupt the ignition when the transmission is in gear and the vehicle is in motion. • Do not try to start the engine by pushing or towing the vehicle.
Page 361: Engine Air Cleaner Filter
Engine Air Cleaner Filter Under normal driving conditions, replace the air filter at the intervals shown on “Maintenance Schedule A.” If, however, you drive the vehicle frequently under dusty or severe conditions, the filter element should be inspected periodically and replaced if necessary at the intervals shown on “Maintenance Schedule B.”...
Page 362: Air Conditioner Maintenance
362 MAINTAINING YOUR VEHICLE To determine the battery charge, check the battery test indicator (if equipped) on top of the battery. Refer to the illustration. CAUTION! It is essential when replacing the cables on the battery that the positive cable is attached to the positive post and the negative cable is attached to the negative post.
Page 363: Power Steering Fluid Check
WARNING! • Use only refrigerants and compressor lubricants approved by the manufacturer for your air condi- tioning system. Some unapproved refrigerants are flammable and can explode, injuring you. Other unapproved refrigerants or lubricants can cause the system to fail, requiring costly repairs. Refer to Section 3 of the Warranty Information Book for additional warranty information.
Page 364: Driveline And Steering Component Lubrication
364 MAINTAINING YOUR VEHICLE WARNING! Fluid level should be checked on a level surface with the engine off to prevent injury from moving parts, and to insure accurate fluid level reading. Do not overfill. Use only the manufacturer’s recommended fluid. If necessary, add fluid to restore to the proper indicated level.
Page 365: Windshield Wiper Blades
amount of a high quality lubricant such as Mopar Lock Cylinder Lubricant directly into the lock cylinder. Windshield Wiper Blades Clean the rubber edges of the wiper blades and the windshield periodically with a sponge or soft cloth and a mild non-abrasive cleaner.
Page 366: Exhaust System
366 MAINTAINING YOUR VEHICLE Exhaust System The best protection against carbon monoxide entry into the vehicle body is a properly maintained engine exhaust system. If you notice a change in the sound of the exhaust system; or if the exhaust fumes can be detected inside the vehicle; or when the underside or rear of the vehicle is damaged;...
Page 367 garden hose vertically down the face of the A/C con- denser (if equipped) or the back of the radiator core. Check the engine cooling system hoses for brittle rubber, cracking, tears, cuts, and tightness of the connection at the coolant recovery bottle and radiator. Inspect the entire system for leaks.
Page 368 368 MAINTAINING YOUR VEHICLE CAUTION! • Mixing of antifreeze/coolant other than the speci- fied HOAT antifreeze/coolant may result in de- creased corrosion protection and engine damage. If a non-HOAT antifreeze/coolant is introduced into the cooling system in an emergency, it should be replaced with the specified antifreeze/coolant as soon as possible.
Page 369 Use only high purity water such as distilled or deionized water when mixing the water/antifreeze (coolant) solu- tion. The use of lower quality water will reduce the amount of corrosion protection in the engine cooling system. Please note that it is the owner’s responsibility to main- tain the proper level of protection against freezing ac- cording to the temperatures occurring in the area where the vehicle is operated.
Page 370 370 MAINTAINING YOUR VEHICLE children, do not store ethylene glycol based antifreeze/ coolant in open containers or allow it to remain in puddles on the ground. If ingested by a child, contact a physician immediately. Clean up any ground spills im- mediately.
Page 371: Hoses And Vacuum/Vapor Harnesses
coolant needs to be added, contents of coolant recov- ery bottle must also be protected against freezing. • If frequent antifreeze/coolant additions are required, or if the level in the recovery bottle does not drop when the engine cools, the cooling system should be pressure tested for leaks.
Page 372: Brake System
372 MAINTAINING YOUR VEHICLE are present. Components should be replaced immedi- ately if there is any evidence of degradation that could cause failure. Brake System In order to assure brake system performance, all brake system components should be inspected periodically. Refer to the appropriate “Maintenance Schedule”...
Page 373 WARNING! Worn brake hoses can burst and cause brake failure. You could have an accident. If you see any signs of cracking, scuffing, or worn spots, have the brake hoses replaced immediately. Brake Master Cylinder The fluid level in the master cylinder should be checked when performing under hood services, or immediately if the BRAKE warning light shows system failure Be sure to clean the top of the master cylinder area before...
Page 374: Automatic Transmission
374 MAINTAINING YOUR VEHICLE Use only brake fluid that has been in a tightly closed container to avoid contamination from foreign matter. Do not allow petroleum base fluid to contaminate the brake fluid as seal damage will result. Automatic Transmission Selection of Lubricant It is important that the proper lubricant is used in the transmission to assure optimum transmission perfor-...
Page 375 Check the fluid level while the transmission is at normal operating temperature 180° F (82° C). This occurs after at least 15 mi (25 km) of driving. At normal operating temperature the fluid cannot be held comfortably be- tween the fingertips. To properly check the automatic transmission fluid level, the following procedure must be used: 1.
Page 376: Hydraulic Clutch Fluid - Manual Transmission
376 MAINTAINING YOUR VEHICLE CAUTION! Be aware that if the fluid temperature is below 50° F (10° C), it may not register on the dipstick. Do not add fluid until the temperature is elevated enough to produce an accurate reading. 7.
Page 377: Transfer Case
Frequency of Fluid Change Under normal operating conditions, the fluid installed at the factory will give satisfactory lubrication for the life of the vehicle. Fluid changes are not necessary unless the lubricant has become contaminated with water. If con- taminated with water, the fluid should be changed im- mediately.
Page 378: Front/Rear Axle Fluid
378 MAINTAINING YOUR VEHICLE CAUTION! When replacing plugs, do not overtighten. You could damage them and cause them to leak. Selection of Lubricant Use only manufacturer’s recommended fluid, refer to Fluids, Lubricants, and Genuine Parts for correct fluid type. Front/Rear Axle Fluid Fluid Level Check Lubricant should be at bottom edge of the oil fill hole.
Page 379: Appearance Care And Protection From Corrosion
damage to fuel lines, brake hoses, axle pinion seals, and propeller shafts. Check air conditioning drain tube on the lower dash wall in the engine compartment for mud or debris, and clean as required. A plugged tube will adversely affect air conditioning performance. CAUTION! Under frequent heavy-duty driving conditions, change all lubricants, and lubricate body compo-...
Page 380 380 MAINTAINING YOUR VEHICLE • Insects, tree sap and tar. • Salt in the air near sea-coast localities. • Atmospheric fallout/industrial pollutants. • Bird droppings. Washing • Wash your vehicle regularly. Always wash your ve- hicle in the shade using Mopar Car Wash or a mild car wash soap, and rinse the panels completely with clear water.
Page 381 • If you detect any stone chips or scratches in the paint, touch them up immediately. The cost of such repairs is considered the responsibility of the owner. • If your vehicle is damaged due to an accident or similar cause which destroys the paint and protective coating have your vehicle repaired as soon as possible.
Page 382 382 MAINTAINING YOUR VEHICLE • For tough stains, apply Mopar Total Clean or a mild soap solution to a clean, damp cloth and remove stain. Use a fresh, damp towel to remove soap residue. • For grease stains, apply Mopar Cleaner to a clean, damp cloth and remove stain.
Page 383 Cleaning Plastic Instrument Cluster Lenses The lenses in front of the instruments in this vehicle are molded in clear plastic. When cleaning the lenses, care must be taken to avoid scratching the plastic. 1. Clean with a wet soft rag. A mild soap solution may be used, but do not use high alcohol content or abrasive cleaners.
Page 384 Mopar Jeep Soft Glass Window Cleaner will safely clean all plastic windows without scratching. Removes fine scratches to improve visibility and provide UV protection to help prevent yellowing.
Page 385: Fuses (Totally Integrated Power Module)
3. Always rinse thoroughly with cold water, then wipe with a soft and slightly moist, clean cloth. 4. When removing frost, snow or ice, never use a scraper or de-icing chemicals. Use warm water only if you must clean the window quickly. 5.
Page 386 386 MAINTAINING YOUR VEHICLE Integrated Power Module (TIPM) Cavity Cartridge Mini Fuse Fuse 40 Amp Power Folding Seat Green 30 Amp Transfer Case/Pwr Pink Liftgate Module Cavity Cartridge 40 Amp Green 25 Amp Natural 25 Amp Natural 40 Amp Green 30 Amp Pink 40 Amp...
Page 387 Cavity Cartridge Mini Description Fuse Fuse 30 Amp Sway Bar/ Pink THATCHAM Lock- Unlock/Power Slid- ing Door Module 60 Amp Ignition Off Draw Yellow (IOD) — Main 40 Amp EBL (Rear Window Green Defogger) 30 Amp Rear Blower Pink 40 Amp Starter Solenoid Green 20 Amp...
Page 388 388 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini Fuse Fuse 20 Amp Power Outlet #1/Rain Yellow Sensor 20 Amp Power Outlet #2 Yellow (BATT/ACC SELECT) 20 Amp Front Heated Seat Yellow 20 Amp Rear Heated Seat Yellow 20 Amp Satellite Digital Audio Yellow Receiver (SDARS), RADIO, Antenna...
Page 389 Cavity Cartridge Mini Description Fuse Fuse 20 Amp COL MOD, IR SNS, Yellow Heater Ventilation, Air Conditioning/ Automatic Tempera- ture Control (HVAC/ ATC), Rear View Mirror (RR VW MIR), Cabin Compartment Node (CCN), Transfer Case Switch (T-CASE SW), RUN/ST, Multi- Function Control Switch (MULTIFTCN SW), Tire Pressure...
Page 390 390 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini Fuse Fuse 15 Amp Cabin Compartment Blue Node Interior Light (CCN INT LIGHT), Switch Bank (SW BANK), Steering Con- trol Module (SCM) 20 Amp Auto Shut Down Yellow (ASD #3) 10 Amp Right Horn (RT HORN (HI/LOW) 10 Amp Left Horn (LT HORN...
Page 391 Cavity Cartridge Mini Description Fuse Fuse 10 Amp Occupant Classifica- tion Module (OCM) 15 Amp Rear Wiper Module Blue (RR WIPER MOD), Power Folding Mirror (PWR FOLD MIR) 20 Amp Back-Up Lamps (B/U Yellow LAMPS) 10 Amp Occupant Restraint Controller (ORC), TT EUROPE 10 Amp Next Generation Con-...
Page 392 392 MAINTAINING YOUR VEHICLE Cavity Cartridge Mini Fuse Fuse 10 Amp Anti-Lock Brake Sys- tem (ABS), Electronic Stability Program (ESP), Stop Lamp Switch (STP LP SW), Fuel Pump Rly Hi Control 25 Amp Lock/Unlock Motors Natural (LOCK/UNLOCK MTRS) Description • When installing the Integrated Power Module cover, it is important to ensure the cover is prop- erly positioned and fully latched.
Page 393: Vehicle Storage
VEHICLE STORAGE If you are leaving your vehicle dormant for more than 21 days you may want to take steps to protect your battery. You may: • Remove Cartridge fuse #15 in the Power Distribution Center labeled Ignition-Off Draw (IOD). •...
Page 394: Bulb Replacement
394 MAINTAINING YOUR VEHICLE Exterior Lights Backup Lights (2)......3157 Center High Mounted Stop Light (1) ..L.E.D. Fog Lights.
Page 395: Front Park/Turn Signal
9. Push connector locking tab to the unlock position. 10. Remove connector from bulb. 11. Push connector onto new bulb base, and push the connector locking tab to the lock position. CAUTION! Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life.
Page 396: Front Fog Light
396 MAINTAINING YOUR VEHICLE Front Fog Light 1. Locate the front fog lamp in the front fascia, and disconnect the electrical connector from underneath. 2. Turn the bulb 1/4 turn counter-clockwise. CAUTION! Do not touch the new bulb with your fingers. Oil contamination will severely shorten bulb life.
Page 397: Center High Mounted Stop Light (Chmsl)
Center High Mounted Stop Light (CHMSL) The stop lamp is mounted on a bracket that extends upward from the tailgate behind the spare tire. If service is needed, obtain the LED/Cover Assembly from your local authorized dealer. FLUID CAPACITIES Fuel (Approximate) — 2 Door Models Fuel (Approximate) —...
Page 398: Fluids, Lubricants And Genuine Parts
398 MAINTAINING YOUR VEHICLE FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Engine Coolant Engine Oil Spark Plugs Oil Filter (3.8L Engine) Fuel Selection Fluid, Lubricant, or Genuine Part Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Or- ganic Additive Technology) API Certified SAE 5W-20 Engine Oil is recommended.
Page 399: Chassis
Chassis Component Fluid, Lubricant, or Genuine Part Automatic Transmission Mopar ATF+4 Automatic Transmission Fluid Manual Transmission Mopar Manual Transmission Lubricant or equivalent (meeting the require- ments of DaimlerChrysler Material Standard MS-9224) Transfer Case Mopar ATF+4 Automatic Transmission Fluid or equivalent. Axle Differential (Front) Mopar Gear &...
Page 401 MAINTENANCE SCHEDULES CONTENTS Emission Control System Maintenance ..402 Maintenance Schedules ....402 Schedule “B” ......405 Schedule “A”...
Page 402: Emission Control System Maintenance
402 MAINTENANCE SCHEDULES EMISSION CONTROL SYSTEM MAINTENANCE The “Scheduled” maintenance services, listed in bold type must be done at the times or mileages specified to assure the continued proper functioning of the emission control system. These, and all other maintenance services included in this manual, should be done to provide best vehicle performance and reliability.
Page 403 • Off-road or desert driving NOTE: If ANY of these apply to you then change your engine oil every 3,000 miles (5 000 km) or 3 months, whichever comes first and follow “Schedule B” of the “Maintenance Schedules” section of this manual. NOTE: If ANY of these apply to you then flush and replace your engine coolant/anti-freeze every 102,000 miles (164 000 km) or 60 months, whichever comes first,...
Page 404 404 MAINTENANCE SCHEDULES Once a Month • Check the tire pressure and look for unusual wear or damage. • Inspect the battery and clean and tighten the terminals as required. • Check the fluid levels of the coolant reservoir, brake master cylinder, and transmission, and add as needed.
Page 405: Schedule "B
Schedule “B” Follow this schedule if you usually operate your vehicle under one or more of the following conditions. • Day or night temperatures are below 32°F (0°C) • Stop and go driving • Excessive engine idling • Driving in dusty conditions •...
Page 406 406 SCHEDULE “B” Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid. Inspect the transfer case fluid, add if necessary.
Page 407 Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid.
Page 408 408 SCHEDULE “B” Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid. Inspect the transfer case fluid, add if necessary.
Page 409 Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid.
Page 410 410 SCHEDULE “B” Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the brake linings. Inspect the transfer case fluid, add if necessary. Drain and refill the front and rear axle fluid.
Page 411 Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid.
Page 412 412 SCHEDULE “B” Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Replace the spark plugs. Replace the ignition cables. Inspect the brake linings. Drain and refill the front and rear axle fluid.
Page 413 Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid.
Page 414 414 SCHEDULE “B” Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid. Inspect the transfer case fluid, add if necessary.
Page 415 Miles (Kilometers) Change the engine oil and engine oil filter, if not replaced at 3 months. Rotate the tires. Inspect the engine air filter element, replace if necessary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Drain and refill the front and rear axle fluid.
Page 416 416 SCHEDULE “B” Inspection and service should also be performed anytime a malfunction is observed or suspected. Retain all re- ceipts. † Applies only if vehicle is used for frequent trailer towing or fleet/commercial service. This maintenance is recommended by the manufac- turer to the owner, but is not required to maintain emissions warranty.
Page 417: Schedule "A
Schedule “A” Miles (Kilometers) [Months] Change the engine oil and engine oil filter. Rotate the tires. Inspect the engine air filter element, and replace if necessary. Inspect the brake linings. Inspect the manual transmission fluid, add as nec- essary. Inspect the transfer case fluid, add as necessary. Clean and lubricate soft top zippers (if equipped).
Page 418 418 SCHEDULE “A” Miles (Kilometers) [Months] Change the engine oil and engine oil filter. Rotate the tires. Inspect the brake linings. Clean and lubricate soft top zippers (if equipped). 36,000 42,000 48,000 (58 000) (68 000) (77 000) [36] [42] [48] 54, 000 (87 000)
Page 419 Miles (Kilometers) [Months] Change the engine oil and engine oil filter. Rotate the tires. Inspect the engine air filter element, and replace if nec- essary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Inspect the drive belt, and replace as needed. Inspect the drive belt, and replace as needed.
Page 420 420 SCHEDULE “A” Miles (Kilometers) [Months] Change the engine oil and engine oil filter. Rotate the tires. Inspect the engine air filter element, and replace if necessary. Inspect the PCV Valve, and replace if necessary. Replace the spark plugs. Replace the ignition cables. Inspect the brake linings.
Page 421 Miles (Kilometers) [Months] Change the engine oil and engine oil filter. Rotate the tires. Inspect the engine air filter element, and replace if nec- essary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Inspect the drive belt, and replace as needed. Not re- quired if previously replaced.
Page 422 422 SCHEDULE “A” Miles (Kilometers) [Months] Change the engine oil and engine oil filter. Rotate the tires. Inspect the engine air filter element, and replace if nec- essary. Inspect the PCV Valve, and replace if necessary. Inspect the brake linings. Inspect the drive belt, and replace as needed.
Page 423 Inspection and service should also be performed anytime a malfunction is observed or suspected. Retain all re- ceipts. SCHEDULE “A” 423 This maintenance is recommended by the manufac- turer to the owner, but is not required to maintain emissions warranty.
Page 425: If You Need Consumer Assistance
IF YOU NEED CONSUMER ASSISTANCE CONTENTS Suggestions For Obtaining Service For Your Vehicle ..... . . 426 Prepare For The Appointment ... . 426 Prepare A List .
Page 426: Suggestions For Obtaining Service For Your Vehicle
We want you to be happy with our products and services. Warranty service must be done by an authorized Chrysler, Dodge, or Jeep dealer. We strongly recommend that you take your vehicle to your selling dealer. They know you and your vehicle best, and are most concerned that you get prompt and high quality service.
Page 427 technicians, special tools, and the latest information to assure your vehicle is fixed correctly and in a timely manner. This is why you should always talk to your dealer’s service manager first. Most matters can be resolved with this process. •...
Page 428 428 IF YOU NEED CONSUMER ASSISTANCE Customer Assistance For The Hearing Or Speech Impaired (TDD/TTY) To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommuni- cation Devices for the Deaf) equipment at its Customer Center. Any hearing or speech impaired customer who has access to a TDD or a conventional teletypewriter (TTY) in the United States can communicate with the manufacturer by dialing 1–800–380–CHRY.
Page 429: Warranty Information (U.s. Vehicles Only)
WARRANTY INFORMATION (U.S. Vehicles Only) See the Warranty Information Booklet for the terms and provisions of DaimlerChrysler’s warranties applicable to this vehicle. MOPAR PARTS Mopar fluids, lubricants, parts, and accessories are available from your dealer. They will help you keep your vehicle operating at its best.
Page 430: Publication Order Forms
430 IF YOU NEED CONSUMER ASSISTANCE PUBLICATION ORDER FORMS To order the following manuals, you may use either the website or the phone numbers listed below. Visa, Mas- tercard, American Express, and Discover orders are ac- cepted. If you prefer mailing your payment, please call for an order form.
Page 431: Department Of Transportation Uniform Tire Quality Grades
Call Toll Free at: • 1–800–890–4038 (U.S.) • 1–800–387–1143 (Canada) Visit us on the World Wide Web at: • www.techauthority.daimlerchrysler.com • www.daimlerchrysler.ca/manuals DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES The following describes the tire grading categories estab- lished by the National highway Traffic Safety Adminis- tration.
Page 432: Temperature Grades
432 IF YOU NEED CONSUMER ASSISTANCE on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction perfor- mance. WARNING! The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics.
Page 433 INDEX...
Page 434 434 INDEX ABS (Anti-Lock Brake System) ... . 192,281 Adding Fuel ......310 Adding Washer Fluid .
Page 435 Battery ....... 361 Emergency Starting ..... 342 Keyless Transmitter Replacement (RKE) .
Page 436 436 INDEX Child Restraint ..... . 63,70,73 Child Restraint Tether Anchors ... . . 68,70 Child Seat .
Page 437 Dipsticks Oil (Engine) ......354 Disabled Vehicle Towing ....345 Disarming, Theft System .
Page 438 438 INDEX Exhaust Gas Caution ....76,309 Fails to Start ......252 Flooded, Starting .
Page 439 Power Steering ......363 Fluids, Lubricants and Genuine Parts ..398 Fog Light Service .
Page 440 440 INDEX Gross Vehicle Weight Rating ....315 GVWR ....... 313 Hard Top .
Page 441 Introduction ......4 Jack Location ......338 Jack Operation .
Page 442 442 INDEX Fog ......98,396 Hazard Warning Flasher ....336 Headlight Switch .
Page 443 Schedule “B” ......405 Maintenance Schedules ....402 Malfunction Indicator Light (Check Engine) .
Page 444 444 INDEX Oil Pressure Light ..... . . 191 Onboard Diagnostic System ....351,352 Outside Rearview Mirrors .
Page 445 Recreational Towing ..... . 332 Shifting into Transfer Case Neutral (N) ..332 Shifting out of Transfer Case Neutral (N) ..333 Reformulated Gasoline .
Page 446 446 INDEX Adjustment ......85 Cleaning ......381 Easy Entry .
Page 447 Starting ....... 251 Automatic Transmission ....251 Cold Weather .
Page 448 448 INDEX High Speed ......296 Inflation Pressures ..... 294 Jacking .
Page 449 Transmission Automatic ......261 Maintenance ..... . . 374,376 Manual .
Page 450 450 INDEX Wind Buffeting ......34 Window Fogging ......244 Windows .
Page 451 NOTES...
Page 452 NOTES...
Page 453 NOTES...
Page 454 NOTES...
Page 455 NOTES...
Page 456 NOTES...

This manual is also suitable for:

2007 jk wrangler
