21 - 314 AW–4 AUTOMATIC TRANSMISSION
DISASSEMBLY AND ASSEMBLY (Continued)

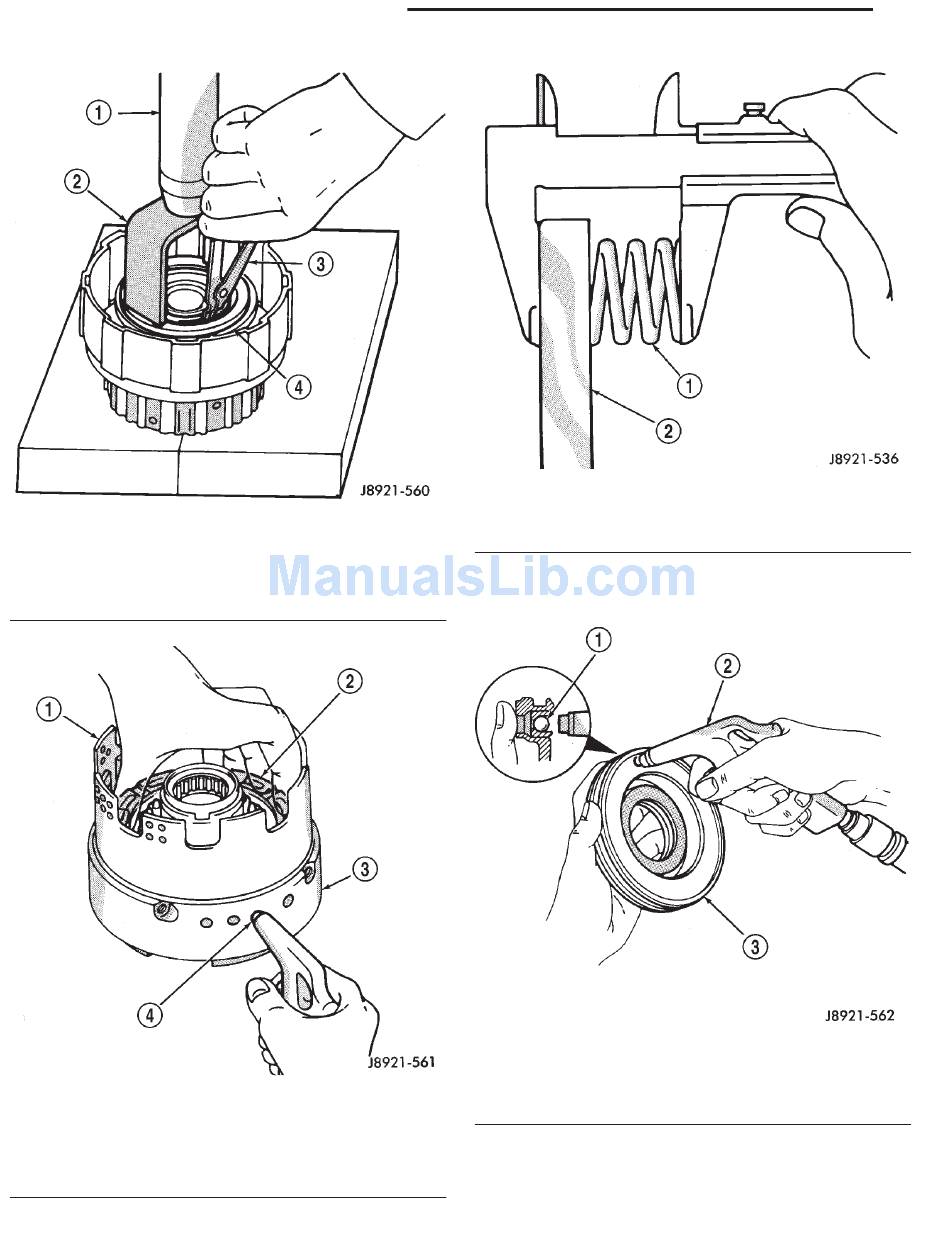

Fig. 243 Removing Piston Return Spring
1 – PRESS RAM
2 – COMPRESSOR TOOL
3 – SNAP RING PLIERS
4 – RETURN SPRING
Fig. 244 Removing Direct Clutch Piston
1 – DIRECT CLUTCH DRUM
2 – CLUTCH PISTON
3 – OVERDRIVE SUPPORT
4 – SUPPORT FEED HOLE
Fig. 245 Checking Piston Return Spring Length
1 – PISTON RETURN SPRINGS
2 – SPRING RETAINER
to ball inlet as shown. Air should not leak past check
ball.
Fig. 246 Testing Piston Check Ball Seating
1 – PISTON CHECK BALL
2 – USE LOW-PRESSURE AIR TO CHECK SEATING
3 – DIRECT CLUTCH PISTON
(16) Measure inside diameter of clutch drum bush-
ing. Inside diameter should be no more than 53.97
mm (2.1248 in.). Replace drum if bushing inside
diameter is greater than specified.
XJ
