21 - 186 AUTOMATIC TRANSMISSION—30RH
DISASSEMBLY AND ASSEMBLY (Continued)
(6) Remove front planetary gear front thrust
washer from annulus gear hub.
(7) Separate and remove driving shell, rear plane-
tary and rear annulus from output shaft (Fig. 201).
(8) Remove front planetary rear thrust washer
from driving shell.
(9) Remove tabbed thrust washers from rear plan-
etary gear.
(10) Remove lock ring that retains sun gear in
driving shell. Then remove sun gear, spacer and
thrust plates.

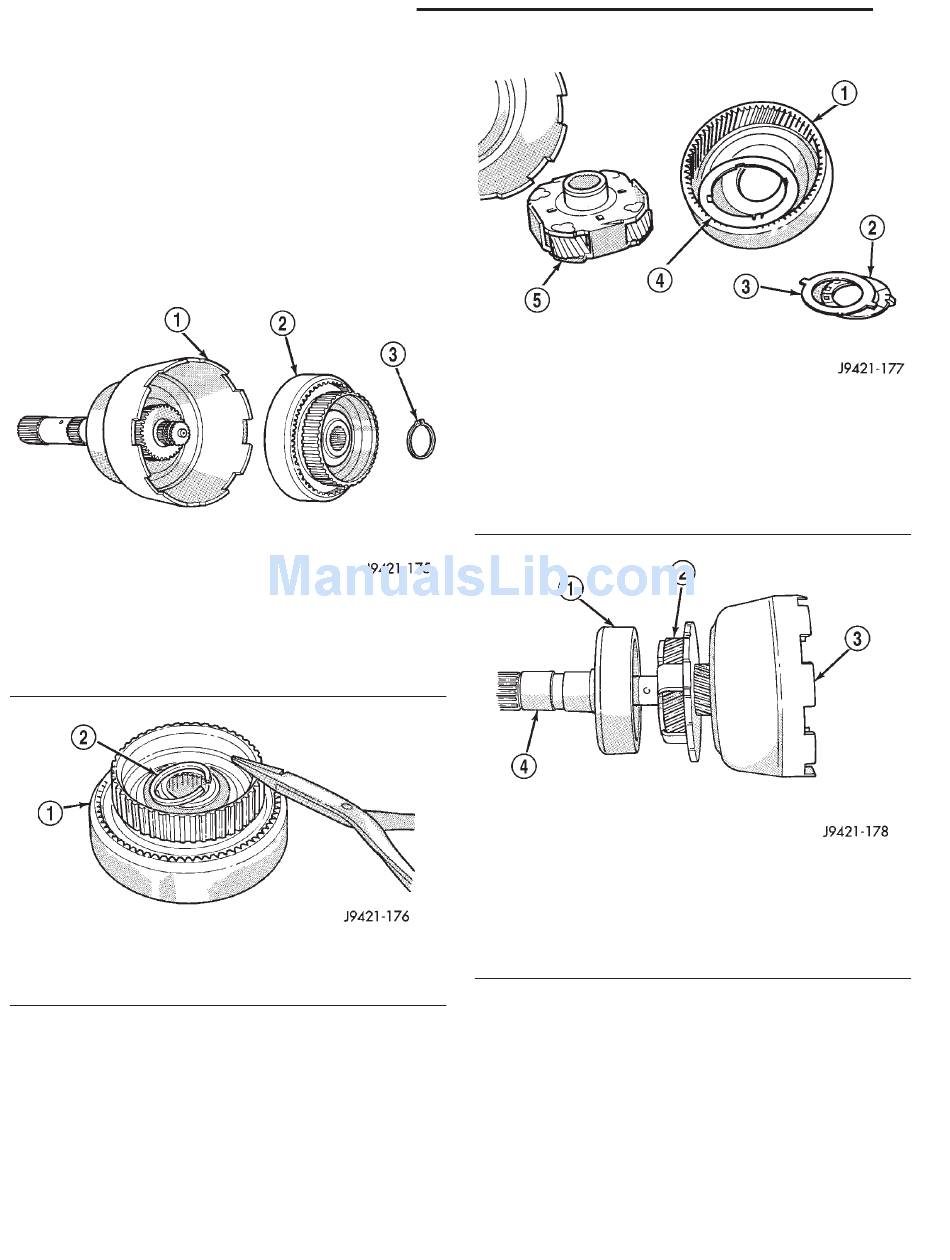

Fig. 198 Front Annulus And Planetary Assembly
1 – DRIVING SHELL
2 – FRONT ANNULUS AND PLANETARY ASSEMBLY
3 – PLANETARY SNAP RING
Fig. 199 Front Planetary Snap Ring Removal
1 – FRONT ANNULUS GEAR
2 – PLANETARY SNAP RING
ASSEMBLY
(1) Lubricate output shaft and planetary compo-
nents with transmission fluid. Use petroleum jelly to
lubricate and hold thrust washers and plates in posi-
tion.
(2) Assemble rear annulus gear and support if dis-
assembled. Be sure support snap ring is seated and
that shoulder-side of support faces rearward (Fig.
202).
Removal
Fig. 200 Front Planetary And Annulus Gear
Disassembly
1 – FRONT ANNULUS
2 – THRUST WASHER
3 – THRUST PLATE
4 – FRONT THRUST WASHER
5 – FRONT PLANETARY
Fig. 201 Removing Driving Shell, Rear Planetary
And Rear Annulus
1 – REAR ANNULUS
2 – REAR PLANETARY
3 – DRIVING SHELL
4 – OUTPUT SHAFT
(3) Install rear thrust washer on rear planetary
gear. Use enough petroleum jelly to hold washer in
place. Also be sure all four washer tabs are properly
engaged in gear slots.
(4) Install rear annulus over and onto rear plane-
tary gear (Fig. 202).
(5) Install assembled rear planetary and annulus
gear on output shaft (Fig. 203). Verify that assembly
is fully seated on shaft.
(6) Install front thrust washer on rear planetary
gear (Fig. 204). Use enough petroleum jelly to hold
XJ
