Throttle Pressure Adjustment; Schematics And Diagrams; Hydraulic Schematics - Jeep 200 Cherokee Service Manual

Table of Contents

ADJUSTMENTS (Continued)

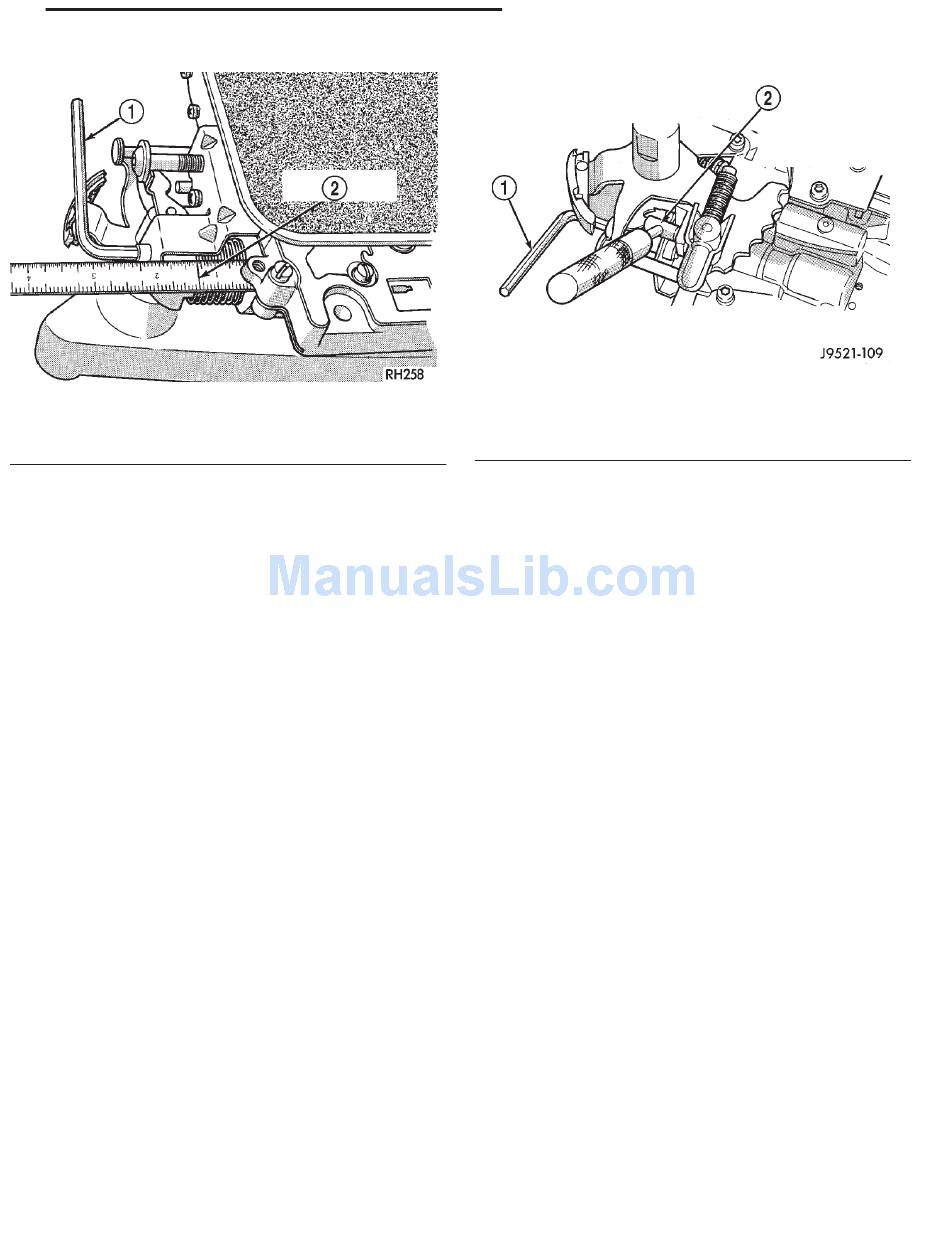

Fig. 234 Line Pressure Adjustment

2 – 1–5/16 INCH

NOTE: The kickdown valve spring must be fully

compressed and the kickdown valve completely

bottomed to obtain correct adjustment.

AUTOMATIC TRANSMISSION—30RH

Fig. 235 Throttle Pressure Adjustment

1 – HEX WRENCH (IN THROTTLE LEVER ADJUSTING SCREW)

2 – SPECIAL TOOL C-3763 (POSITIONED BETWEEN THROTTLE

LEVER AND KICKDOWN VALVE)
