21 - 324 AW–4 AUTOMATIC TRANSMISSION
DISASSEMBLY AND ASSEMBLY (Continued)

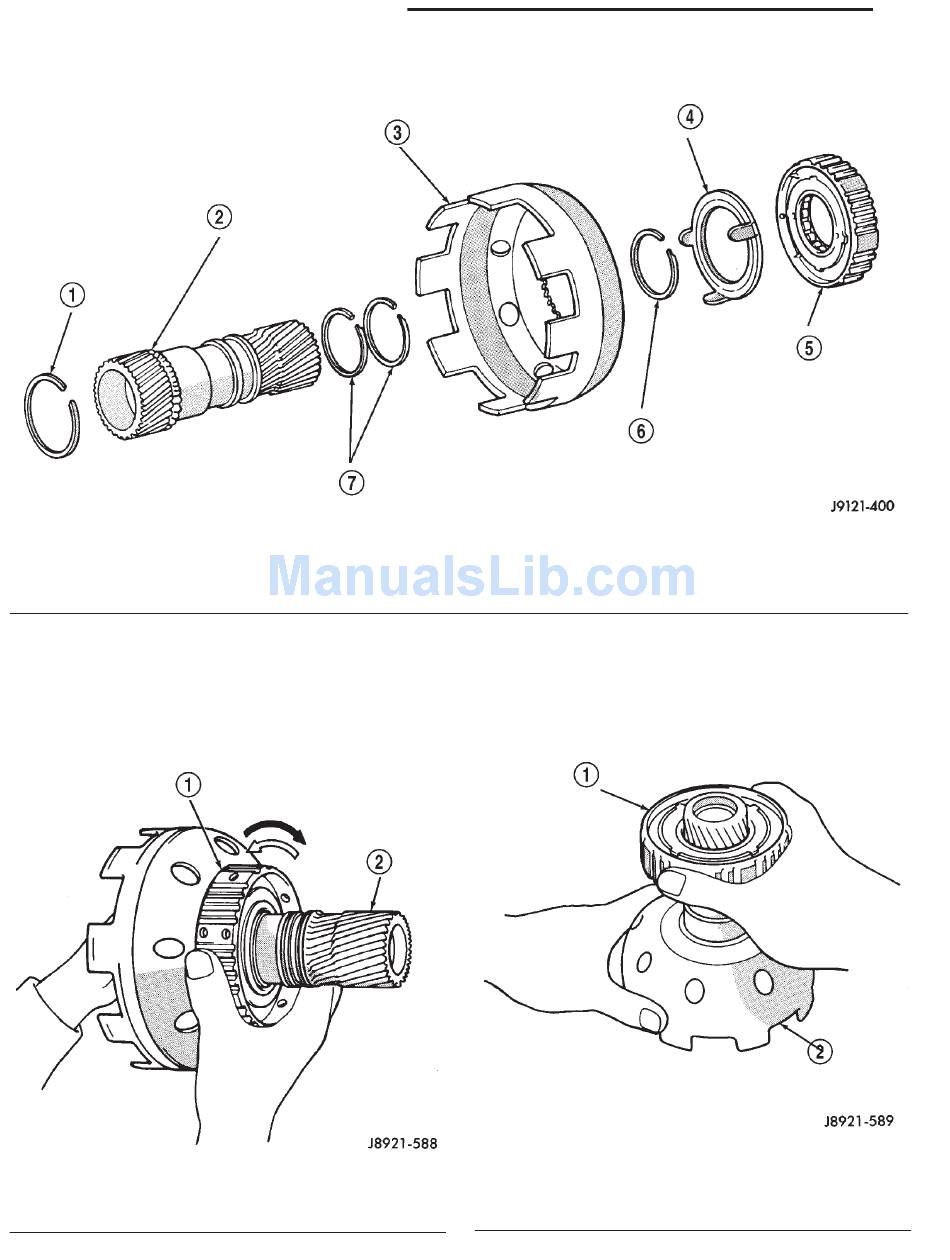

SUN GEAR AND NO. 1 ONE–WAY CLUTCH
1 – SNAP RING
2 – SUN GEAR
3 – SUN GEAR INPUT DRUM
4 – THRUST WASHER
DISASSEMBLY
(1) Hold sun gear and turn second brake hub
clockwise and counterclockwise (Fig. 272). Hub
should rotate freely clockwise but lock when turned
Fig. 272 Checking One–Way Clutch Operation
1 – SECOND BRAKE HUB
2 – SUN GEAR
Sun Gear And One–Way Clutch Components
5 – ONE-WAY CLUTCH AND SECOND BRAKE HUB ASSEMBLY
6 – SNAP RING
7 – SEAL RINGS
counterclockwise. Replace one–way clutch and hub if
they do not operate properly.
(2) Remove one–way clutch/second brake hub
assembly from drum (Fig. 273).
Fig. 273 Removing/Installing Brake Hub And Clutch
Assembly
1 – HUB AND CLUTCH ASSEMBLY
2 – DRUM
XJ
