Front Planetary Gear Assembly; Front Planetary Rear Bearing And Race Installation; Front Planetary Thrust Race Installation; Front Planetary Front Bearing And Races Installation - Jeep 200 Cherokee Service Manual

XJ
DISASSEMBLY AND ASSEMBLY (Continued)
(5) Remove rear bearing and race from planetary gear.
(6) Measure inside diameter of ring gear bushing.
Maximum allowable diameter is 24.08 mm (0.9480
in.). Replace ring gear if bushing inside diameter is
greater than specified.
(7) Check condition of planetary gear. Replace gear
if teeth are worn, pins are loose, or carrier is cracked,
distorted, or worn.
ASSEMBLY
(1) Lubricate planetary and ring gear bearings and
races with petroleum jelly.
(2) Identify planetary bearings and races before
installation. (Fig. 268). Bearings and races can be
identified by following dimensions:
• Outer diameter of rear bearing is 47.7 mm
(1.878 in.). Inner diameter is 35.5 mm (1.398 in.).
• Outer diameter of rear race 47.6 mm (1.874 in.).
Inner diameter is 33.7 mm (1.327 in.).
• Outer diameter of front race is 53.6 mm (2.110
in.). Inner diameter is 30.5 mm (1.201 in.).
• Outer diameter of front bearing is 47.7 mm
(1.878 in.). Inner diameter is 32.6 (1.283 in.).
• Outer diameter of forward race is 47.0 mm
(1.850 in.). Inner diameter is 26.5 mm 1.043 in.).
(3) Install rear race and bearing in gear (Fig. 269).
(4) Turn planetary over and install thrust race
(Fig. 270).
(5) Install front race and bearing and forward race
in ring gear (Fig. 271).

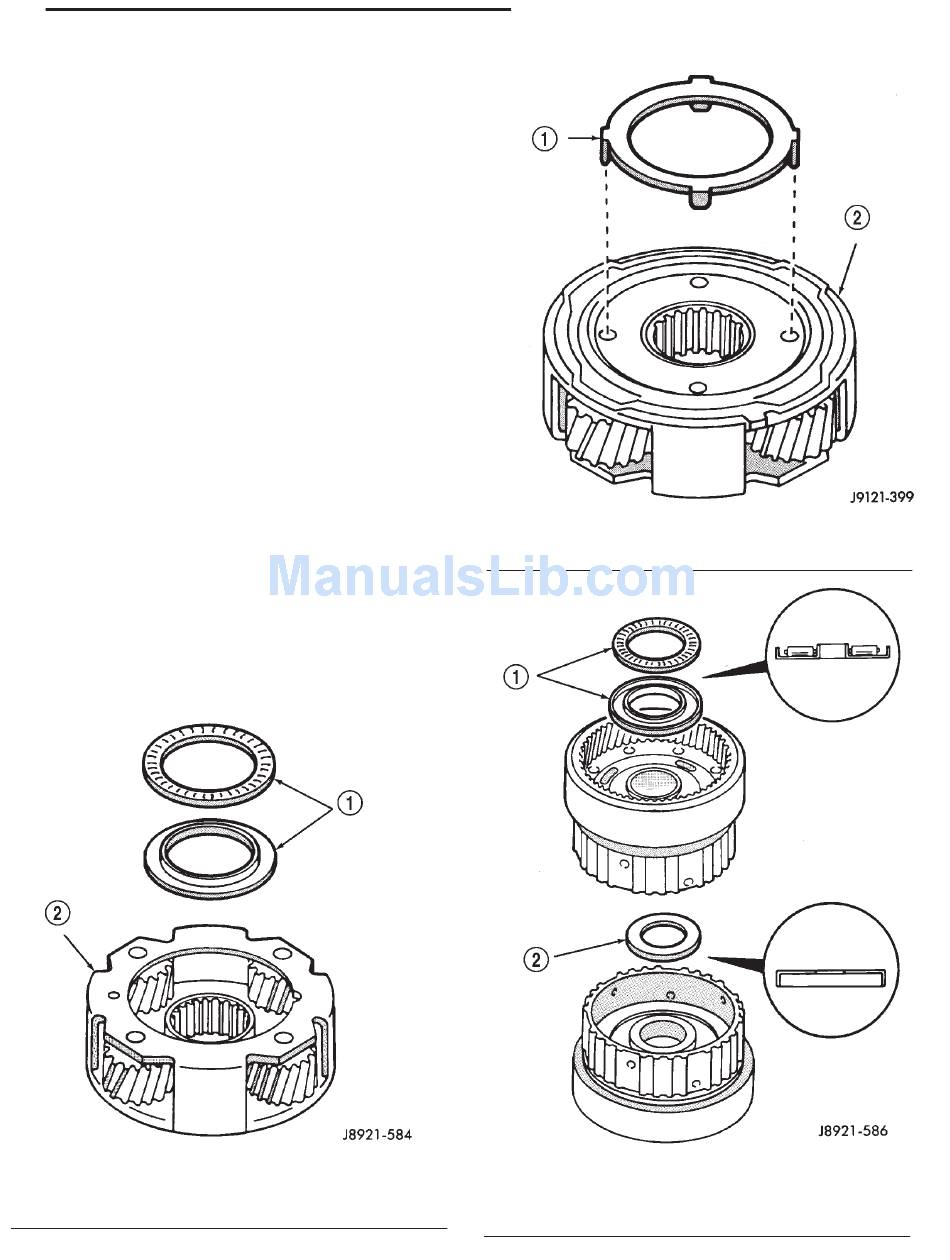

Fig. 269 Front Planetary Rear Bearing and Race
Installation
1 – REAR BEARING AND RACE
2 – PLANETARY GEAR
AW–4 AUTOMATIC TRANSMISSION
Fig. 270 Front Planetary Thrust Race Installation
1 – TABBED THRUST RACE
2 – PLANETARY GEAR
Fig. 271 Front Planetary Front Bearing And Races
Installation
1 – FRONT BEARING AND RACE
2 – FORWARD RACE
21 - 323
