Scenario 3: A Dual-Location Company
Sales Administration
Conference
and Support (5)
Room
QC
Operator/
Manager
Receptionist
Secretary
Drafting
(2)
Plant
Manager
Warehouse (6)
Engineering
(2)
Shipping/Receiving (2)
West Coast
Division

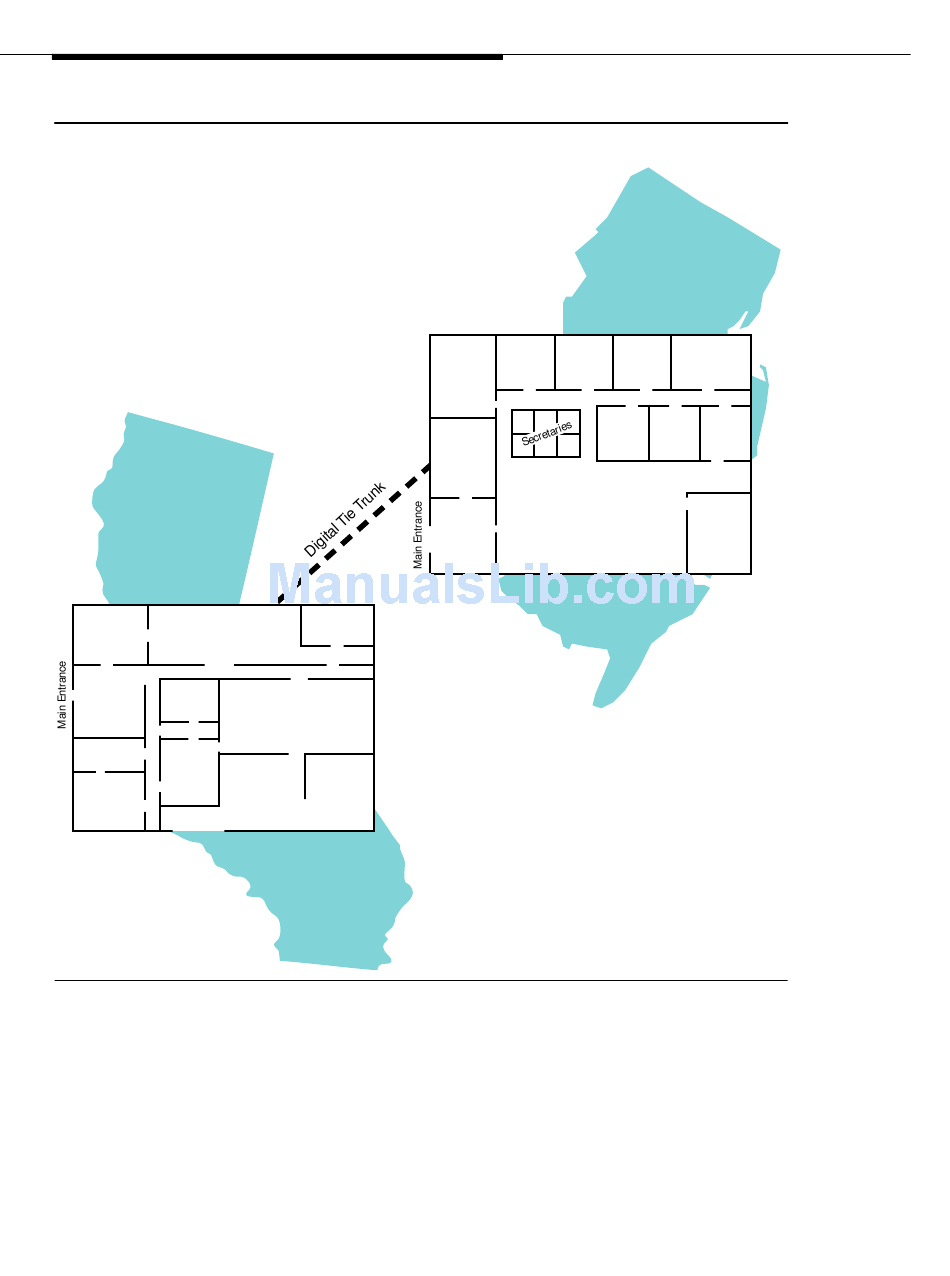

Figure 5–5. Dual-Location Company Floor Plans
