Removing/Reinstalling the Control Unit Housing
Installing the Front Cover

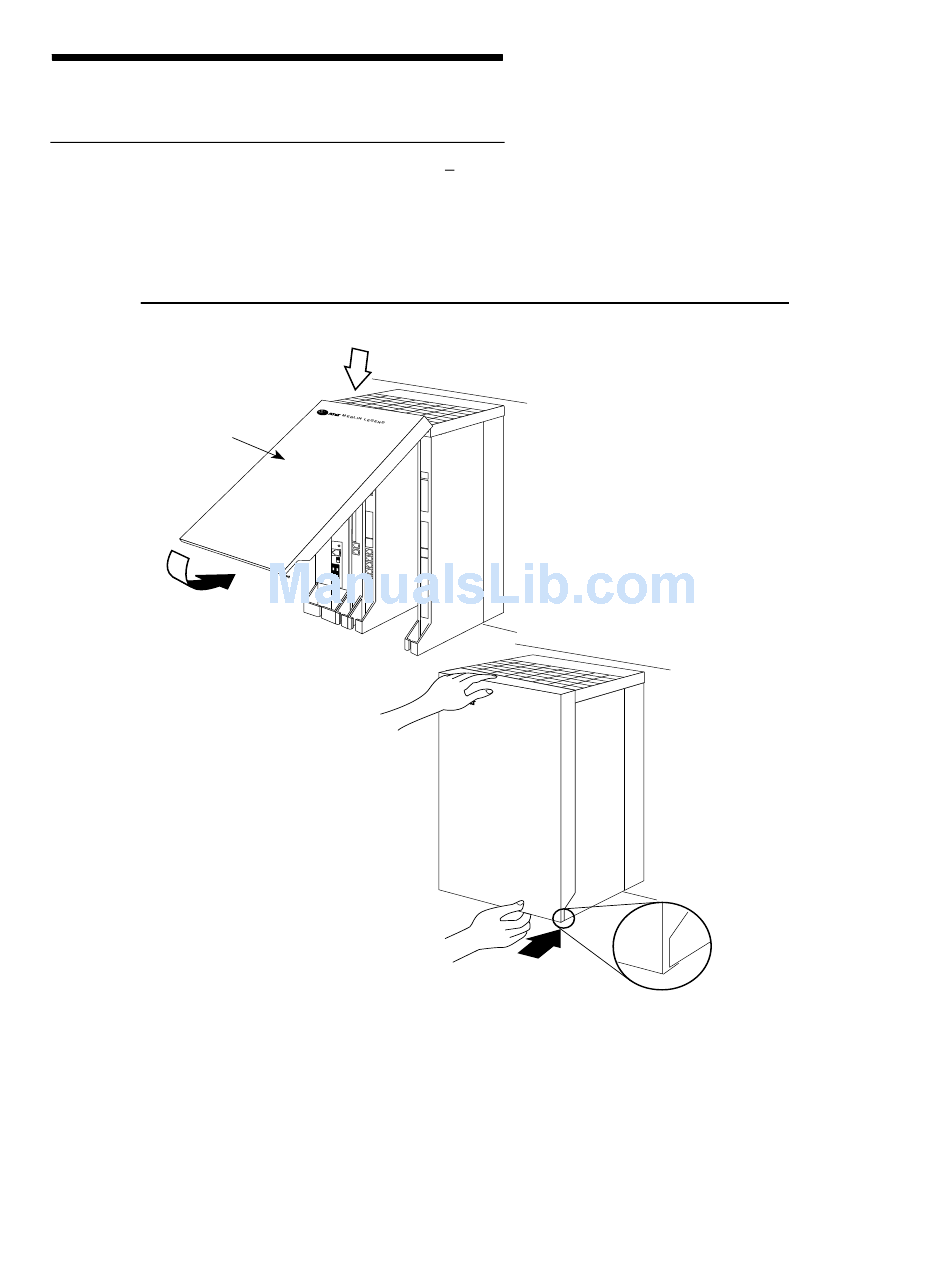

To install the front cover, see Figure E 3 and follow these steps:
1. Hook the top of the front cover into the top cover.
2. Push down on the bottom of the front cover until it locks securely on the
base of the wire manager on the modules.
Front
cover
Figure E–3. Installing the Front Cover
E–4
System Manager's Guide
