Telephones
MLX-16DP
The MLX-16DP telephone (Figure 3 6) provides the following features:
Display (2 lines by 24 characters)
16 line buttons that can be programmed with features
4 fixed display buttons, 4 unlabeled display buttons for screen selection,
and 8 fixed-feature buttons
Support of PassageWay Direct Connect Solution, version 2.1 or later
MLX-16DP telephones cannot be wall-mounted.
NOTES:
1. The MLX-16DP telephone cannot be an operator console.
2. The system recognizes the MLX-16DP as an MLX-28D. For this reason, when
programming the telephone, be careful not to assign lines or features to
buttons that do not actually exist on the telephone. Programming instructions
come with the equipment.
Handset

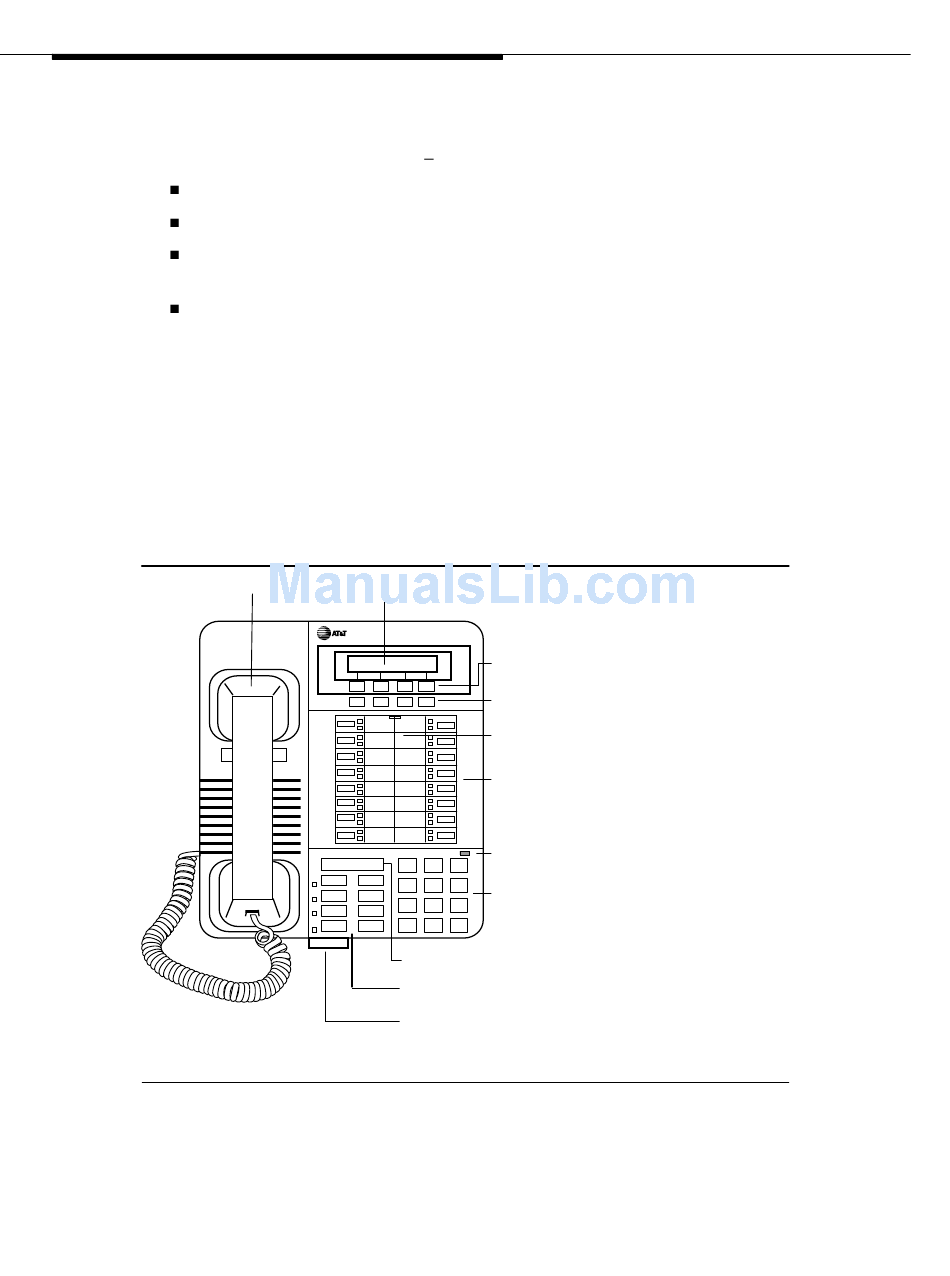

Figure 3–6. MLX-16DP Telephone
3–18
System Components
Display Screen
MLX-16DP
Unlabeled Display Buttons (4)
Fixed- Display Buttons (4)
Home Menu Inspct More
Button Labeling Card
Line Buttons (16)
Message Light
Message
v
v
ABC DEF
Volume
1 2 3
Feature
Transfer MNO
GHI JKL
4 5 6
Dialpad
HFAI
Conf
PQRS TUV WXYZ
7 8 9
Mute
Drop
OPER
Speaker
Hold * 0 #
Volume Control
Fixed-Feature Buttons (8)
User Cards and Tray
