Labconco Protector 3944300 User Manual

Demonstration hoods
Hide thumbs

Advertisement

Quick Links

Download this manual
Protector
Demonstration Hoods
Models
3944300, 3944301
3945000, 3945001
3945020, 3945021

Advertisement

loading
Need help?

Need help?

Do you have a question about the Protector 3944300 and is the answer not in the manual?

Questions and answers

Related Manuals for Labconco Protector 3944300

Summary of Contents for Labconco Protector 3944300

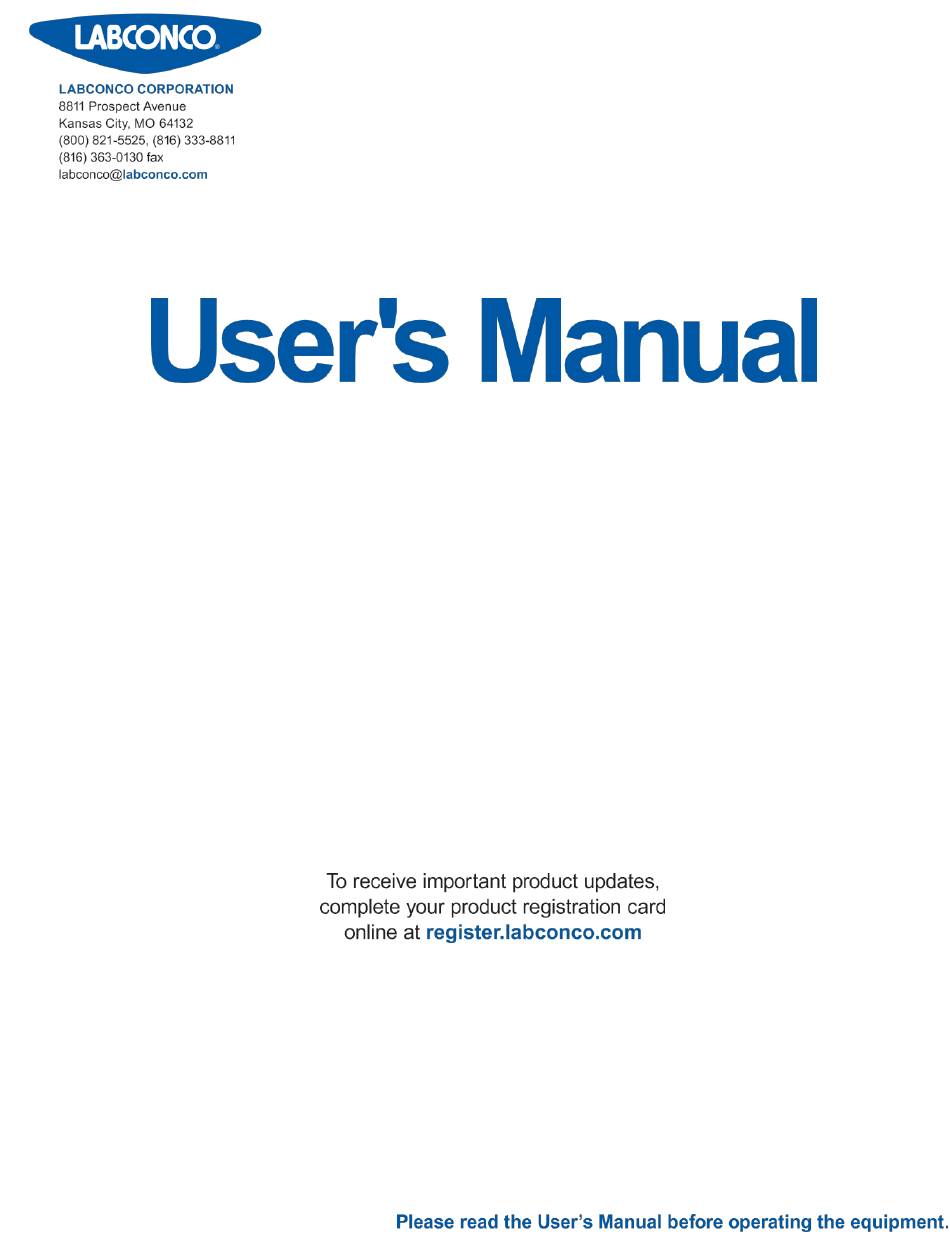

  • Page 1  Protector Demonstration Hoods Models 3944300, 3944301 3945000, 3945001 3945020, 3945021...
  • Page 2 Labconco Corporation is held harmless with respect to user’s compliance with such regulations.
  • Page 3 CHAPTER 1: INTRODUCTION CHAPTER 2: PREREQUISITES Support Requirements Location and Air Current Requirements Exhaust and Blower Requirements Electrical Requirements Space Requirements CHAPTER 3: GETTING STARTED Unpacking the Hood Installing the Hood on a Supporting Structure & Work Surface Connecting to the Exhaust System Connecting the Electrical Supply Sealing to the Work Surface Validating the Hood...
  • Page 4 Guardian Digital 1000 Kit No. 3908800 or 3908801 Guardian Digital 1000 Operation Guardian Digital 1000 Installation Procedure Guardian Digital 1000 Calibration Digital 1000 Alternate Calibration Procedure – Constant Volume Conditions Replacement Latch Kits CHAPTER 7: ACCESSORIZING YOUR PROTECTOR DEMONSTRATION HOOD Work Surfaces Guardian Digital 1000 and Guardian 500 Airflow Monitors Fluorescent Lights...
  • Page 5 Your high performance enclosure is designed to protect you by providing superior containment while conserving energy at OSHA approved “low flow” velocities as low as 60 feet per minute. It is the result of Labconco’s more than 50 years of experience in manufacturing fume hoods.
  • Page 6 Chapter 1: Introduction Protector Demonstration Hood System 3945001 Product Service 1-800-522-7658...
  • Page 7 At a minimum, the supporting structure usually consists of a base cabinet, or a base stand and chemically-resistant work surface. When setting up a chemical station, a mobile stand or cart is allowable. Labconco manufactures a mobile cart with work surface specifically designed to support the Protector Demonstration Hood and FilterMate Portable Exhauster.
  • Page 8 The enclosure must be connected to either a dedicated blower, a house exhaust system or a dedicated filtered exhauster, such as a Labconco FilterMate Portable Exhauster. Labconco offers three accessory remote blowers listed in Chapter 7.
  • Page 9 Chapter 2: Prerequisites Electrical Requirements Standard duplex electrical receptacles should be nearby for connecting the Demonstration Hood, FilterMate Portable Exhauster, an airflow monitor, accessory Fluorescent Light or other equipment. For your convenience both the accessory FilterMate and accessory fluorescent light kit have auxiliary outlet receptacles. It is required that the airflow monitor be connected directly to the auxiliary switched outlet on the rear of the FilterMate so the airflow monitor is ON when the blower is ON.
  • Page 10 DO NOT RETURN GOODS WITHOUT THE PRIOR AUTHORIZATION delivery OF LABCONCO. UNAUTHORIZED RETURNS WILL NOT BE carrier within ACCEPTED. fifteen (15) days of IF ENCLOSURE WAS DAMAGED IN TRANSIT, YOU MUST FILE A delivery.
  • Page 11 The front of the hood should be aligned within 1/8" of the front of the work surface. Mounting holes are provided in Labconco accessory work surfaces to secure the hood. The mobile Demonstration Hood features a work surface attached to the cart.
  • Page 12 For your convenience several exhaust options are shown in Figures 3-2, 3-3, 3-4, 3-5 and 3-6. Consult Labconco Customer Service should you require help sizing your blower for the exhaust volume and system static pressure loss.
  • Page 13 Chapter 3: Getting Started Airflow monitor moved forward per Chapter 6. Figure 3-2 Top Connection to Outside Exhaust Product Service 1-800-522-7658...
  • Page 14 Chapter 3: Getting Started Airflow monitor moved forward per Chapter 6. Figure 3-3 Side View of Bottom Connection to Outside Product Service 1-800-522-7658...
  • Page 15 Chapter 3: Getting Started (Moved forward per Chapter 6) Figure 3-4 Top Connection to FilterMate Portable Exhauster Product Service 1-800-522-7658...
  • Page 16 Chapter 3: Getting Started Airflow monitor moved forward per Chapter 6. Figure 3-5 Bottom Connection to FilterMate With Outside Thimble Exhaust Connection Product Service 1-800-522-7658...
  • Page 17 Chapter 3: Getting Started (Moved forward per Chapter 6) Airflow monitor moved forward per Chapter 6. Figure 3-6 Connection to FilterMate on Mobile Cart Product Service 1-800-522-7658...
  • Page 18 12"; the first row is 3" down from the upper sash foil and the second row is 3" up from the work surface. Labconco recommends an average face velocity at the sash opening of 60 to 100 feet per minute for Protector Demonstration Hoods.
  • Page 19 What makes the Protector Demonstration Hood so unique is the revolutionary way it directs air into and through the contaminated air chamber. Labconco engineered the hood to minimize the effects of turbulence. The containment enhancing and aerodynamic designs of the...
  • Page 20 Chapter 4: High Performance Features and Safety Precautions Airflow monitor moved forward per Chapter 6. Figure 4-1 Product Service 1-800-522-7658...
  • Page 21 Chapter 4: High Performance Features and Safety Precautions 1. Aerodynamic Clean-Sweep™ Air Foil has a unique low profile shape that allows air to sweep the work surface for maximum containment. The Clean-Sweep™ openings create a constant protective barrier from contaminants. In addition, should the operator inadvertently block the airflow entering the air foil, air continues to pass under the air foil and through the Clean-Sweep openings.
  • Page 22 Chapter 4: High Performance Features and Safety Precautions 3. Upper Dilution Air Supply provides bypass air from above the work area. This feature constantly bathes the sash interior with clean air and reduces powders and chemical fumes along the sash plane, near the critical breathing zone.
  • Page 23 Chapter 4: High Performance Features and Safety Precautions 10. Electrical Pass through Iris allows electrical cords and data cords to pass through the back of hood without leaving a large hole for contaminants to escape. The hood ships with solid plugs and the iris plugs are included with the instruction manual for your convenience.
  • Page 24 Chapter 4: High Performance Features and Safety Precautions Safety Precautions Although the hood has been engineered to maintain optimum operator safety, caution should always be used while working. Prior to using the hood, check to make sure that the exhaust blower is operating and that air is entering the hood at its specified face velocity.
  • Page 25 Planning  Thoroughly understand procedures and equipment required before beginning work.  Arrange for minimal disruptions, such as room traffic or entry into the room while the hood is in use. Start-up  Turn on exhaust system and accessory light if so equipped. ...
  • Page 26 Chapter 5: Using Your Protector Demonstration Hood Final Purging  Upon completion of work, the hood should be allowed to operate for two to three minutes undisturbed, to purge airborne contaminants from the work area before shutting down the blower. Unloading Materials and Equipment ...
  • Page 27 Now that you have an understanding of how to work in the hood, we will review the suggested maintenance schedule and the common service operations necessary to maintain your hood for peak performance. Only trained and experienced certification technicians should perform some of the service operations after the hood has been properly decontaminated.
  • Page 28 Chapter 6: Maintaining Your Protector Demonstration Hood Annually  Have the hood validated by a qualified certification technician. See Validating the Hood in Chapter 3.  All monthly activities. Guardian™ 500 Airflow Monitor Kit No. 3944700 or 3944701 The Guardian 500 Airflow Monitor is designed to continuously monitor airflow through enclosures and fume hoods.
  • Page 29 Chapter 6: Maintaining Your Protector Demonstration Hood Figure 6-1 Component Identification Guardian 500 Installation Procedure 1. The enclosure comes prepared to except the Guardian™ 500 Airflow Monitor. 2. First remove the large 1.19" dia. gray hole plug. See Figure 2. See Figure 3 only to reference internal assembly of the airflow monitor.
  • Page 30 Chapter 6: Maintaining Your Protector Demonstration Hood Remove Large 1.19" Dia. Hole Plug Install Elbow, Locknut and Washer Figure 6-2 Hole Plug and Mounting Screws Location Display Guardian 500 Monitor Figure 6-3 Guardian 500 Details Product Service 1-800-522-7658...
  • Page 31 Chapter 6: Maintaining Your Protector Demonstration Hood Guardian 500 Calibration Procedure Each alarm module and enclosure/fume hood is unique and needs to be individually calibrated in the field. The procedure for the adjustment is as follows: 1. Double check the installation to make sure that monitor and power supply are properly installed.
  • Page 32 Chapter 6: Maintaining Your Protector Demonstration Hood NOTE: After an alarm condition has been detected, the red light will stay on. The audible alarm will remain muted until airflow returns to normal levels. Accessory Light Enclosure Hose Cover Monitor Figure 6-4 Guardian 500 Installation Product Service 1-800-522-7658...
  • Page 33 For complete detailed information, please refer to the separate Labconco 1000 Alarm User’s Manual provided with the enclosure. Guardian Digital 1000 Installation Procedure 1.
  • Page 34 Chapter 6: Maintaining Your Protector Demonstration Hood Remove Large 1.19" Dia. Hole Plug Install Elbow, Locknut and Washer Figure 6-5 Hole Plug and Mounting Screws Location Airflow Sensor Display Digital 1000 Monitor Figure 6-6 Digital 1000 Airflow Monitor Details Product Service 1-800-522-7658...
  • Page 35 Chapter 6: Maintaining Your Protector Demonstration Hood Accessory Light Enclosure Hose Cover Monitor Figure 6-7 Digital 1000 Airflow Monitor Installation Product Service 1-800-522-7658...
  • Page 36 WARNING” air reset to 3 fpm. This sets the alarm condition. 5. To complete the CAL CONFIGURATION, be sure to enter “DONE”. 6. To start the calibration mode, use the Labconco 1000 Manual and enter “CALIBRATION” mode on the display from the SETUP menu.
  • Page 37 60 – 70 80 fpm 83 - 93 80 - 90 100 fpm Because of airflow fluctuations in a typical laboratory environment Labconco suggests setting the “RED LED” low alarm set point to 20% below the enclosure’s operating speed. Product Service 1-800-522-7658...
  • Page 38 Chapter 6: Maintaining Your Protector Demonstration Hood 5. To complete the CAL CONFIGURATION, be sure to enter “DONE”. If needed, refer to the Configuration procedure provided on the following page for additional details. 6. To start the calibration mode, enter “CALIBRATION” mode on the display from the SETUP menu.
  • Page 39 Chapter 6: Maintaining Your Protector Demonstration Hood CALIBRATION - CONFIGURATION MENU SETTINGS DISPLAY UNITS * 48 FPM (60 fpm Operating inflow) LOW AIR ALARM “RED LED” * 64 FPM (80 fpm Operating inflow) * 80 FPM (100 fpm Operating inflow) LOW AIR CUTOFF * 51 FPM (60 fpm Operating inflow) WARNING AIR ALARM...
  • Page 40 There are several ways to accessorize the hood for your individual requirements. These include the addition of accessory work surfaces, airflow monitors, fluorescent lights, exhaust transition adapters, hoses, remote blowers, exhaust dampers, FilterMate Portable Exhausters, filters, storage cabinets and mobile carts. Product Service 1-800-522-7658...
  • Page 41 Chapter 8: Troubleshooting Optional Equipment for the Demonstration Hood Airflow monitor moved forward per Chapter 6. Figure 7-1 1. Work Surfaces An optional dished work surface is available to attach to the hood. Dished work surfaces are contoured to fit the dimensions of the hood to contain spills.
  • Page 42 Chapter 7: Accessorizing Your Protector Demonstration Hood 2. Guardian™ Digital 1000 and Guardian™ 500 Airflow Monitors The Guardian Digital 1000 Airflow Monitor or Guardian 500 Airflow Monitor allows you to continuously monitor airflow through the hood. The rear exhaust plenum is factory prepared to mount either monitor. Catalog # Description 3944700...
  • Page 43 Chapter 8: Troubleshooting 5. Remote Blowers Has a 1/4 hp direct drive motor and corrosion-resistant phenolic coated-steel housing and wheel with blower inlet of 6.00" ID. Outlet dimensions are 4.25" x 7.38" OD. CFM @ Static Pressure-Inches of H S.P. 0.0"...
  • Page 44 Chapter 7: Accessorizing Your Protector Demonstration Hood 7. FilterMate Portable Exhausters and Filters For filtered exhaust, Labconco offers FilterMate Portable Exhausters capable of exhausting up to 280 cfm of HEPA filtered air or up to 220 cfm of combination Dual Carbon or HEPA/Carbon filtered air when connected to the enclosure.
  • Page 45 Chapter 8: Troubleshooting 8. Storage Cabinets SOLVENT ACID Size/Description Dual Doors Right Hinge Left Hinge Dual Doors Right Hinge Left Hinge 48" 9902000 9901000 36" 9902100 9901100 30" 9902200 9901200 24" 9902300 9902400 9901300 9901500 18" 9901400 9901600 12" 48" w/Self Closing Doors 9903000 36"...
  • Page 46 Chapter 7: Accessorizing Your Protector Demonstration Hood 9. Mobile Cart 8026000 Provides a mobile cart and dished solid epoxy work surface for supporting the Protector Demonstration Hood. 10. Hoses, Hose Clamps, and Hose Kits Provides alternatives for ducting. Catalog # Description 4868600 8 Feet of 5"...
  • Page 47 Refer to the following table if your Protector Demonstration Hood fails to operate properly. If the suggested corrective actions do not solve your problem, contact Labconco for additional assistance. PROBLEM CAUSE CORRECTIVE ACTION See “Certifying the Hood” Chapter 3 Contaminants Improper user and “Safety Precautions”...
  • Page 48 Chapter 8: Troubleshooting PROBLEM CAUSE CORRECTIVE ACTION Airflow monitor No power. Power supply is not plugged into malfunction. No lights. proper voltage; plug in power No display. supply. Verify that airflow monitor interface cables are connected. Check fuses on FilterMate or accessory light. No audible alarm.
  • Page 49 The following illustrations indicate the replacement parts. Product Service 1-800-522-7658...
  • Page 50 Appendix A: Replacement Parts Item Qty. Part Number Description 3906500 Glass, Side Short 3926500 Glass, Side Tall 3906801 Glass, Top 3' 3906101 Glass, Sash 3' Short 3926101 Glass, Sash 3' Tall 3907601 Foil, Sash 3' 2.3 Ft. 6913700 Wiper, Sash 3907500 Stop, Right Sash 3907501...
  • Page 51 Appendix A: Replacement Parts Item Qty. Part Number Description 3942500 Baffle Assy, Short 3941700 Baffle Assy, Tall 1914200 Captive Screw, Baffle 1923900 Receptacle, Clip-on 3943000 Shelf, Demo Cart 8009501 Caster 4" w/ Brake Demo Cart Airflow monitor moved forward per Chapter 6. Figure A-1A Product Service 1-800-522-7658...
  • Page 52 Appendix A: Replacement Parts Airflow monitor moved forward per Chapter 6. Figure A-1B Product Service 1-800-522-7658...
  • Page 53 Product Service 1-800-522-7658...
  • Page 54 Electrical Specifications  115V, 60 Hz Mobile Demonstration Hood, 10 Amps Max.  230V, 50/60 Hz Mobile Demonstration Hood, 5 Amps Max. Environmental Conditions  Indoor use only.  Maximum altitude: 6562 feet (2000 meters).  Ambient temperature range: 41° to 104°F (5° to 40°C). ...
  • Page 55 Appendix C: Specifications Product Service 1-800-522-7658...
  • Page 56 Appendix C: Specifications Product Service 1-800-522-7658...
  • Page 57 Many excellent reference texts and booklets are currently available. The following is a brief listing: Laboratory Ventilation Standards Federal Register 29 CFR Part 1910 Non-mandatory recommendations from “Prudent Practices”.  Fume hoods should have a continuous monitoring device  Face velocities should be between 60-100 linear feet per minute (lfpm) ...
  • Page 58 Appendix D: References ASHRAE 110-1995 Method of Testing Performance of Fume Hoods Evaluates fume hood’s containment characteristics  Three part test: Smoke generation, Face velocity profile, Tracer gas release @ 4 liters per minute  Rated As Manufactured (AM), As Installed (AI) and As Used (AU) American Society of Heating, Refrigerating, and Air Conditioning Engineers 1791 Tullie Circle N.E.
  • Page 59 Appendix D: References National Fire Protection Association 1 Batterymarch Park P.O. Box 9101 Quincy, MA 02269-9101 (800) 344-3555 www.nfpa.org General References American Conference of Governmental Industrial Hygienists. Industrial Ventilation, A Manual of Recommended Practice, Cincinnati, OH ASHRAE Standard Committee. ASHRAE Standard Atlanta: ASHRAE Publications Sales Department, 1995 British Standards Institution, Laboratory Fume Cupboards.
