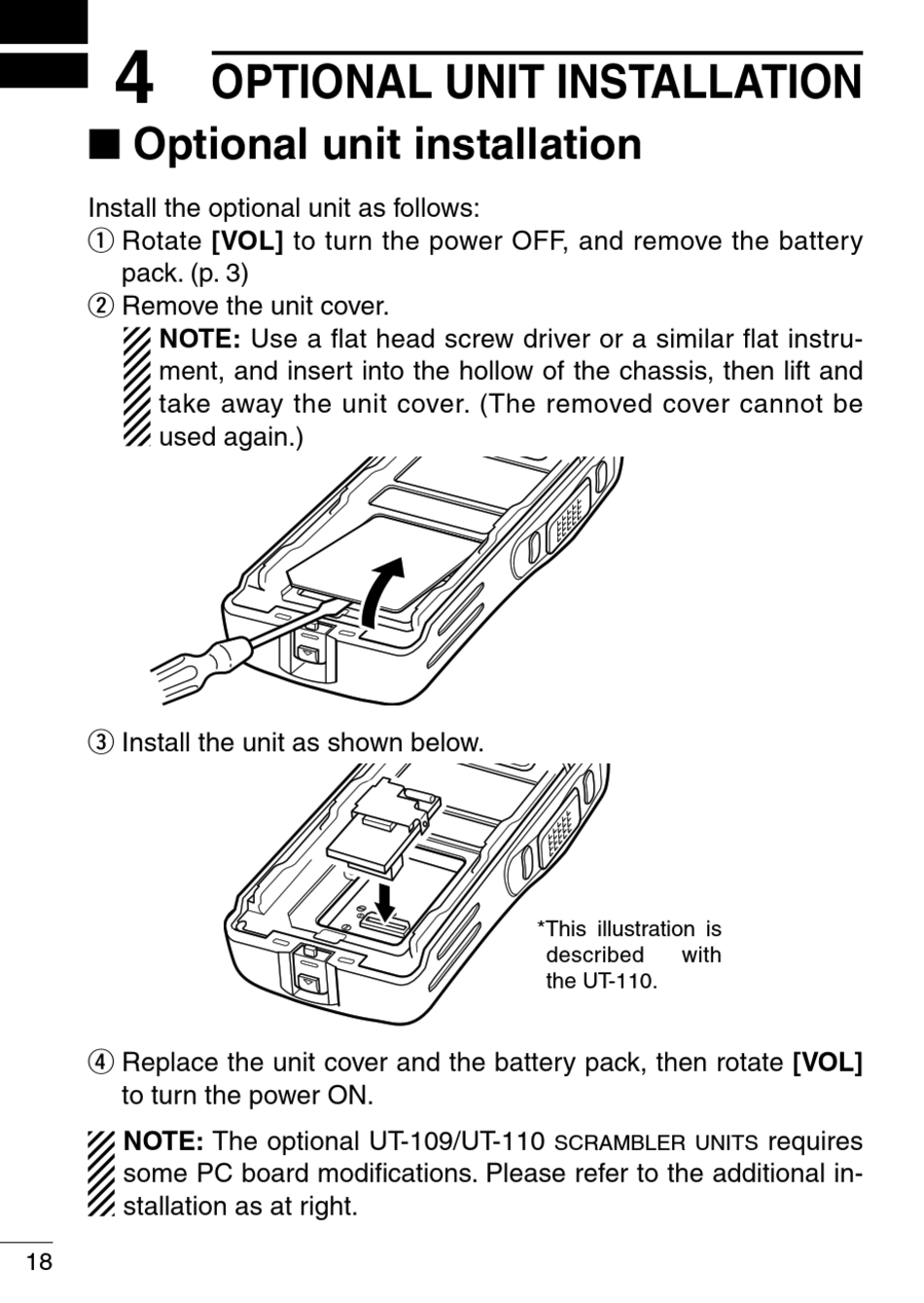

■ Optional unit installation

Install the optional unit as follows:
q Rotate [VOL] to turn the power OFF, and remove the battery
pack. (p. 3)
w Remove the unit cover.
NOTE: Use a flat head screw driver or a similar flat instru-
ment, and insert into the hollow of the chassis, then lift and
take away the unit cover. (The removed cover cannot be
used again.)
e Install the unit as shown below.
r Replace the unit cover and the battery pack, then rotate [VOL]
to turn the power ON.
NOTE: The optional UT-109/UT-110
some PC board modifications. Please refer to the additional in-
stallation as at right.
18
OPTIONAL UNIT INSTALLATION
*This illustration is
described with
the UT-110.
scrambler units
requires
