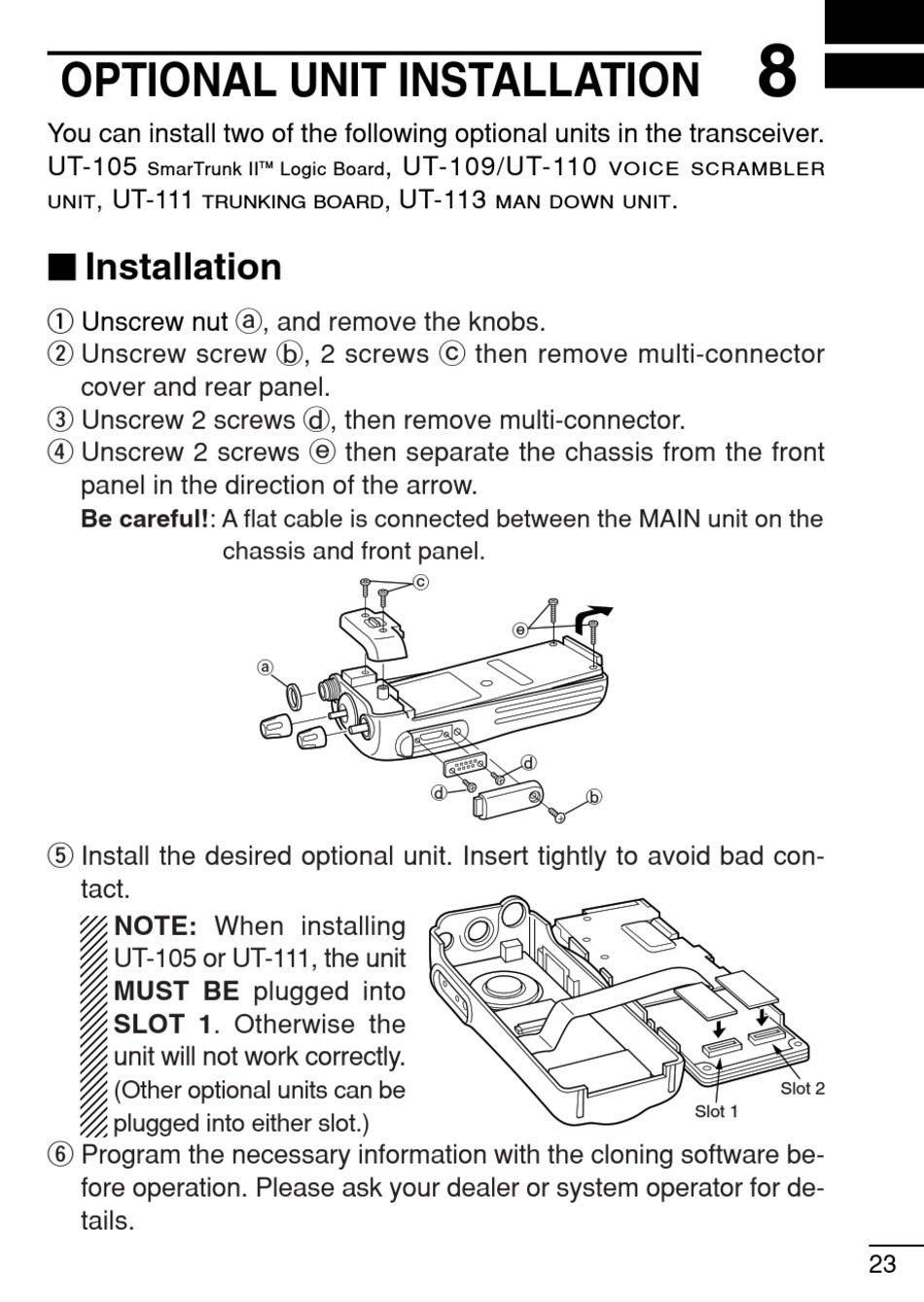

OPTIONAL UNIT INSTALLATION

You can install two of the following optional units in the transceiver.
UT-105
SmarTrunk II
UT-111
,
UNIT TRUNKING BOARD

' ' Installation

q Unscrew nut
w Unscrew screw b, 2 screws c then remove multi-connector
cover and rear panel.
e Unscrew 2 screws d, then remove multi-connector.
r Unscrew 2 screws e then separate the chassis from the front
panel in the direction of the arrow.
Be careful!: A flat cable is connected between the MAIN unit on the
chassis and front panel.
t Install the desired optional unit. Insert tightly to avoid bad con-
tact.
NOTE: When installing
UT-105 or UT-111, the unit
MUST BE plugged into
SLOT 1. Otherwise the
unit will not work correctly.
(Other optional units can be
plugged into either slot.)
y Program the necessary information with the cloning software be-
fore operation. Please ask your dealer or system operator for de-
tails.
, UT-109/UT-110
TM Logic Board
UT-113
,
a, and remove the knobs.
a
MAN DOWN UNIT
c
e
d
d
b
8
VOICE SCRAMBLER
.
Slot 2
Slot 1
