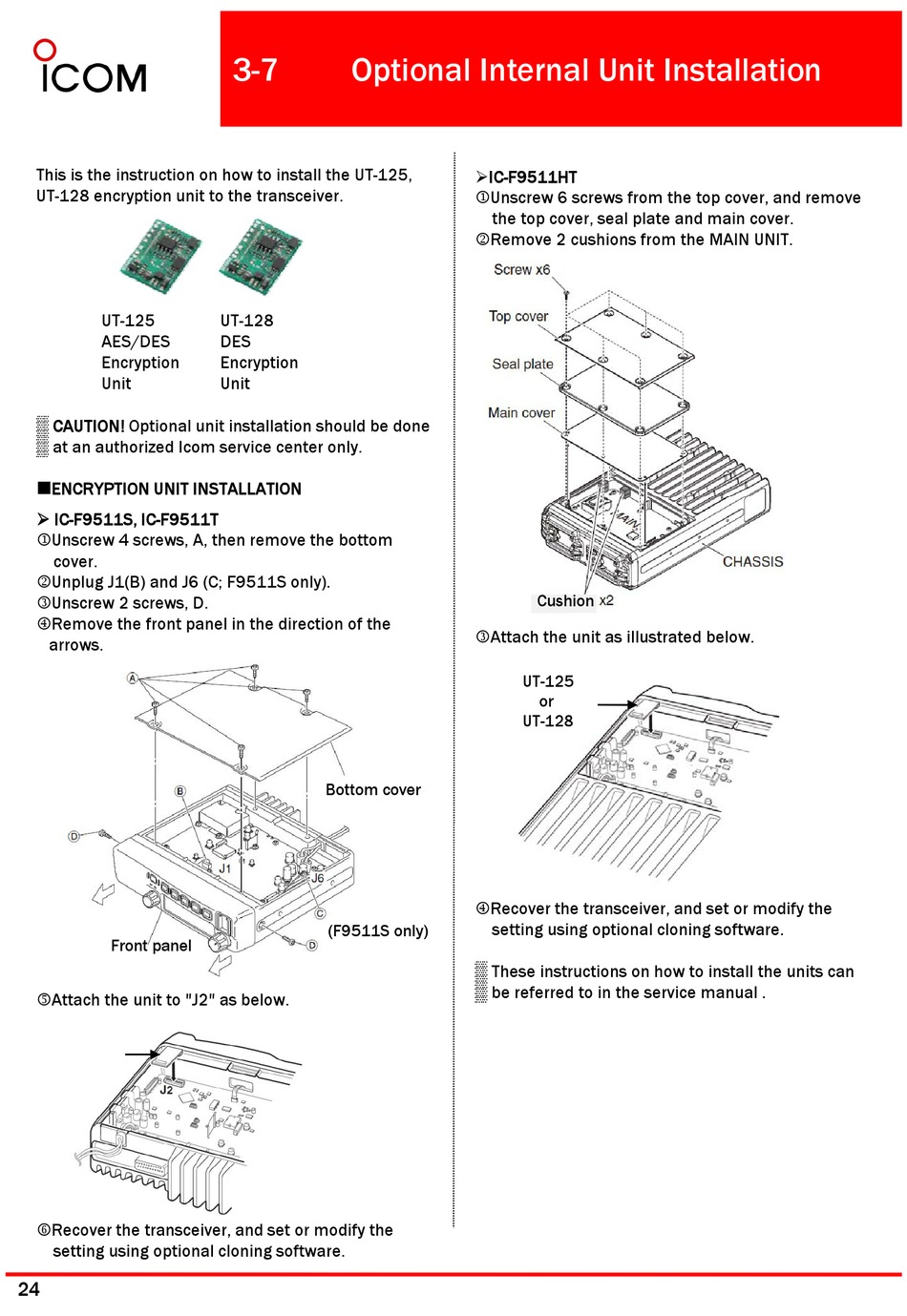

This is the instruction on how to install the UT 125 This is the instruction on how to install the UT-125,
UT-128 encryption unit to the transceiver.
UT-125
AES/DES
Encryption
Unit
▒ CAUTION! Optional unit installation should be done
▒ at an authorized Icom service center only.
ENCRYPTION UNIT INSTALLATION
IC-F9511S, IC-F9511T
1Unscrew 4 screws, A, then remove the bottom
cover.
2Unplug J1(B) and J6 (C; F9511S only).
3Unscrew 2 screws, D.
4Remove the front panel in the direction of the
arrows.
Front panel
5Attach the unit to "J2" as below.
6Recover the transceiver, and set or modify the
setting using optional cloning software.
24
3-7

Optional Internal Unit Installation

UT-128
DES
Encryption
Unit
Bottom cover
(F9511S only)
IC-F9511HT IC F9511HT
1Unscrew 6 screws from the top cover, and remove
the top cover, seal plate and main cover.
2Remove 2 cushions from the MAIN UNIT.
Cushion
3Attach the unit as illustrated below.
UT-125
or
UT-128
4Recover the transceiver, and set or modify the
setting using optional cloning software.
▒ These instructions on how to install the units can
▒ be referred to in the service manual .
