Install Replacement Power Core

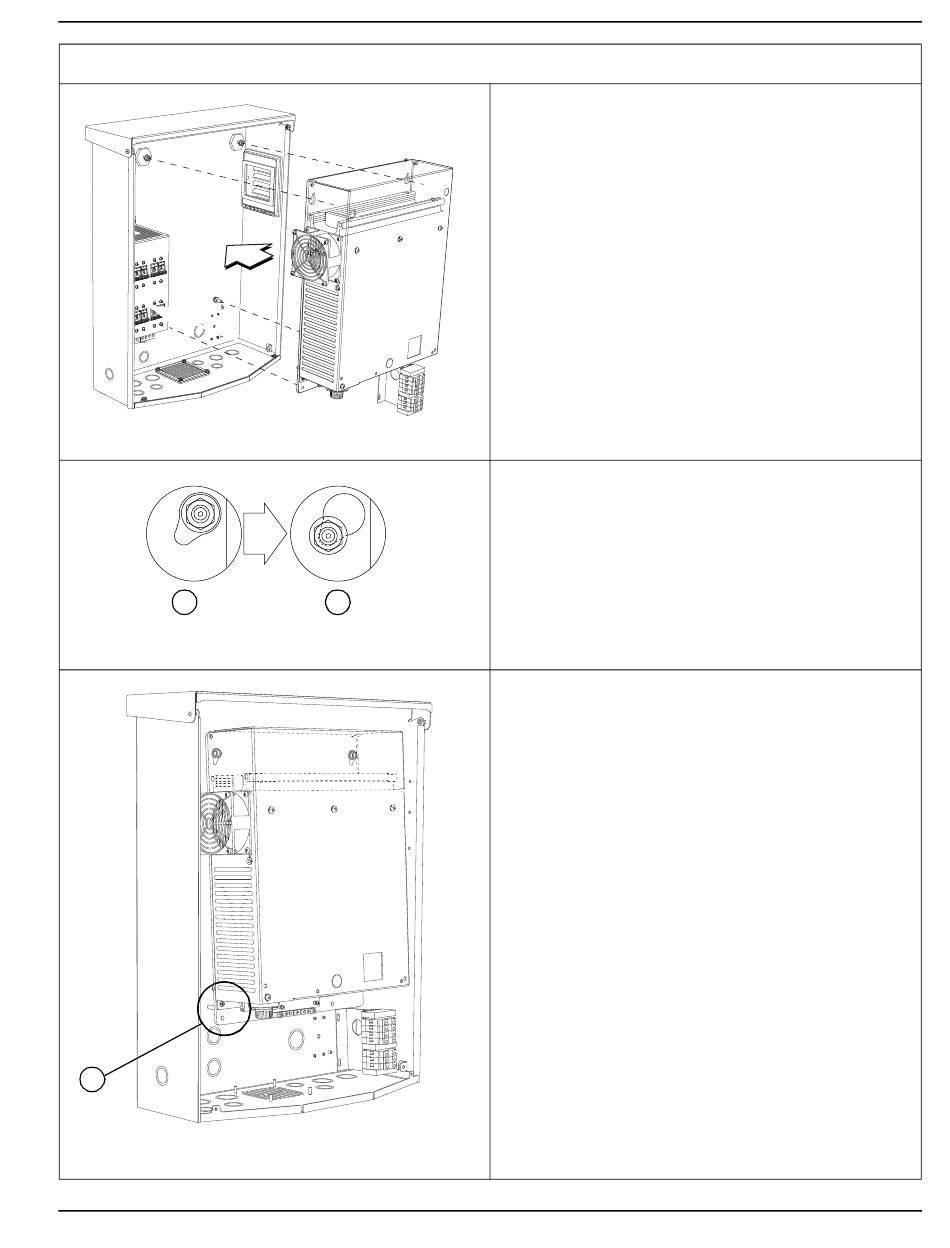

Figure 10-12.
1
Figure 10-13.
L
Figure 10-14.
Diagnostic Repair Manual
013121
NOTE: Align the clearance holes to slide over the nuts.
2
013122
NOTE: The bottom studs will NOT be aligned with the
bottom holes in the Power Core (L).
013123
Section 10 PWRcell Power Core Replacement
Raise replacement Power Core into the enclosure
1.
over the top studs.
Position bottom of Power Core as close to vertical
2.
as possible.
