Figure 12-4.
Figure 12-5. Remove Fasteners
Diagnostic Repair Manual
013138
A
B
013112
Section 12 DC Breaker Assembly Replacement

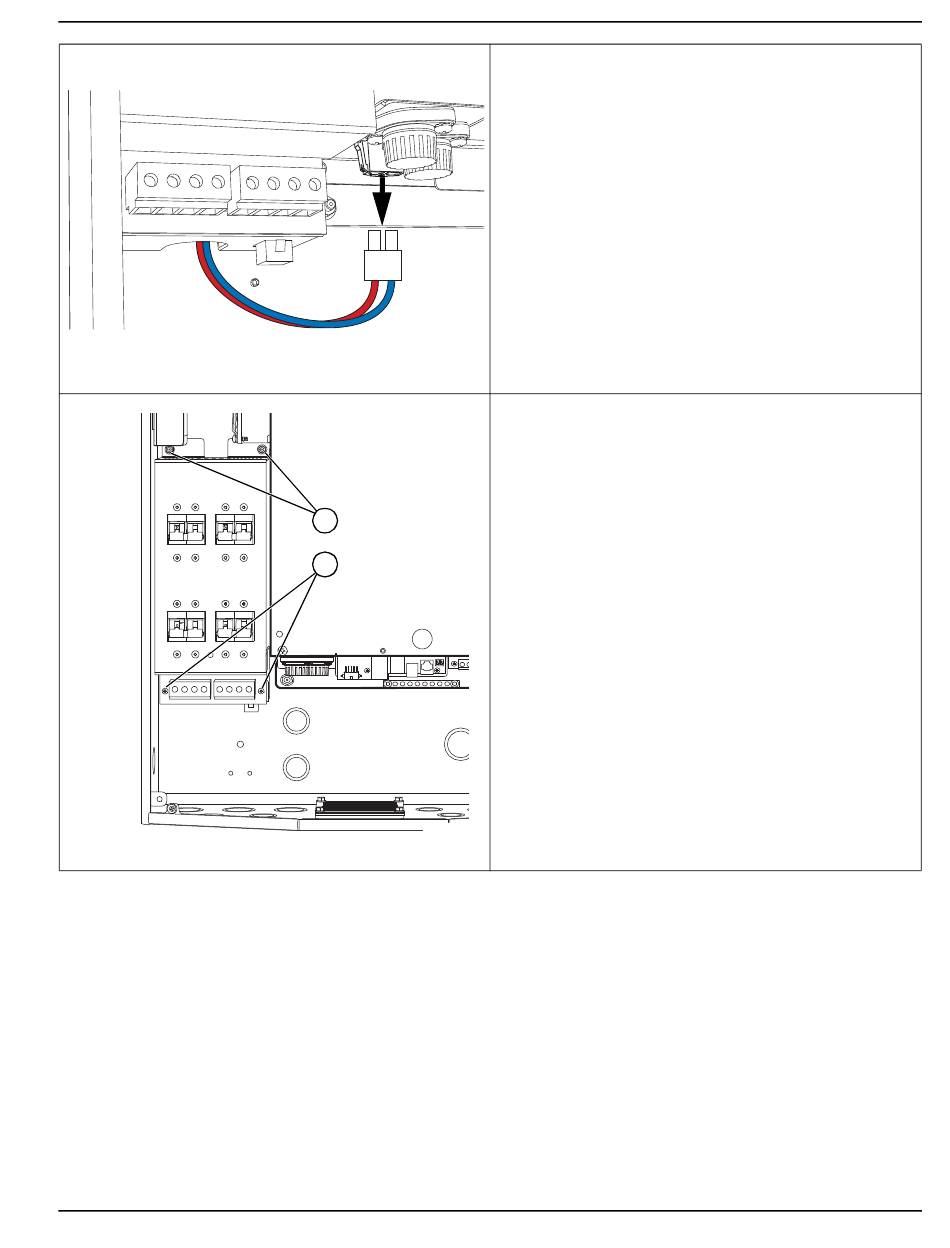

2. Disconnect DC wiring connector from Power Core.
NOTE: This connector is a plug with red and blue wires
coming from the DC breaker assembly to the Power
Core.
3. See Figure 12-5. Remove the indicated fasteners:
•
TOP (A): QTY 2 - 7 mm nuts
•
BOTTOM (B): QTY 2 - Phillips head screws (No.
1)
NOTE: Do NOT remove Phillips head screws from the
face of the assembly baffle.
NOTE: Retrieve any dropped fasteners. Do not attempt
to use other screws or nuts as replacement fasteners.
