PWRcell Battery
Section 7

Device Profile

The Generac PWRcell Battery is a DC-coupled lithium-ion battery system. The Battery Management Unit (BMU)
provides the interface between the battery modules and REbus, moving power to and from the battery modules
depending on the selected system mode, the available solar power, and the AC load demand at the inverter. In the
event of a grid outage, the battery will maintain the DC bus and provide backup power to the inverter while continuing
to be able to charge from available solar energy.
A
B
C
D
E
F
G
Diagnostic Repair Manual
G
H
011991

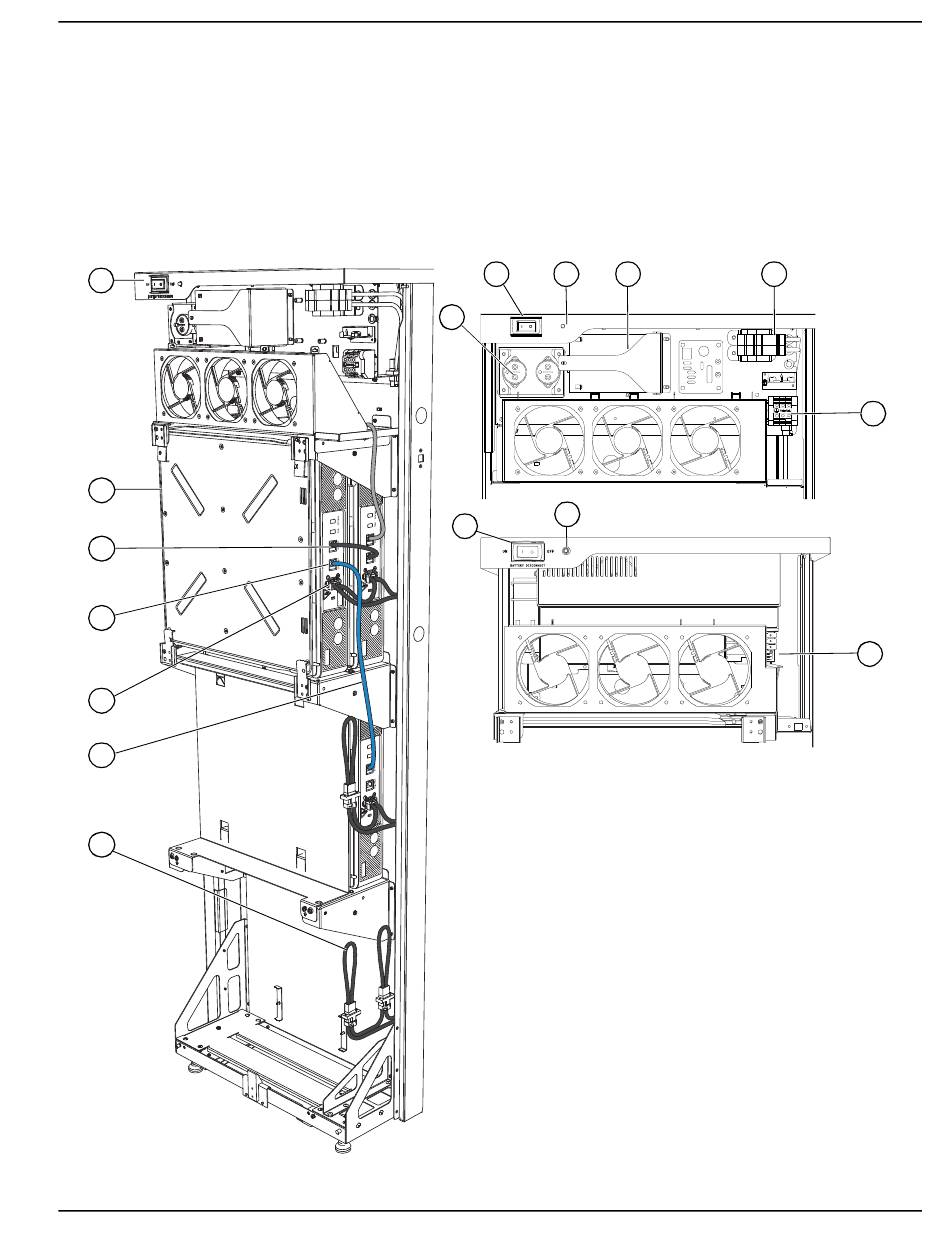

Figure 7-1. PWRcell Battery Component Locations
H I J
ON OFF
BATTERY DISCONNECT
I
Battery Cabinet Components
A Battery Disconnect Switch
B Battery Module
C Comm In Port
Comm Out Port
D
E Battery Power Cable
Battery Communications Cable
F
G Looped Jumpers
Battery Management Unit (BMU)
G Contactors
H Battery Disconnect Switch
I Battery Status LED
Black Start Battery
J
K Battery Fuse Blocks
L REbus Terminals

Section 7 PWRcell Battery

K
L
011992
L
013517
