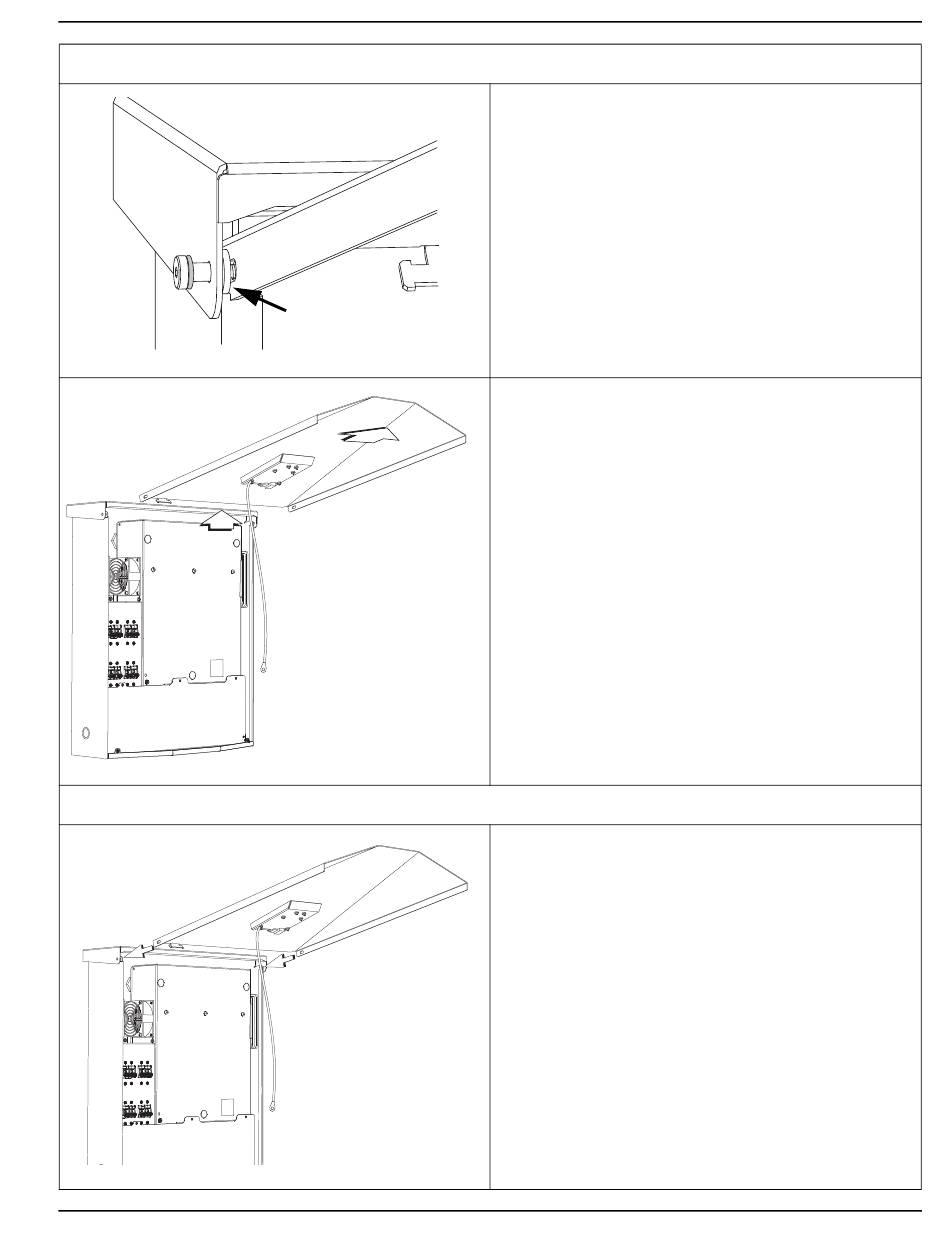

Removing Lid

Figure 11-7.
Figure 11-8.

Installing New Lid

Figure 11-9.
Diagnostic Repair Manual
Section 11 PWRcell Inverter Lid Replacement
Use a 2.5 mm Hex driver to loosen the two pivot
1.
bolts.
Remove the two pivot bolts.
2.
NOTE: Be careful to not lose the plastic spacer between
the inverter housing and lid.
013132
The lid is now ready to be removed.
Lift the lid slightly and pull away from the inverter
3.
housing.
013133
Lift the new lid into place in the inverter housing.
1.
013134
