PWRcell Power Core Replacement
Section 10

Overview

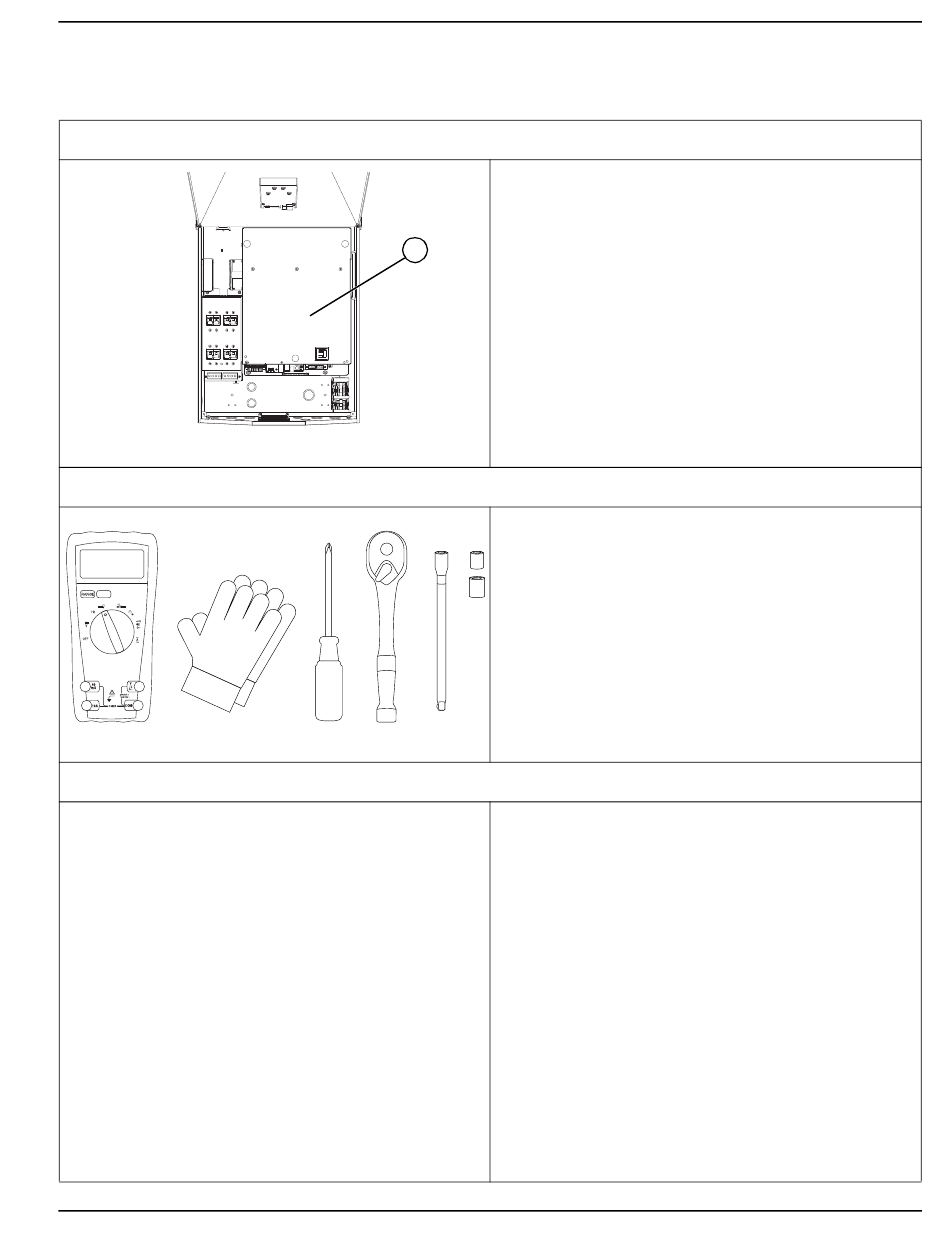

Figure 10-1.

Required Tools

Figure 10-2.

Before You Start

Inverter Mod. Settings Values
PLM Channel: _________
TargMaxImprtP: _________
TargMinImprtP: _________
EnaIslanding: _________
NumTransSwtchs: _________
ExtTransVolt: _________
ExportOverride: _________
CalOverride: _________
CTTurnsRatio: _________
EnaLoadShed: _________
GridParInvrtrs: _________
ACPVPower: _________
GenPower: _________
GenCtrlMode: _________
Diagnostic Repair Manual
See
the PWRcell inverter.
A
013112
Required Tools:
1.
2.
3.
4.
5.
NOTE: 7 mm and 10 mm nut drivers with 6" or longer
shaft (¼") are also suitable for use.
013113
Navigate to the Mod. Settings page and retrieve inverter
set points. Record these values to program the new
(default = 1)
Power Core. Additionally, if Utility Interconnection
(default = 0)
Standard is not IEEE 1547 (Ex. Rule 21, Rule 14H, etc),
(default = 0)
this will need to be set up on the new Power Core after
(default = off) replacement.
(default = 0)
(default = 95.0V)
(default = off)
(default = off)
(default = 1500)
(default = 0)
(default = 0)
(default = 0)
(default = 0)
(default = 0)

Section 10 PWRcell Power Core Replacement

Figure 10-1. Replace the power core unit (A) within
Digital multimeter (DMM)
Cloth/other protective hand wear
Slotted head screwdriver — 6 mm
Phillips head screwdriver — No. 2
Ratchet — ¼" drive with 6" or longer extension, 7
mm and 10 mm sockets (see Note)
