Section 9 Other Accessories

Electrical Specifications

Input Voltage
Current Rating
Locked Rotor Amp Rating 240A
Motor Rating
Contactor Coil Voltage

Enclosure Specifications

UL Rating
Type 3R
Temperature
-30 to 50 deg C (-22 to 122 deg F)

Connections

H
G
I
A
B
J
E
F

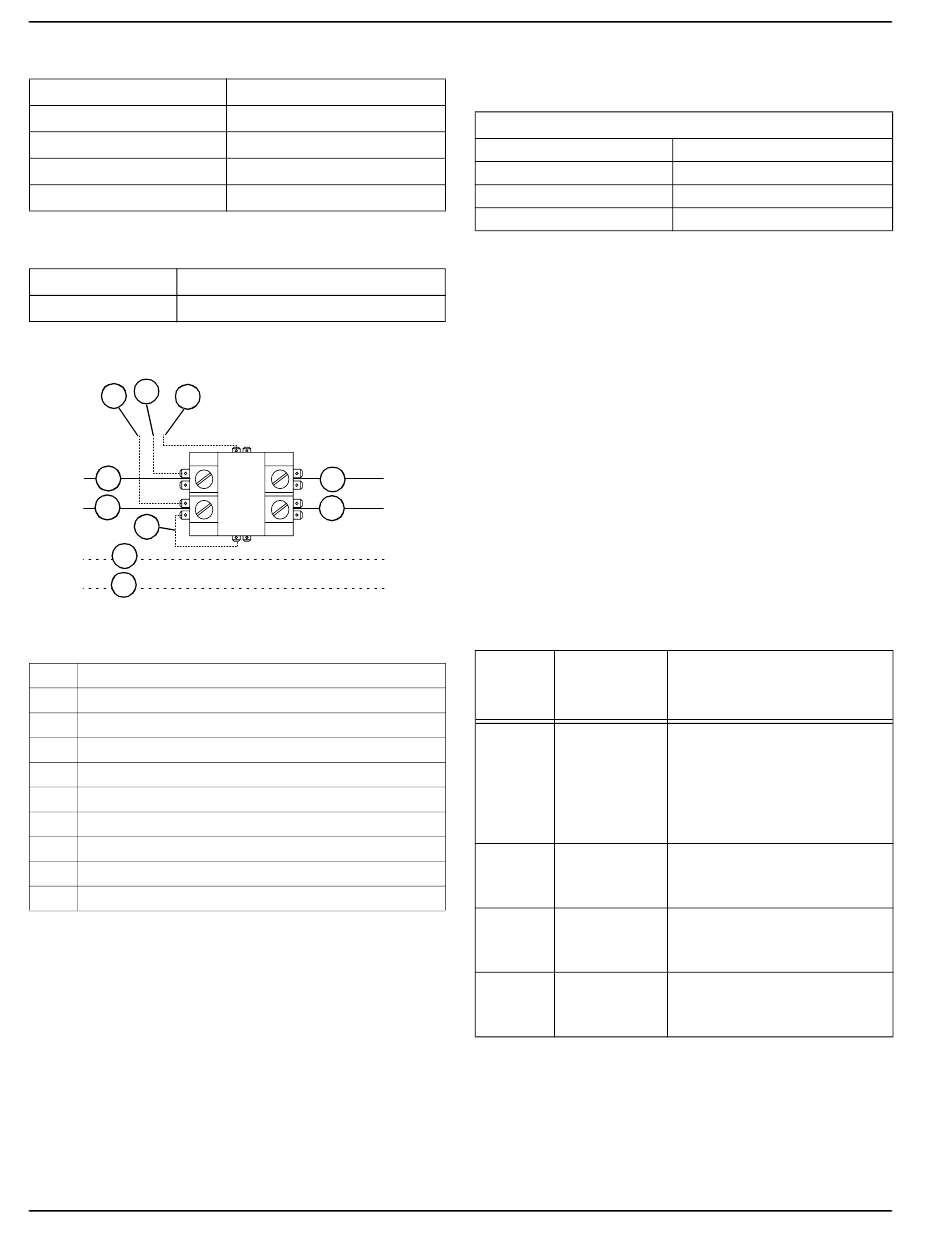

Figure 1-1. Smart Management Module Connections
A
Red (240 VAC - Line)
B
Black (240 VAC - Line)
C
Red (240 VAC - Load)
D
Black (240 VAC - Load)
E
White - Neutral (as required)
F
Green - Ground (as required)
G
Black - Factory (PCB)
H
Red - Factory (PCB)
I
Blue - Factory (PCB)
J
Blue - Factory (Jumper)

Setting Priorities

High priority 240 VAC loads should be set to the highest
priorities so those loads recover first in the event of
generator/inverter
overload.
NOTE: The highest priority, and first load to activate is
Priority 1. The last load to activate is Priority 8.
Setting priority determines timing for 3 scenarios:
Order in which loads recover
Delay time until power returns during an outage
Delay time for post load shed recovery
80
240 VAC
50A resistive, 40A inductive
3 HP
240 VAC
C
D
000108
An example configuration is shown in
Configurations
will
vary
prioritization of loads.
Table 1-2. Typical SMM Configuration
Priority 1 - Baseboard heat
Priority 2 - Air conditioner
Priority 3 - Range
Priority 4 - Clothes Dryer
1. Set the priority of each SMM module as desired
(using the example configuration for reference).
2. Apply priority decal in a suitable location on
electrical
panel
designations.
3. Record priorities on decal.

Setting Lockout

Early, Normally Open Contactor
Most installations will require the lockout switch to be
DISABLED. When performing a whole house backup
with a generator/PWRcell system not sized to manage all
household loads, SMM's can be used to disable
appliances or circuits during an outage. For non-essential
loads that will not be used on generator or inverter power,
set lockout switch to ENABLED.
Table 1-3. Lockout Switch Settings (Early, Normally
Open Contactor)
Lockout
Switch
Mode
Position
GENERATOR
ON
INVERTER
ON
UTILITY
GENERATOR
OFF
INVERTER
OFF
UTILITY
NOTE: Early Version: When lockout switch is engaged
and running on generator, module will start in load shed
mode. After approximately 1 minute of run time the
module will enter lockout mode. When utility returns while
in lockout mode, the module will delay for 2 minutes
before returning to load shed mode. After a 4 minute
timer expires the load will be activated.
Table
depending
on
customer
Priority 5 - Non-essential circuits
Priority 6 - Pool pump or hot tub
Priority 7 - Other circuits
Priority 8 - Other circuits
to
record
chosen
priority
Function
If overloaded, module sheds
load until utility returns.
Contactor is OPEN.
NOTE: Early version goes into
lockout mode. Load is never
activated until Utility returns.
Power is available on module
output (contactor output).
Contactor is CLOSED.
Module operates with standard
load shed logic. Contactor is
OPEN or CLOSED per logic.
Power is available on module
output (contactor output).
Contactor is CLOSED.
