Generac Power Systems 02010-2, 04164-2 Owners And Installation Manual

Generac air-cooled recreational vehicle generator owner's manual
Hide thumbs Also See for 02010-2, 04164-2:
Table of Contents

Advertisement

Quick Links

See also: Installation & Owner's Manual
POWER SYSTEMS, INC.

Installation Instructions

Owner's Manual and
Air-cooled Recreational
Vehicle Generators
• Model: 02010-2

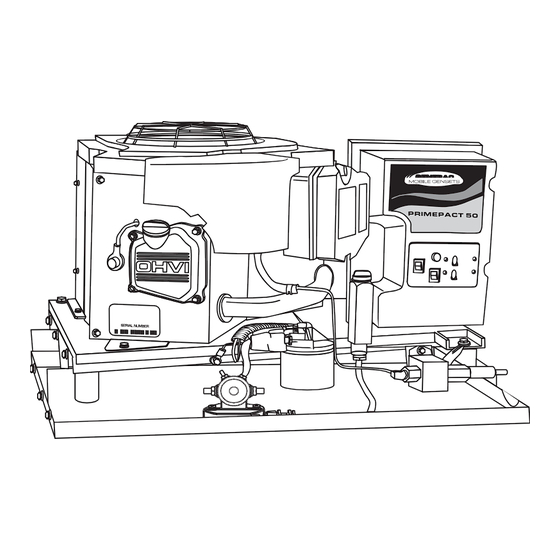

PRIMEPACT 50
• Model: 04164-2
PRIMEPACT 50LP
®
