PWRcell ATS Controller Example

Follow the sequence of operation when an overload condition occurs on example Priority Circuit 3. After a 30 minute
timer expires, Priority 3 is activated. All priorities will remain active if the current load is still OK.

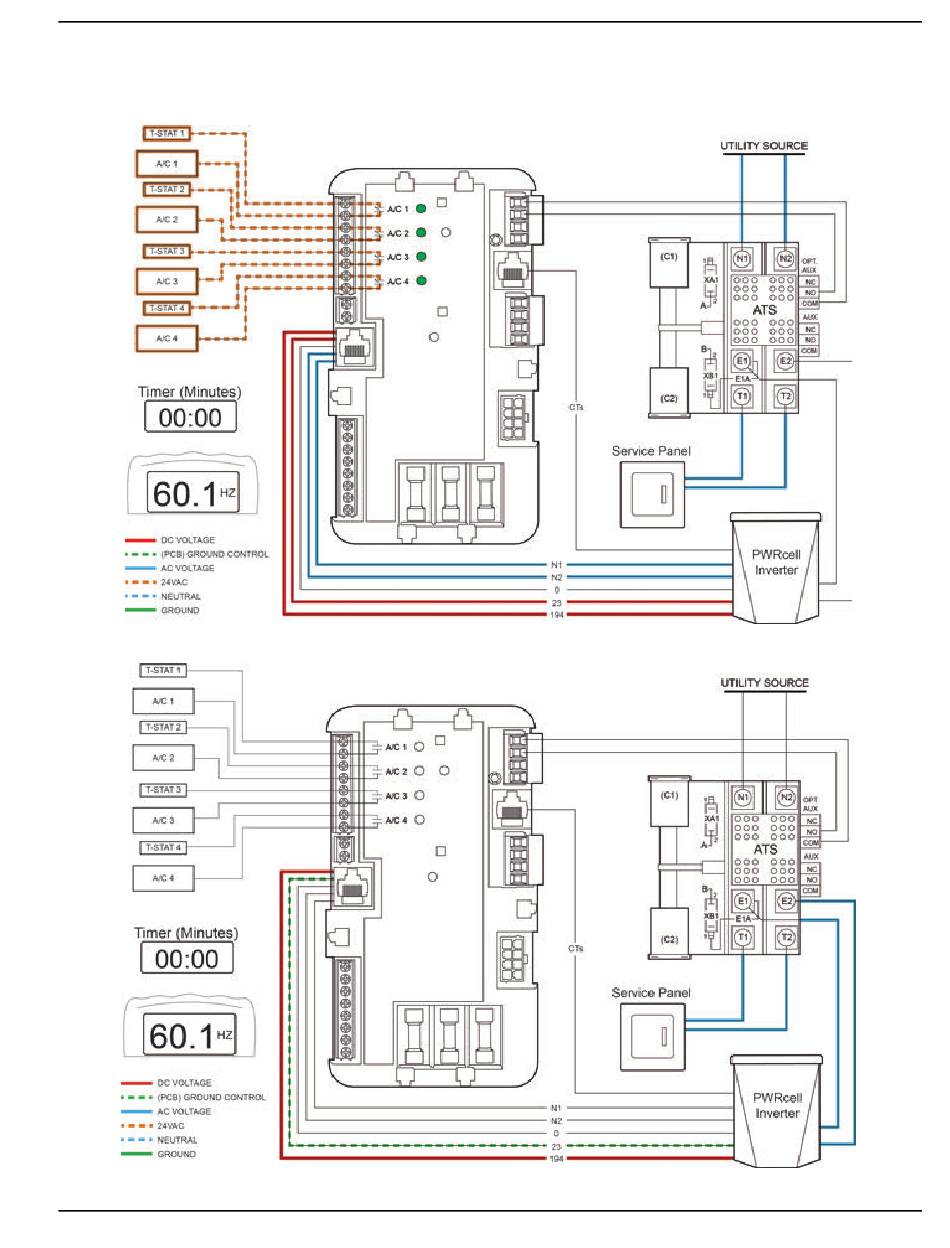

Figure 8-23. Loss of Utility Power - All Priorities Disabled, Inverter Supplying Power
Diagnostic Repair Manual
Figure 8-22. Utility Power Present - All Priorities Enabled
Section 8 PWRcell ATS
013166
013167
63
