V-Type Transfer Switch with PWRcell ATS Controller with AC Generator ONLY (NO Inverter) – No
Transfer to Standby
DANGER
Electrocution. High voltage is present at
transfer switch and terminals. Contact with live
terminals will result in death or serious injury.
NOTE: The transfer switch mechanism is still in the utility
position.
Diagnostic Repair Manual

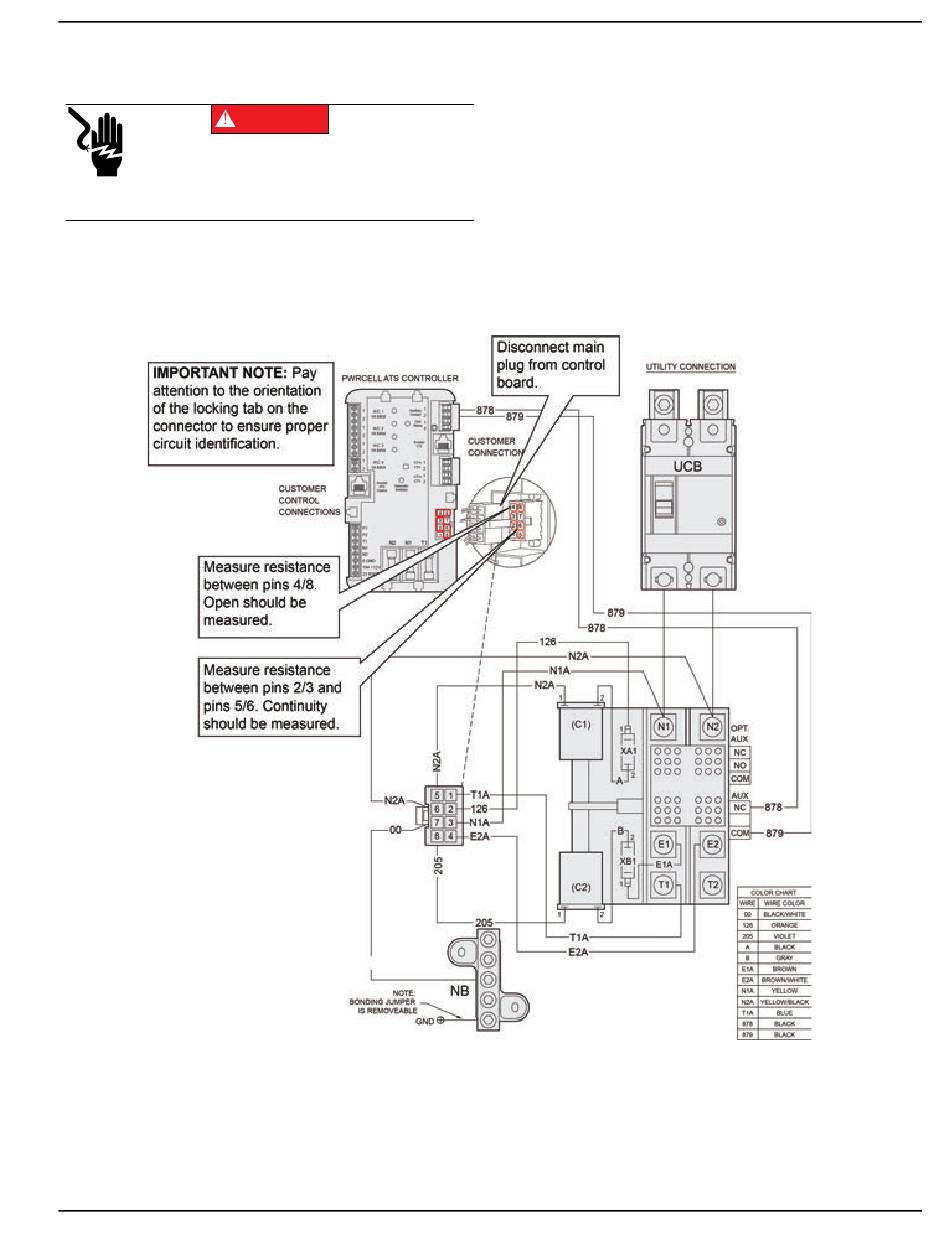

1. Disconnect the main connector on the control
board.
2. With the board not energized (Wire 23 NOT
grounded) measure resistance between pins 2 and
3, and between pins 5 and 6. Continuity should be
measured.
(000129)
3. With the board not energized (Wire 23 NOT
grounded) measure resistance between pins 4 and
8. Open (OL) should be measured.
Figure 8-40.
Section 8 PWRcell ATS
013405
73
