Section 8 PWRcell ATS
Operational Analysis – Inverter Only Configuration
Utility Source Voltage Available – Inverter Only Configuration

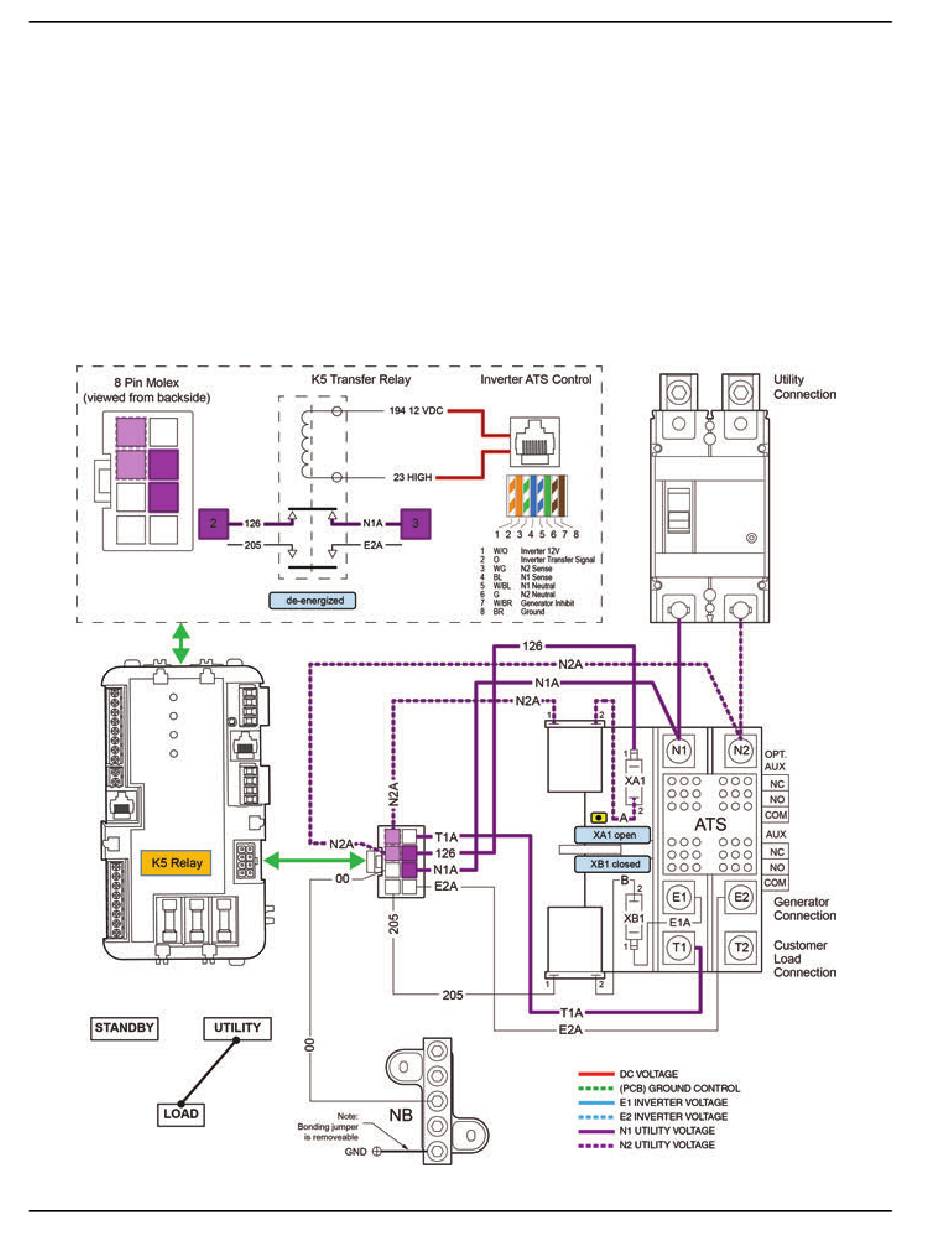

Figure 8-7 shows the Switch is in the UTILITY position and utility source voltage is available.
•
Rated utility source voltage is available to the transfer switch terminal lugs N1 and N2 through sensing wires to
the ATS controller through the CAT5 wire to the inverter.
•
Utility voltage is available from N2 to Terminal N2A of the transfer switch.
•
Utility voltage is available from N1A to the normally closed contact of the internal transfer relay (TR). From the
transfer relay it continues on through Wire 126 to the now open contact of the XA1 limit switch.
